License Plate Bulb: Service and Repair

944419 Removing And Installing Bulb For Number Plate Light

Removing bulb for number plate light

Removing number plate light

ATTENTION: Danger of damage to property if bulbs are used or handled incorrectly.
- Risk of damage to bulbs and bulb housing.
- Switch off ignition and remove ignition key.
- To prevent short circuits, the load in question must be switched off while changing bulbs.
- Only bulbs specified in the bulb table may be used.
- Bulbs with a higher wattage may damage the bulb housing.
- New bulbs must be clean and free of grease. Therefore, never touch the bulbs with your bare hands. Use a cloth or soft paper when changing bulbs.
- In certain states, it is compulsory to carry spare light bulbs.

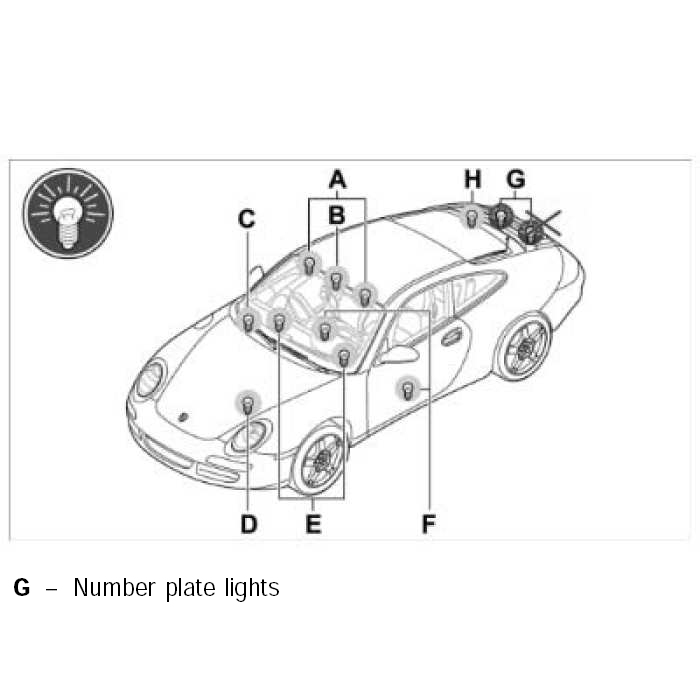

Overview Of Number Plate Light, Shown On The 911:

1. Unscrew the two fastening screws and remove the number plate light.

Removing Number Plate Light, Shown On The 911:

Removing bulb for number plate light
1. Remove defective bulb from between the contact springs.







Installing bulb for number plate light

NOTE: Only use the relevant bulb specified in the bulb table.

1. Insert new bulb into the contact springs.

Installing Bulb For Number Plate Light:

Installing number plate light

Number Plate Light Overview:

1. Insert number plate lights and tighten with the two fastening screws.

Installing Number Plate Light:
