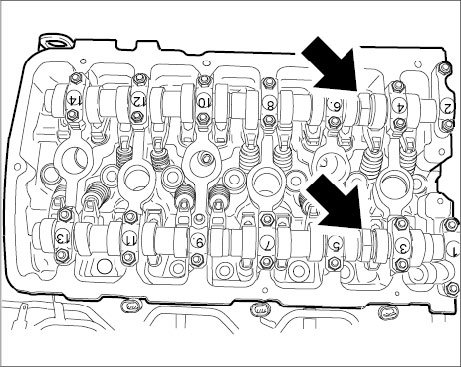

Camshaft Bearing
Bearing cover to cylinder head M7 x 45 Tightening torque 10 Nm (7.5 ftlb.) +2 Nm (+1.5 ftlb.)
Bearing cover to cylinder head M7 Initial tightening 5 Nm (3.5 ftlb.)
Bearing cover to cylinder head Torque angle 45°
Bearing cover to cylinder head M7 x 45 Tightening torque 10 Nm (7.5 ftlb.) +2 Nm (+1.5 ftlb.)
Bearing cover to cylinder head M7 Initial tightening 5 Nm (3.5 ftlb.)
Bearing cover to cylinder head Torque angle 45°
