Rear

WM 474119 Removing and installing rear brake calliper





Preliminary work

1. Raise the vehicle.
2. Remove wheel.

Removing rear brake calliper

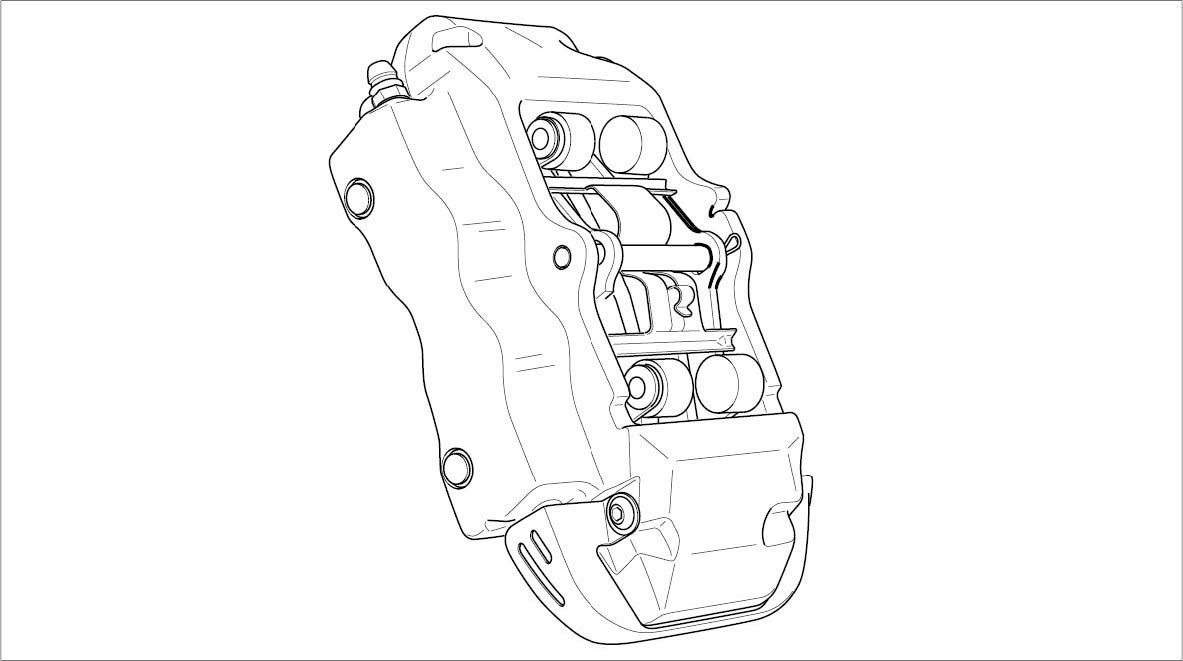

Brake calliper

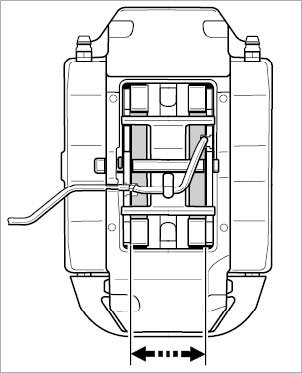

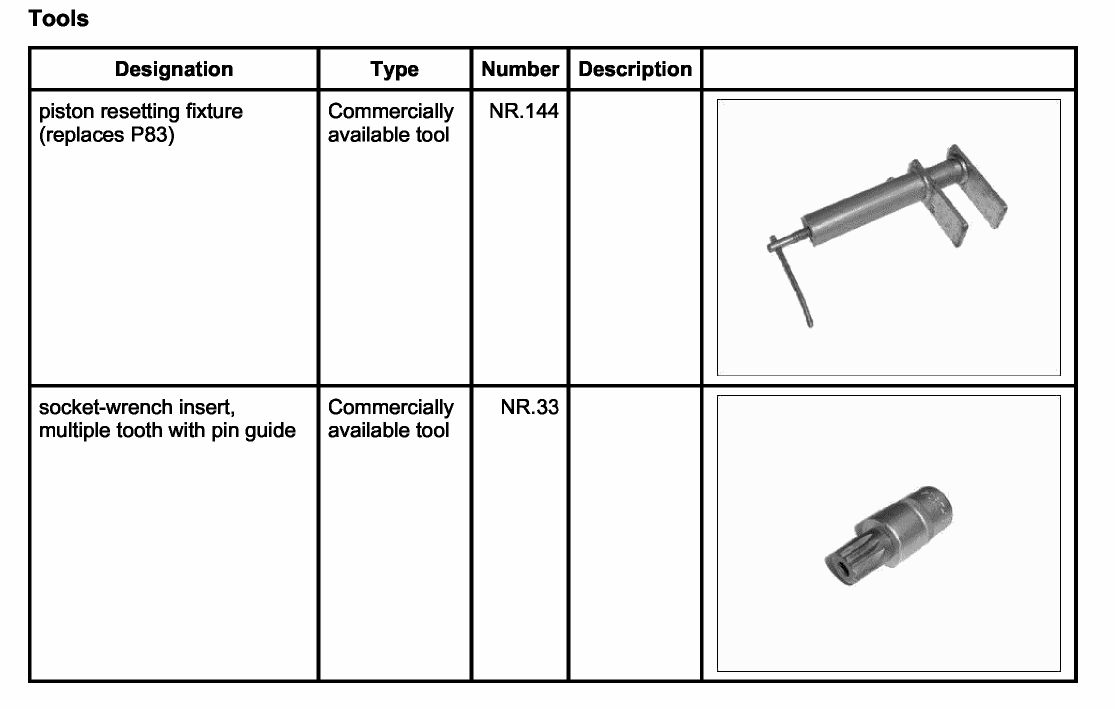

1. Push brake pad back slightly and evenly with piston resetting fixture (replaces P83) NR.144, -direction arrow-.

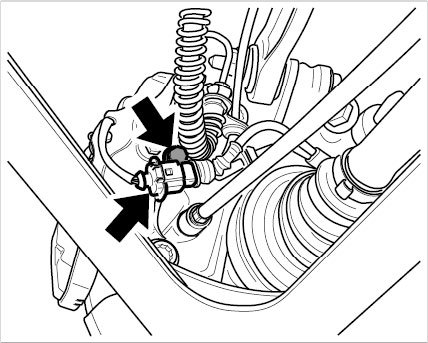

2. Release and unclip the connector on the wear indicator -arrow-.





3. Remove cable holder for the brake line and wear indicator -arrow-.

Information:
Never use an impact bolter to loosen and tighten the brake calliper on the wheel carrier.

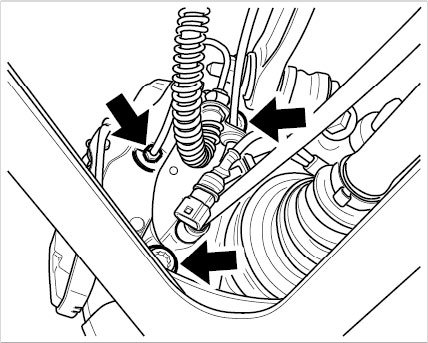

4. Loosen the brake line on the brake calliper -arrow- and collect brake fluid in a suitable container. Close off the line with a suitable plug. Remove the brake calliper from the wheel carrier using a socket-wrench insert, multiple tooth with pin guide NR.33 (-arrows-).





Installing rear brake calliper

Information:
Replace screws and lock nuts.
Never use an impact bolster to loosen and tighten the brake calliper on the wheel carrier.
Pay attention to tightening torques.

The brake calliper is installed in reverse order.

1. Fit the brake calliper.
2. Fit the brake line and cable holder.
3. Clip in connector for wear indicator.
4. Position disc brake pads by operating the brake several times.

Subsequent work

1. Bleed the brake system.
2. Mount wheel.
