A/C Evaporator - Hose Clamp To Prevent Cracking
87saab04FILE IN. S.I. Man VOL. I
SEC. A-8 PG. 104
Service Information
SUBJECT: AC HOSE CLAMP TO PREVENT EVAPORATOR ISSUE: 06/87-970 CRACKING
APPLICATION: 900 MODELS WITH "H" ENGINE, M81-

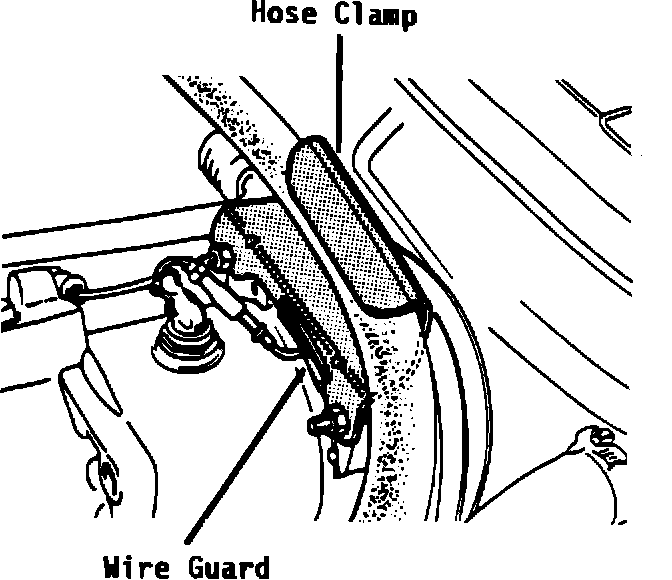

When replacing an AC evaporator due to cracking, always install the new AC Hose Clamp 94-81-961 in place of the original clamps. The new clamp reduces the level of engine vibration that can be transmitted to the evaporator. Certain models (those equipped with the SeikoSeiki compressor) also require the addition of a wire guard beneath the clamp to protect against wire chafing.
Hose 94-81-961
Wire Guard* 75-35-487
*Seiko-Seiki compressor only.
Before replacing an evaporator that is suspected of being cracked, always check the integrity of the expansion valve (copper tube evaporator only). Replacement of an expansion valve is simpler and more economical than replacing the entire evaporator.
From the following VIN Serial Nos., the new clamp was also introduced into new car production:
H2013351- H3013076- H7018819-
