Fuse Panel/Fuses - New Style Fuses
83saab01SUBJECT:
NEW FUSE PANEL AND FUSE TYPE, M84
ISSUE: 09/83-640
FILE IN S.I. MANUAL:
VOLUME: I
SECTION: 3
PAGE: 70
Beginning with M84, a new fuse panel and fuse type have been introduced. The new fuse is of the "blade" type.

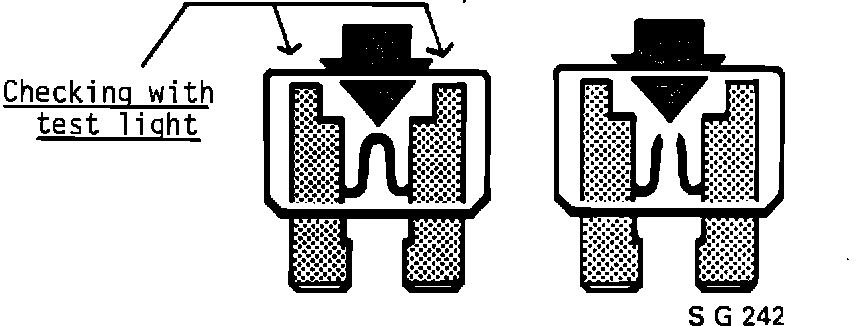

All fuses are in color coded transparent plastic so the fuse element is protected from oxidation yet visible through the body. A fuse that has been subjected to current overload Will have a broken element (fuse must be removed to check condition). Fuses may also be checked with a test light (circuit switched on) at the two openings at the top of the fuse (see arrows).
A fuse removal tool is supplied with each car and is located in the fuse panel itself between the fuses and the relays. Use this tool to remove a fuse. When replacing the fuse, be sure that it is seated firmly into its slot.
NOTE! 1. Do not attempt to repair a broken fuse.
2. Do not replace a blown fuse with one of higher amperage. Check for the source of the problem.
Ampere Rating Color Saab P/N
7.5A Brown *02 61 461
10A Red 79 74 637
15A Light Blue 79 74 645
20A Yellow 79 74 652
25A White 79 74 660
30A Light Green 79 74 678
*This fuse is found at the back of the SAAB/Clarion Radio.
