Battery Cable - Rubber Protector Installation

86saab01

FILE IN. S.I. Man VOL. III

SEC. MEMOS PG.
Service Information

TSB-6-016

October 3, 1986


ATTENTION: SAAB SERVICE MANAGER

Dear Service Manager:

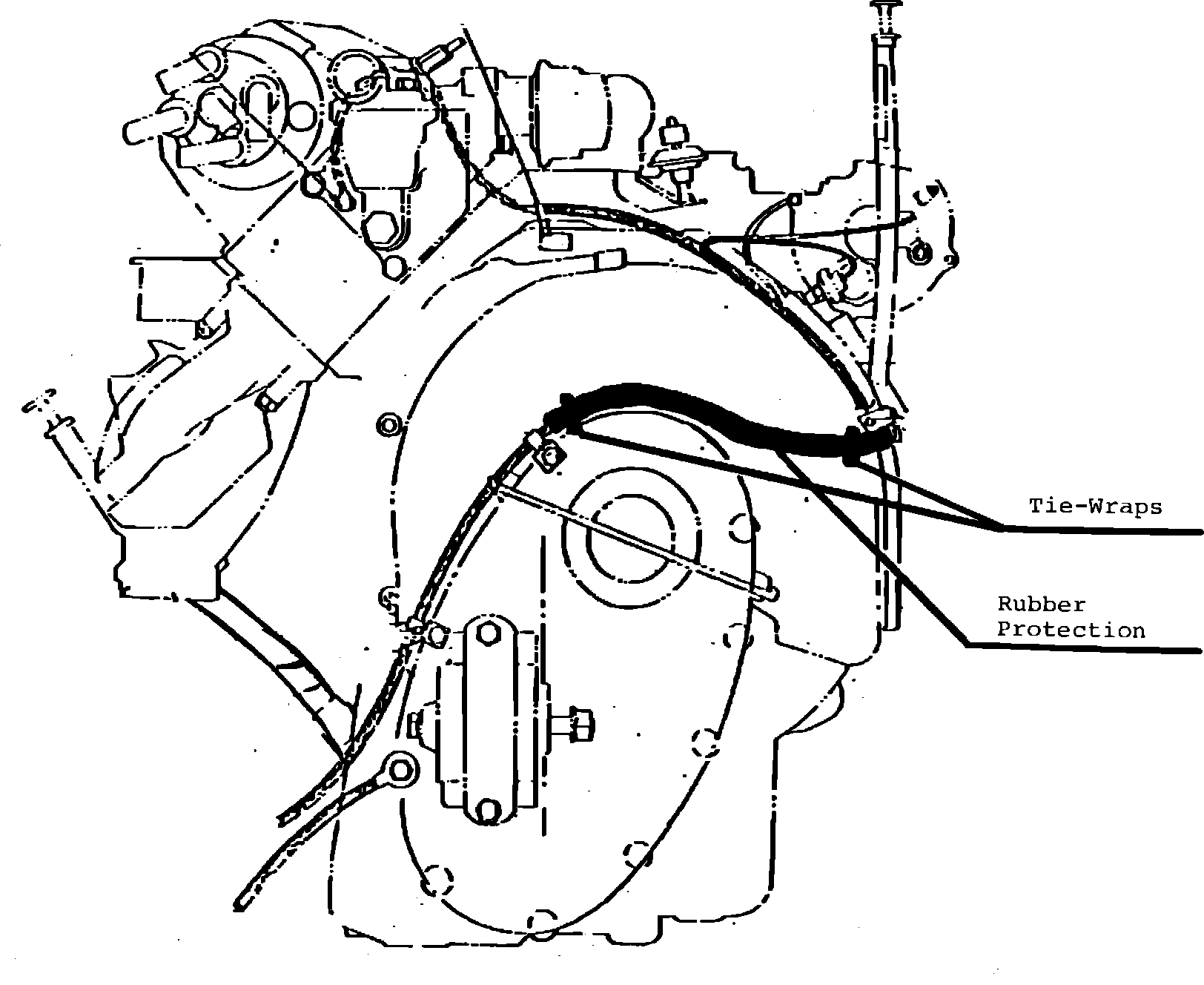

The following 1987 Saab 900 automatic listed below was produced without rubber protection on the B+ cable. Your dealership took delivery of this car and we ask that you install the rubber protection (included with this mailing) on the B+ cable with two tie-wraps (not supplied). The enclosed drawing shows the positioning of the rubber protection.
Please perform this operation under warranty, preferrably at the PDI or at the next service. (Please use Failure Code 31112-03-0-06-05 and Labor Op. #31112 for 0.3 hour.).

VIN Serial No.:


Thank you for your cooperation.
