Steering Gear: Diagrams

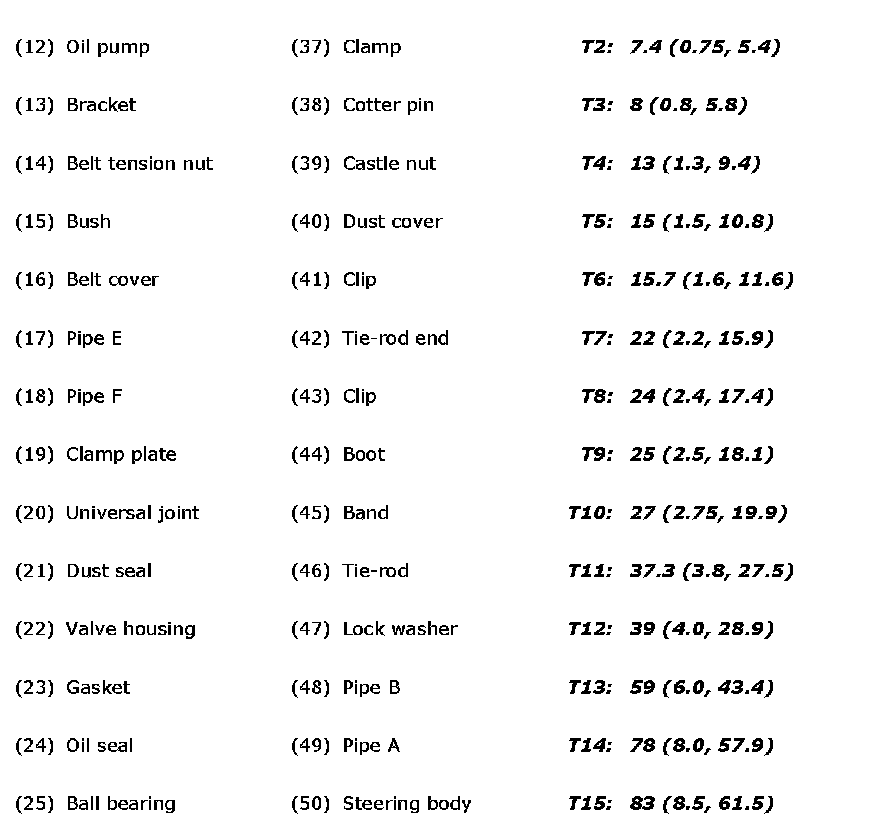

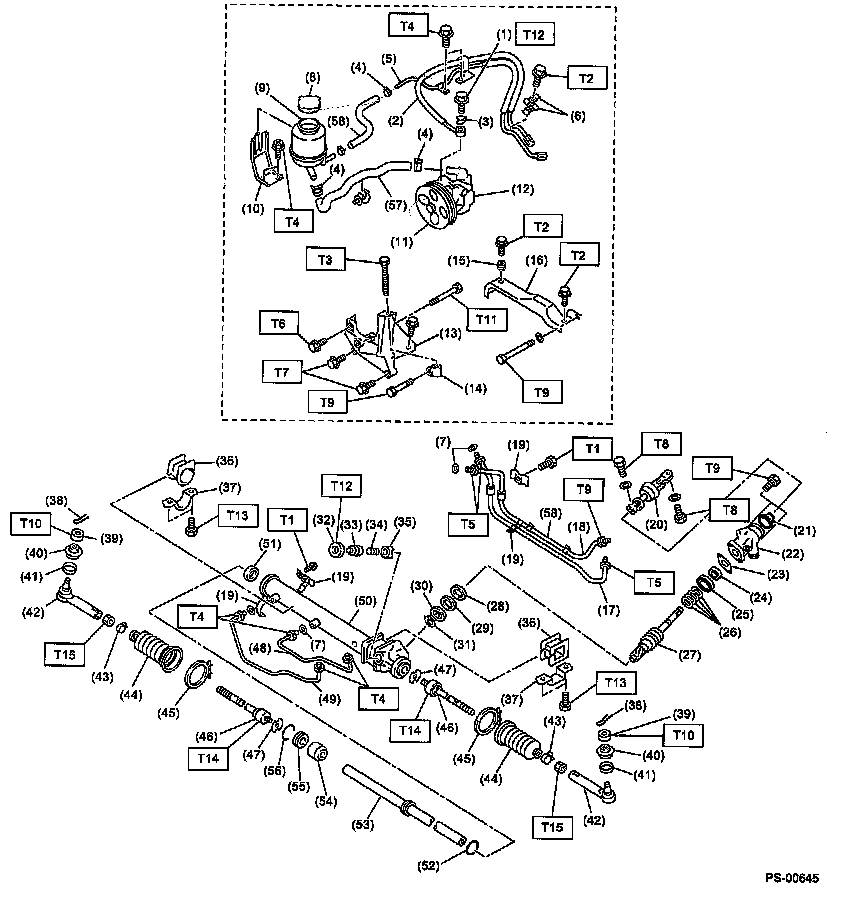

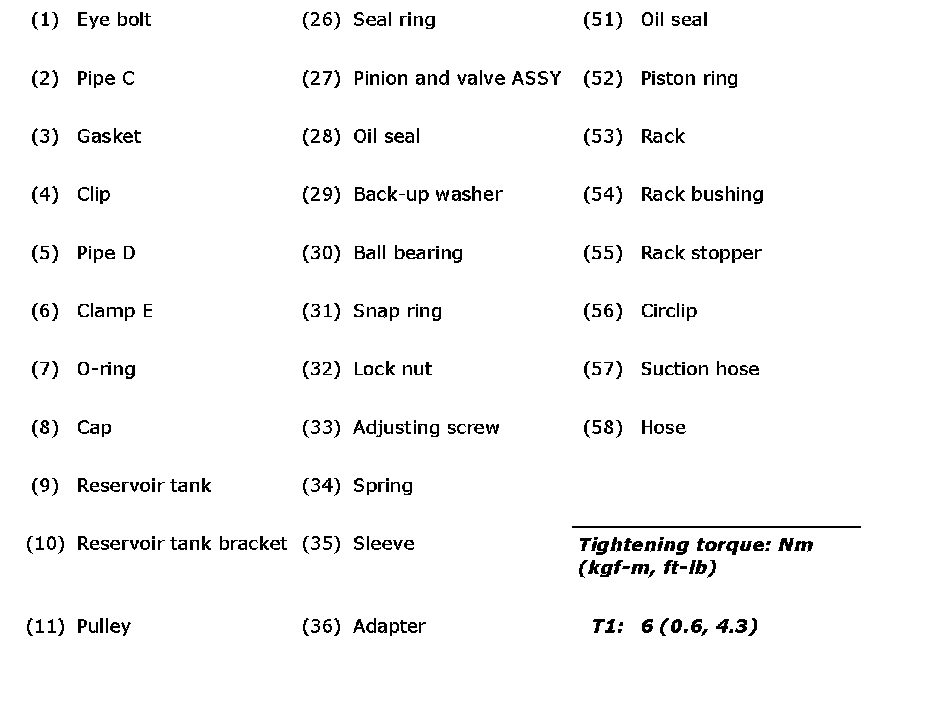

Power Assisted System (Part 1):

Power Assisted System (Part 2):

Power Assisted System (Part 3):
