C175

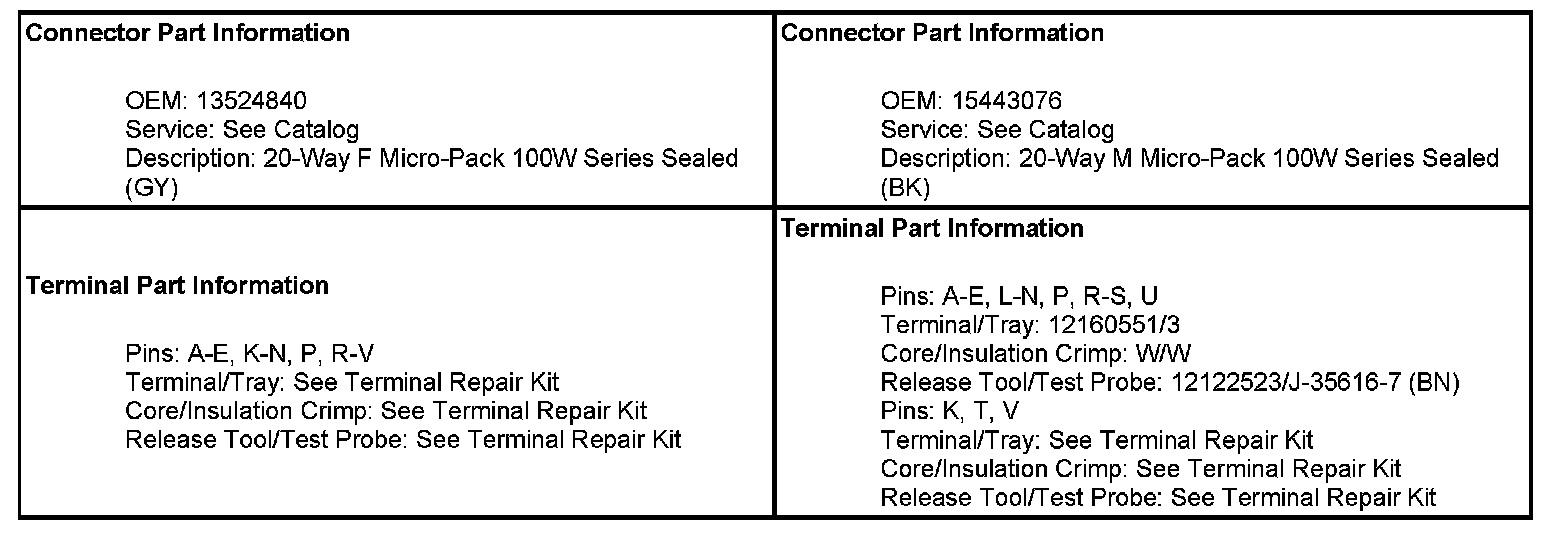

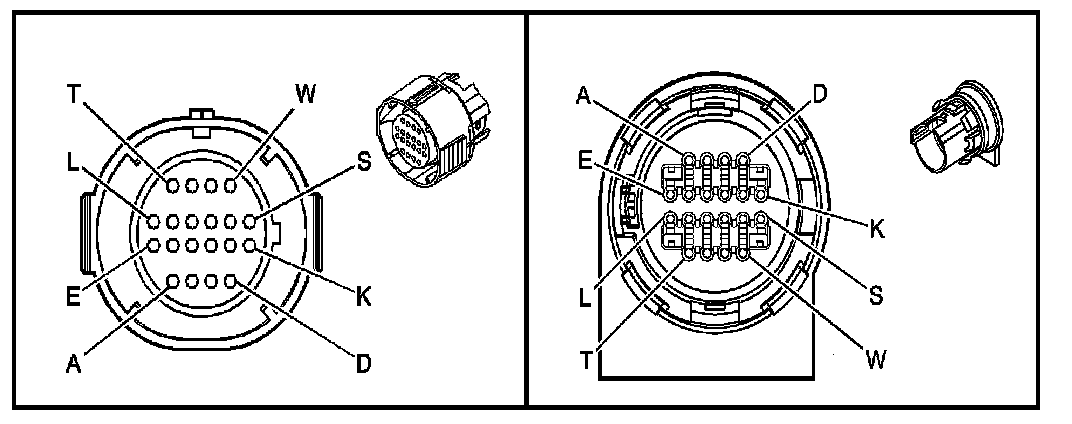

Inline Harness Connector End Views

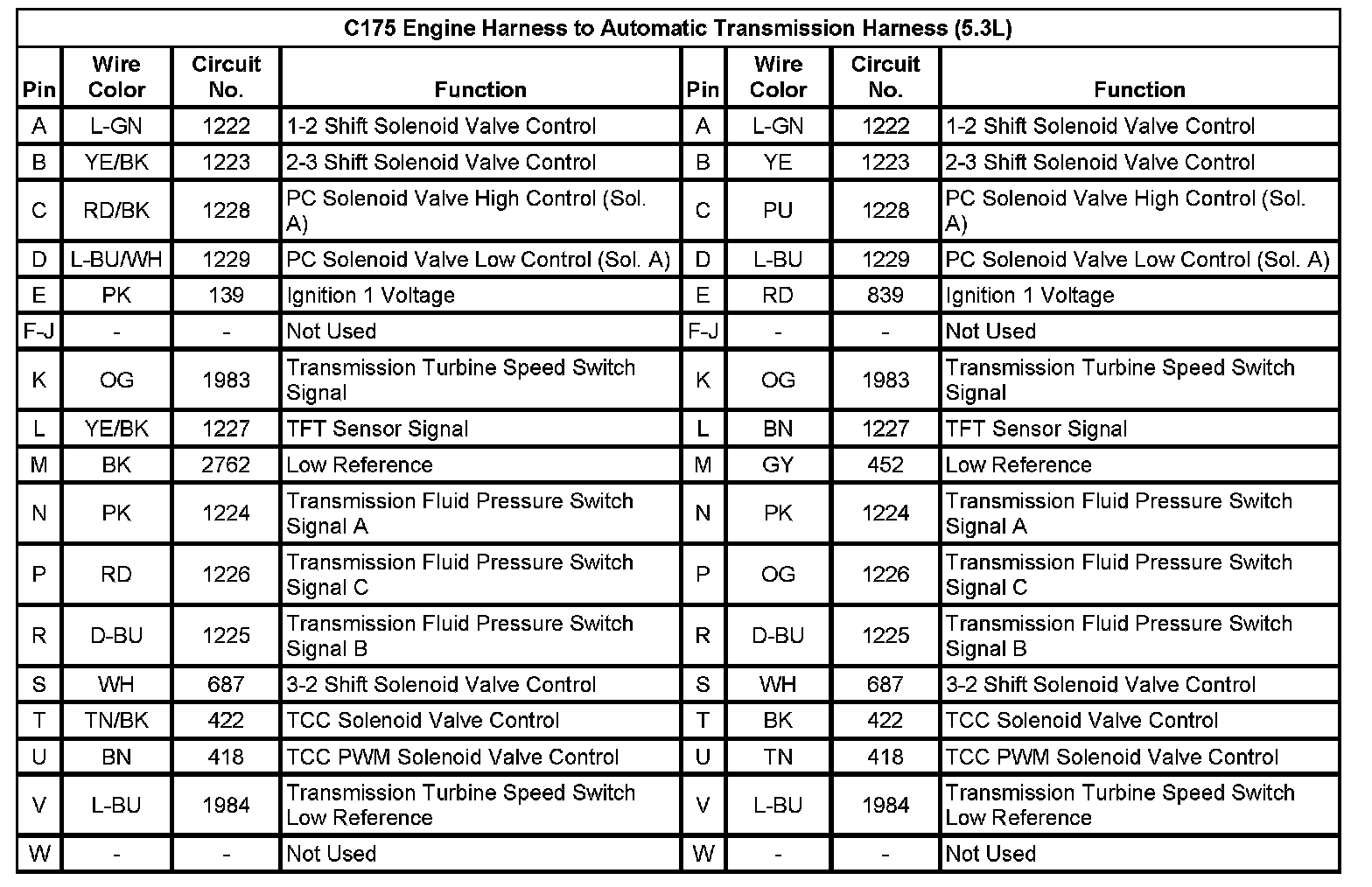

C175 Engine Harness to Automatic Transmission Harness (5.3L)
