Valve Body Installation

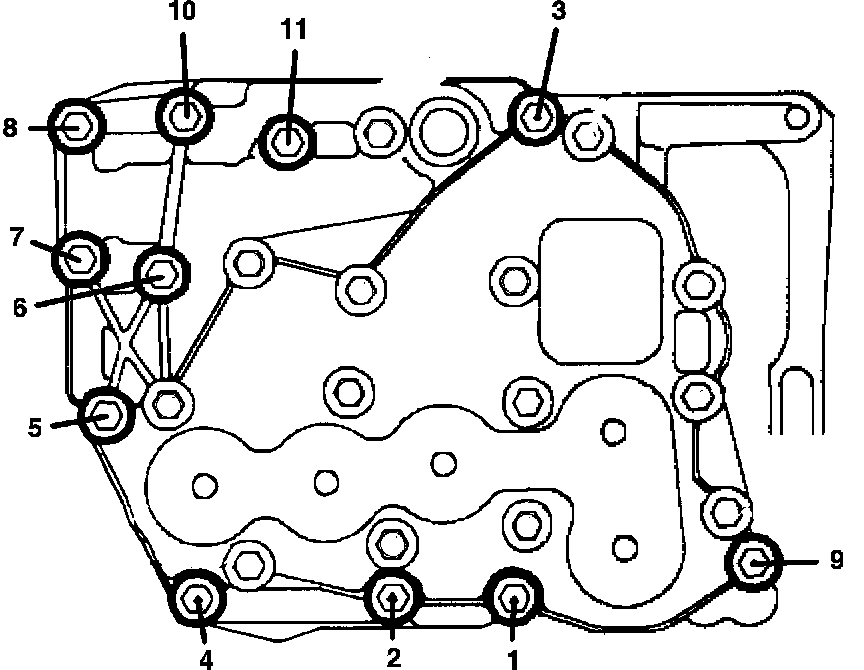

Tightening Sequence:

Tightening Sequence

Air Induction Tubes:

Air Induction Installation

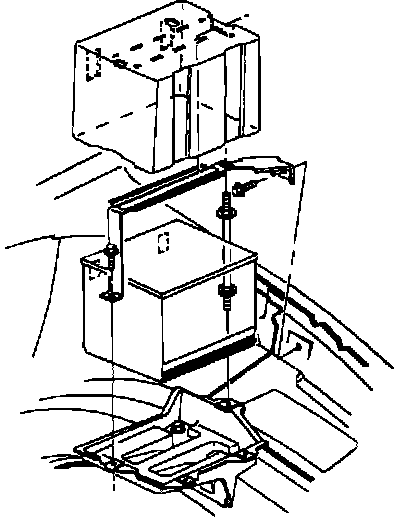

Battery Compartment:

Battery Installation

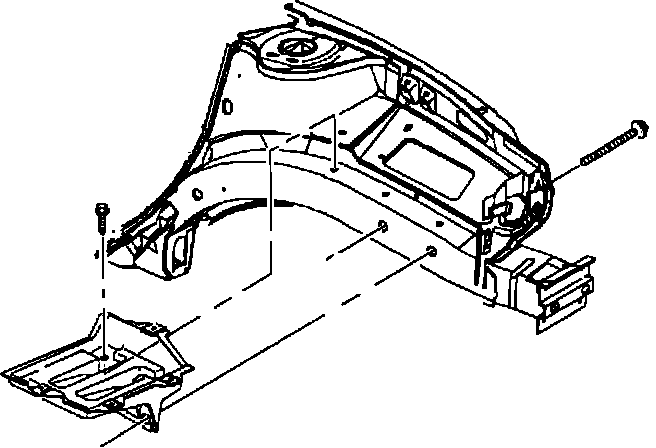

Battery Tray Removal:

Battery Tray Installation

Transaxle Connectors:

Transaxle Connector

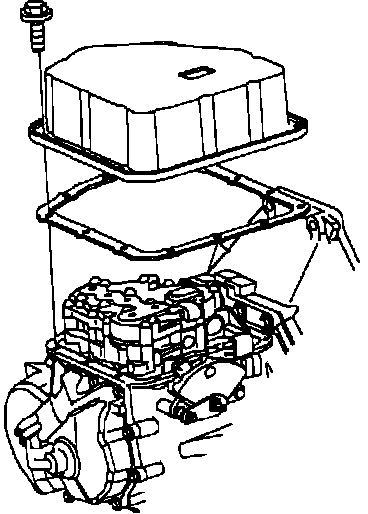

Valve body Cover:

Valve Body Cover




1. Orient the manual valve to the manual link with the flat or notch on the manual valve facing up.

IMPORTANT: There was a change to the manual valve links in 1994. The link changes from a stamped form to a one piece wire form link. The end of the link that attaches to the manual valve was also made thicker. Care should be used to ensure that the correct link is used. The two links are not interchangeable.

2. Lower valve body and insert manual link into manual valve.

IMPORTANT: The valve body-to-case bolts must be placed in the valve body prior to installation.

3. Install and finger tighten valve body-to-case bolts first. This procedure must be followed to assure valve body is properly aligned to the case.

NOTICE: Clean and lubricate fasteners with ATF fluid. Wipe off excess fluid and install.

4. Torque valve body-to-case bolts using torque sequence shown in the illustration.

Torque: 11 Nm (97 in lbs)

NOTICE: Over-tightening bolts can cause valves to bind.

5. Clean valve body cover gasket surface with carburetor cleaner or equivalent, applied with a shop towel.

6. Set valve body cover gasket in place and instal valve body cover.

7. Torque valve body cover bolts using torque sequence.

Torque: 10 Nm (88 in lbs)

8. Install and torque master cylinder-to-booster nuts, if required.

Torque: 27 Nm (20 ft lbs).

9. Connect transaxle connector.

10. Torque transaxle connector bolt.

Torque: 3 Nm (27 in lbs).

NOTICE: Do not over-tighten or damage to the connector plate may occur.

11. Install battery tray.

12. Torque battery tray bolts.

Torque: 10 Nm (89 in lbs).

IMPORTANT: Two bolts are located in the fender well.

13. Install battery.

14. Install battery shield.

15. Torque battery shield bolts.

Torque: 9 Nm (80 in lbs).

16. Install air induction box.

17. Connect battery terminals

IMPORTANT: It will be necessary to reset the transaxle adaptives before driving vehicle. Resetting Adaptive Parameters
