Left Hand Drive

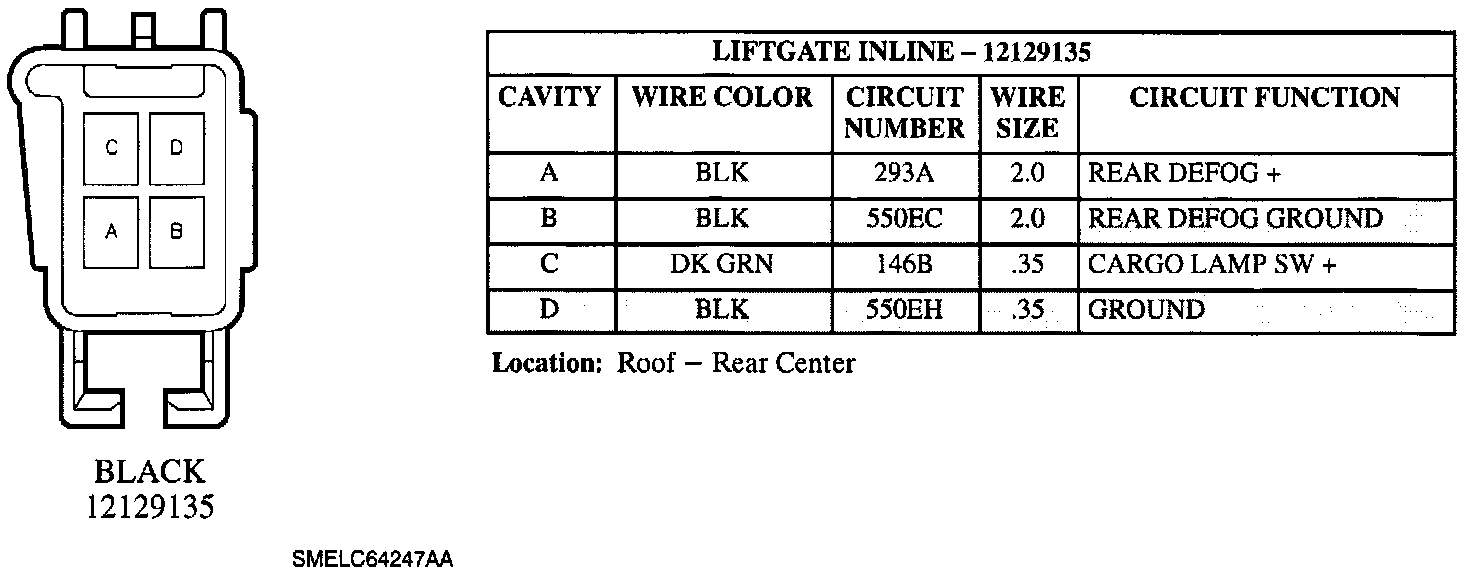

Liftgate Inline - Liftgate Harness:

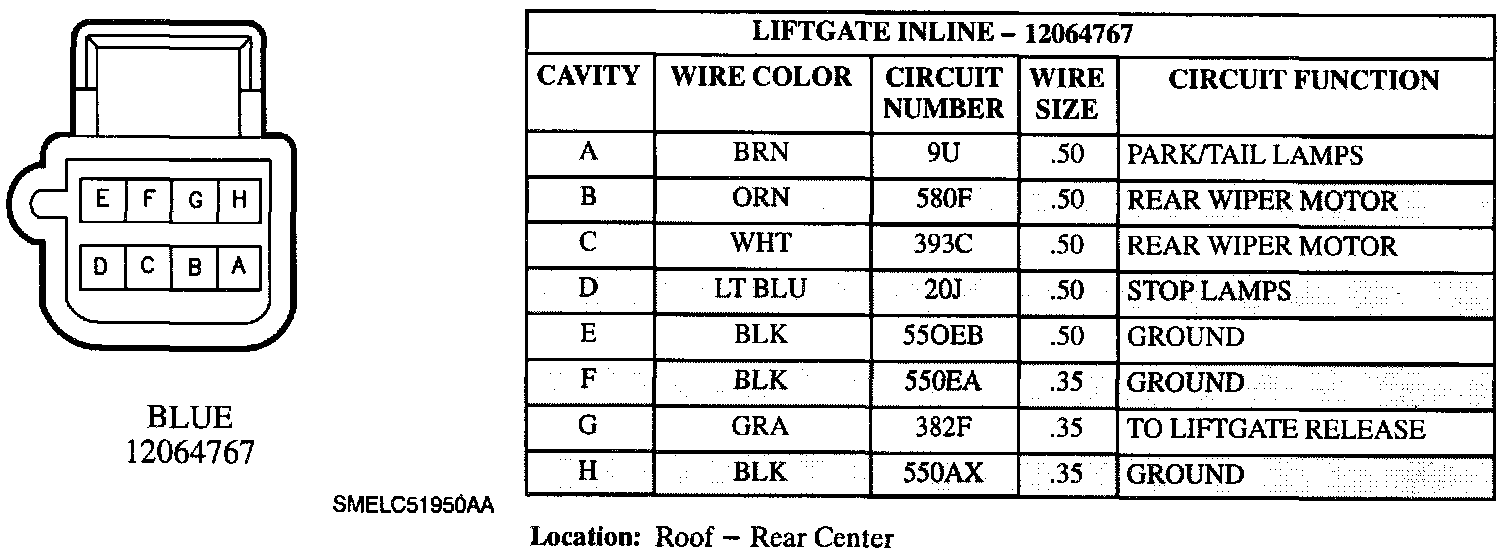

Liftgate Inline - Liftgate Harness:

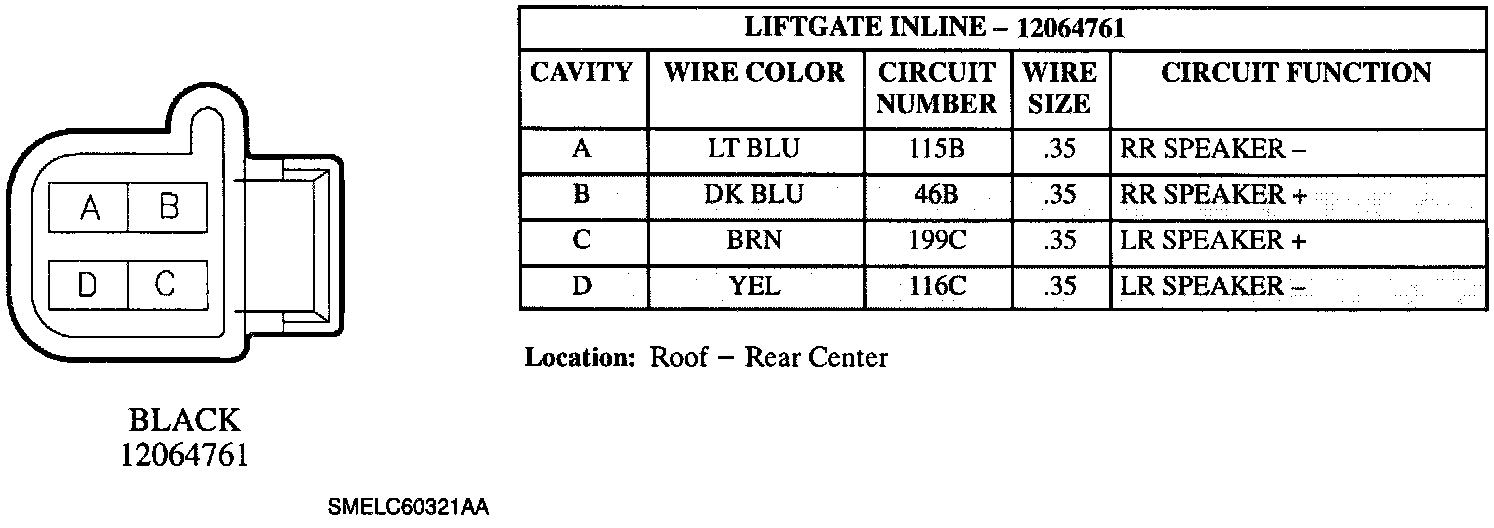

Liftgate Inline - Liftgate Harness:
