Amplifier: Service and Repair

AMPLIFIER REPLACEMENT

REMOVAL PROCEDURE

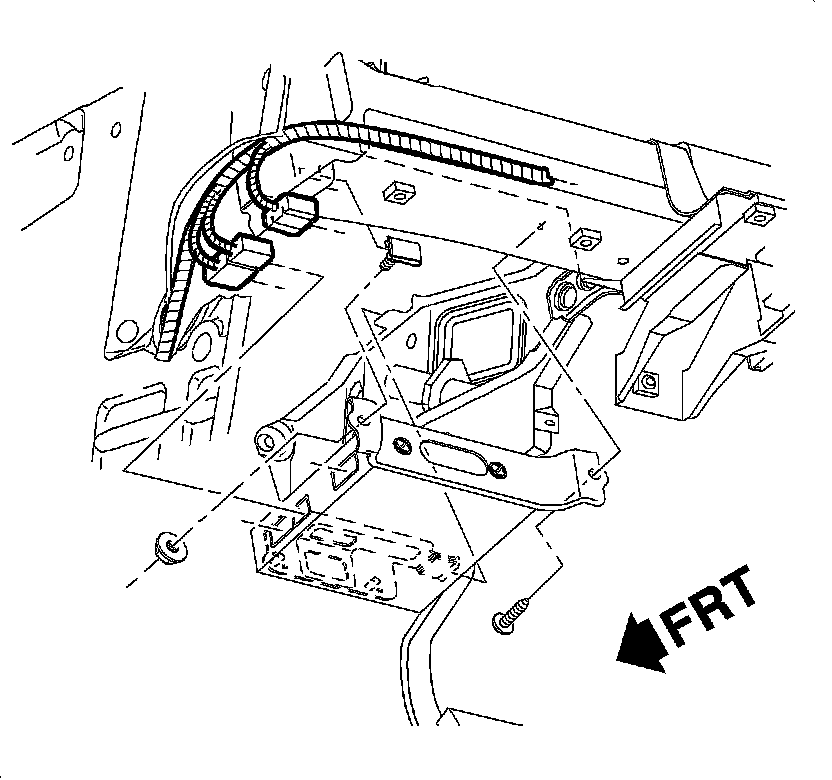

1. Remove the fasteners that attach the amplifier to the instrument panel (I/P) beam.
2. Slide the amplifier off of the clutch pedal bracket.
3. Disconnect the electrical connector connectors from the amplifier.
4. Remove the amplifier from the vehicle.

INSTALLATION PROCEDURE




1. Connect the electrical connector connectors to the amplifier.
2. Slide the amplifier onto the clutch pedal bracket.
3. Position the amplifier to the I/P beam. Install the fasteners.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fasteners to 10 N.m (89 lb in).
