Child Restraint Tether Anchor Replacement (Wagon)

CHILD RESTRAINT TETHER ANCHOR REPLACEMENT (WAGON)

REMOVAL PROCEDURE

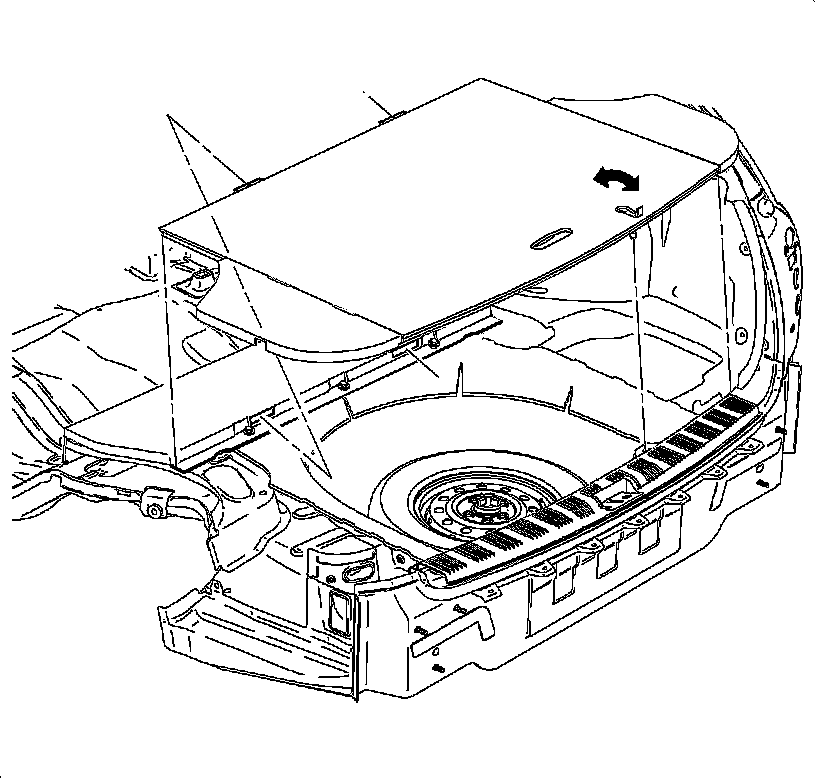

1. Remove the load floor panel from the vehicle.

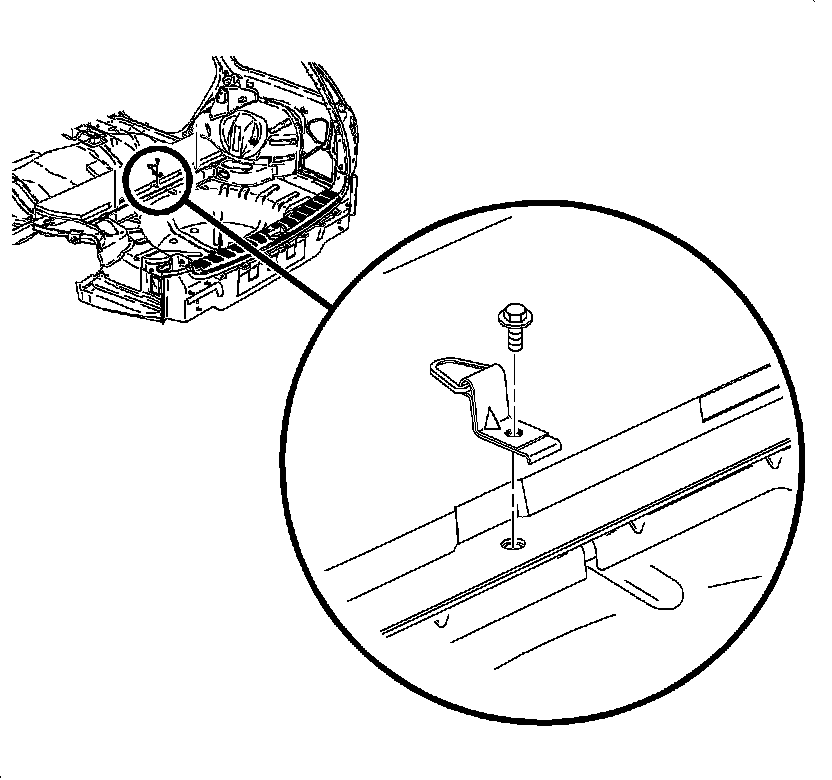

2. Remove the child restraint bracket fastener and remove the bracket.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the child restraint fastener and the bracket to the vehicle.

Tighten the bracket bolt to 20 N.m (15 lb ft).




2. Install the load floor panel.
