Trailing Arm Bushing: Service and Repair
Trailing Arm Bushings ReplacementTools Required
^ KM-671 Bushing Remover/Installer
^ KM-906B Bushing Remover/Installer
Removal Procedure
1. Remove the trailing arm from the vehicle.

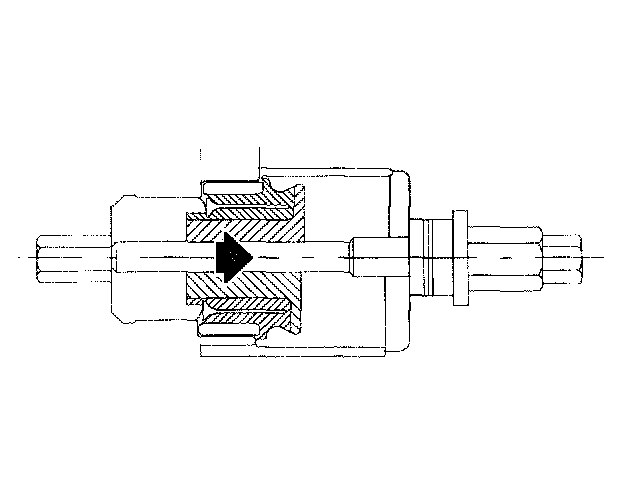

2. Using the KM-671 and KM-906B, assemble the KM-906-62,KM-906-61 and KM-671 arbor and press out the upper and lower control arm bushings.
3. Remove the M-906-62,KM-906-61,KM-671 arbor and bushing from the trailing arm.

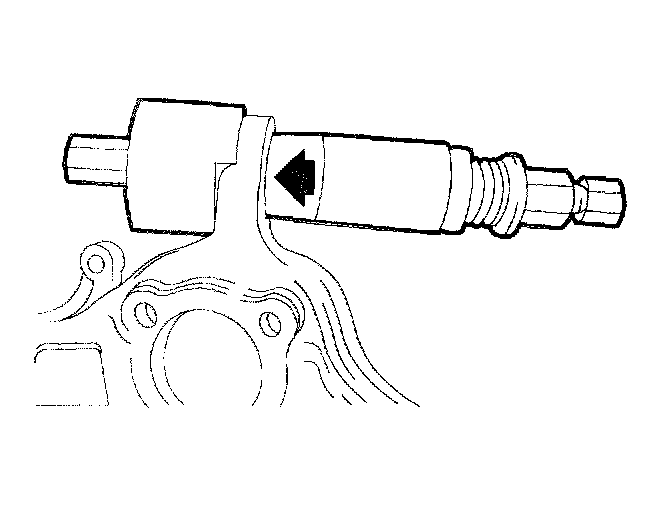

4. Using the KM-671 and KM-906B, assemble the KM-906-41,KM-906-44 and KM-671 arbor and press out the trailing arm front bushing.
5. Remove the KM-906-41,KM-906-44,KM-671 arbor and bushing from the trailing arm.
Installation Procedure

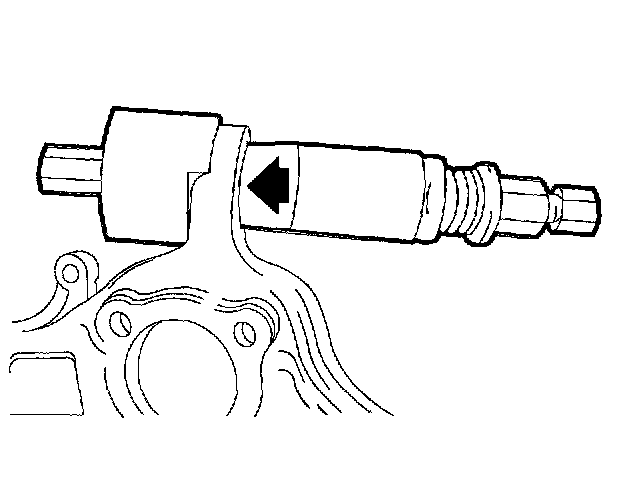

1. Using the KM-671 and KM-906B, assemble the KM-906-42,KM-906-43,KM-671 arbor and bushing to press in the trailing arm front bushing.
2. Remove the KM-906-42,KM-906-43, and KM-671 arbor from the trailing arm.

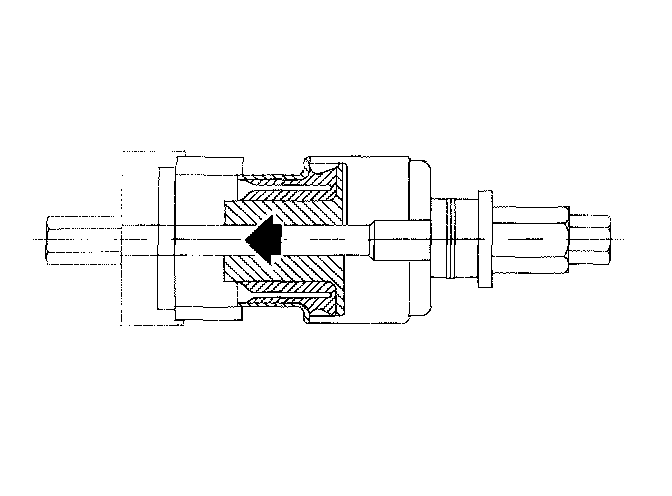

3. Using the KM-671 and KM-906B, assemble the KM-906-63, KM-906-64 and KM-671 arbor and press in the upper and lower control arm bushings.
4. Remove the M-906-63, KM-906-64, and KM-671 arbor from the trailing arm.
5. Install the trailing arm to the vehicle.
