Battery System, Hybrid Drive

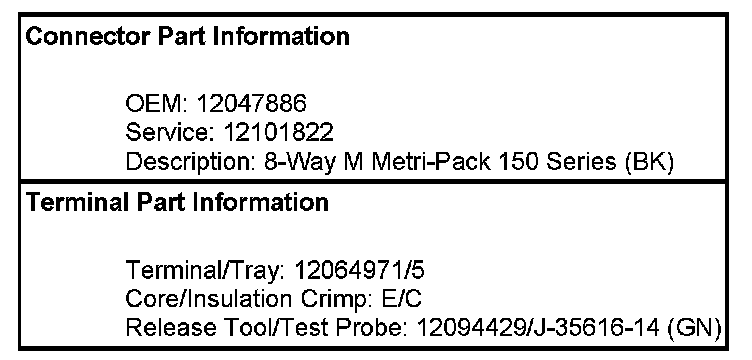

Hybrid Energy Storage Connector End Views

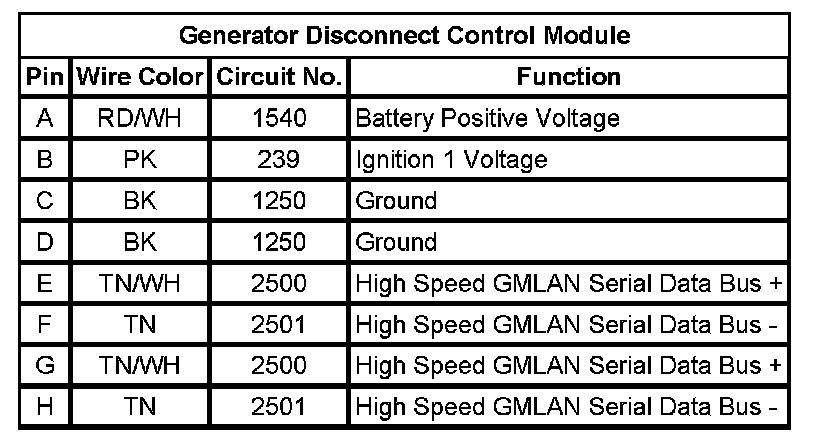

Generator Disconnect Control Module
