Transmission Fluid Baffle Removal



Transmission Fluid Baffle Removal

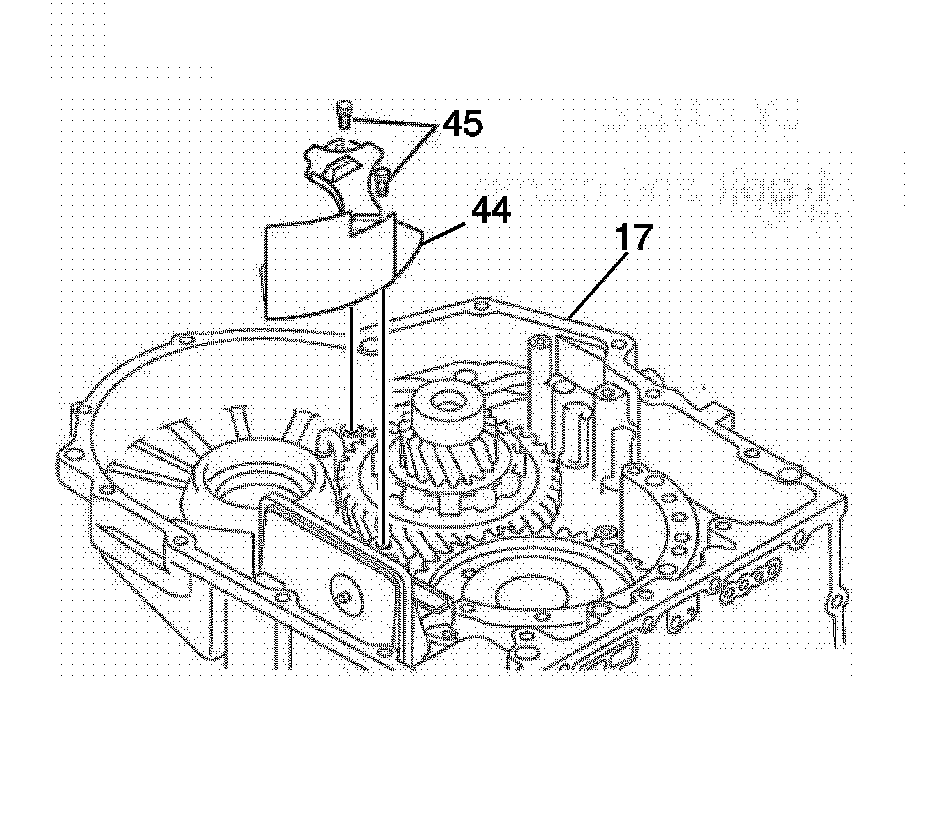

1. Remove the 2 fluid baffle bolts (45).
2. Remove the transmission fluid baffle (44) from the transmission case assembly (17).
