A/C Kit - Kit Information
NUMBER 15-42-87DATE 05-18-87
APPLICABILITY 1987 JUSTY
ACCESSORY A/C FOR JUSTY SOA332A105
�d61987 JUSTY WIRING DIAGRAM:

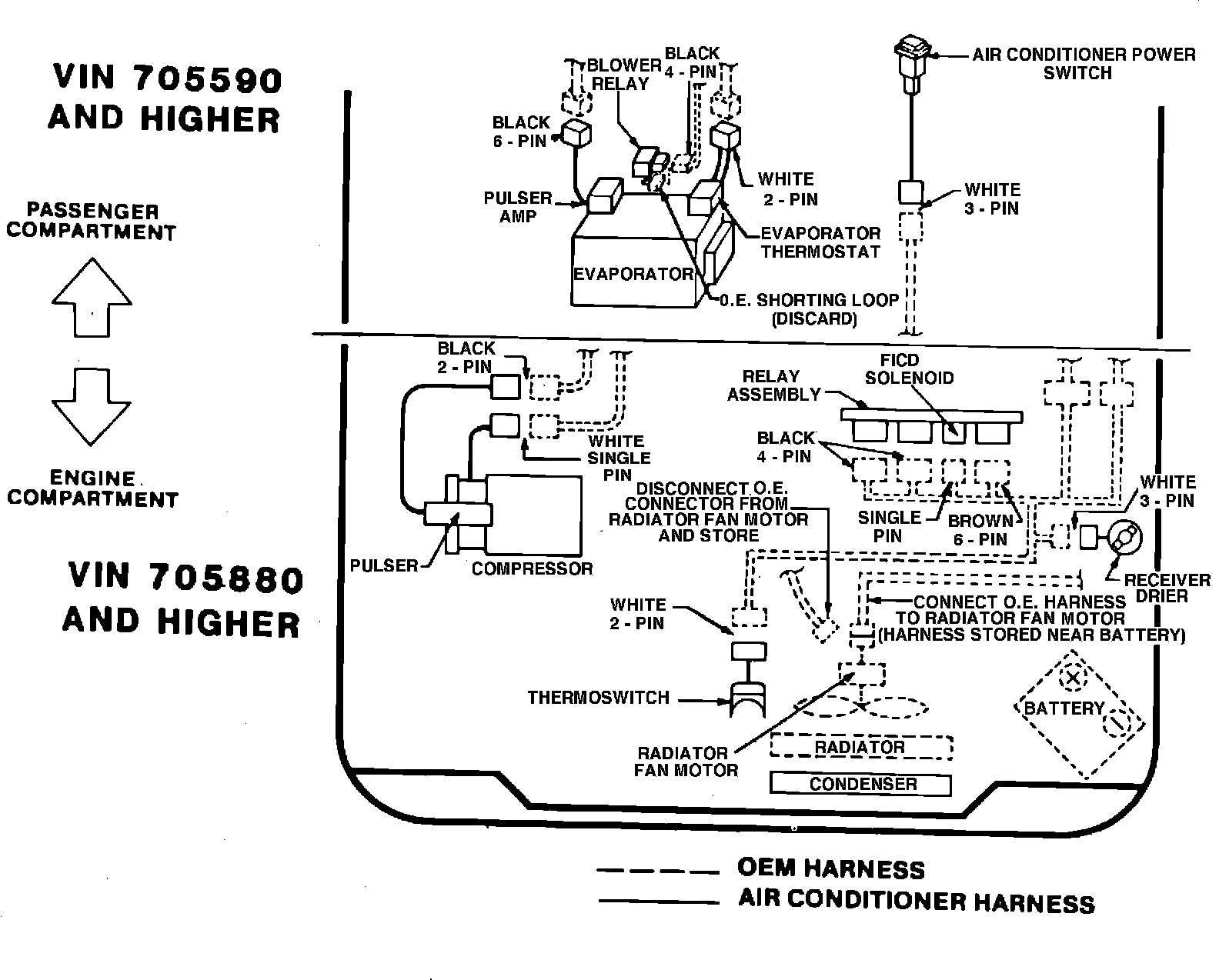

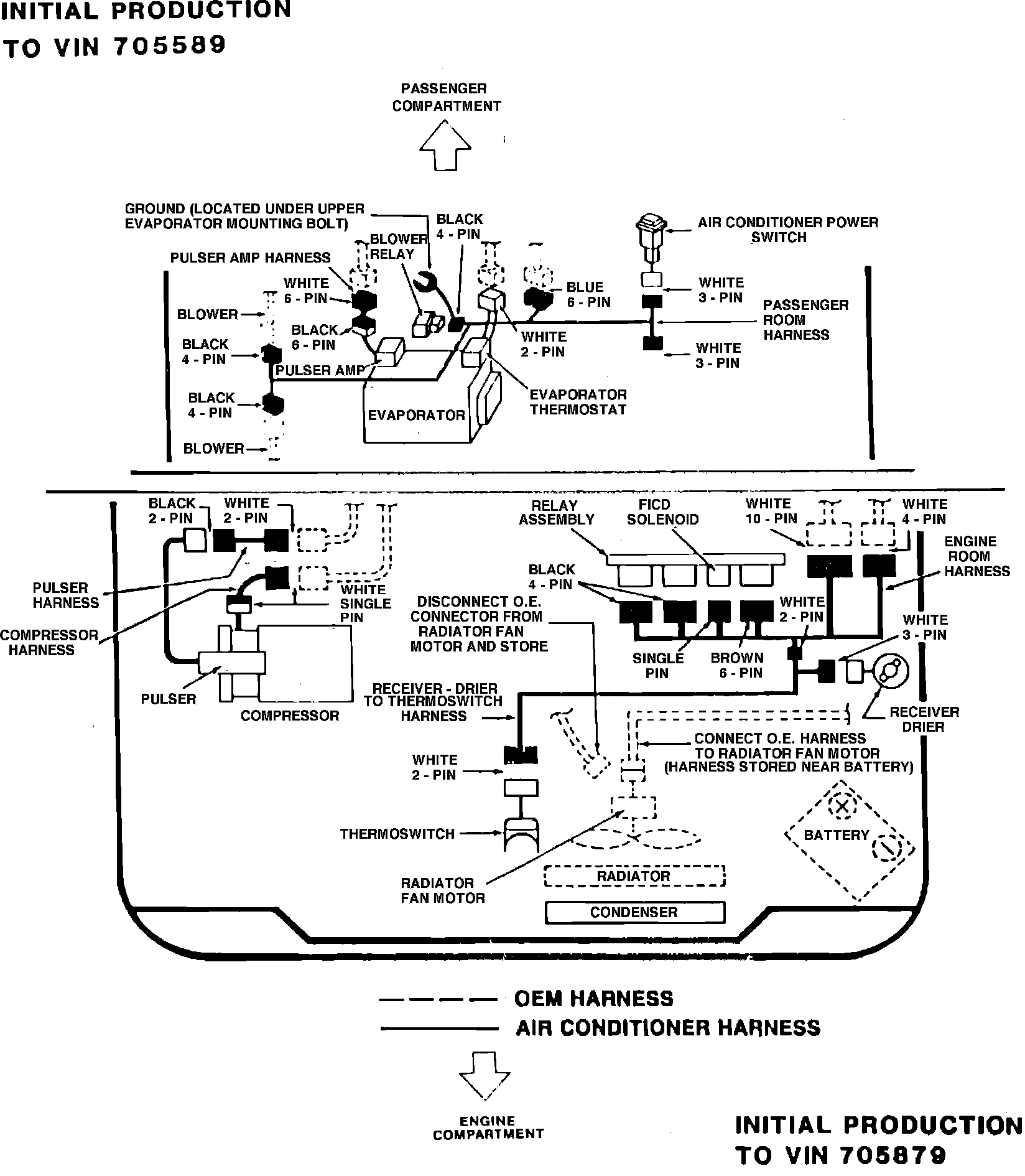

1987 JUSTY WIRING DIAGRAM:
The wiring harness provided in the Justy A/C Kit, SOA332A105, will now be included from the factory in various stages of vehicle production. Refer to the illustration and chart for details.
PARTS INFORMATION SOA332A105
A/C Kits packaged from introduction through April 15, 1987 will have both engine and passenger A/C harnesses included.
A/C Kits packaged April 16, 1987 and after will not have the A/C engine or passenger harnesses in the kit. The instruction sheet title block on these kits will provide VIN and wire harness applicability.
Vehicles that do not have one or both A/C harnesses from the factory and are using the SOA332A105 A/C kit without the harnesses included, will need harness package SOA332A213. This package contains both engine and passenger A/C wiring harnesses and supplemental instructions for the wire harness installation.
