Crank Bolt/Pilot Bearing/Brake Spring - Manual Update

NUMBER: 01-103-87

DATE: 04-22-87

APPLICABILITY:
ALL JUSTY MODELS

SERVICE MANUAL CORRECTIONS

THIS BULLETIN IS FOR INFORMATION ONLY

The following corrections need to be added to the 1987 Subaru Justy Service Manual:

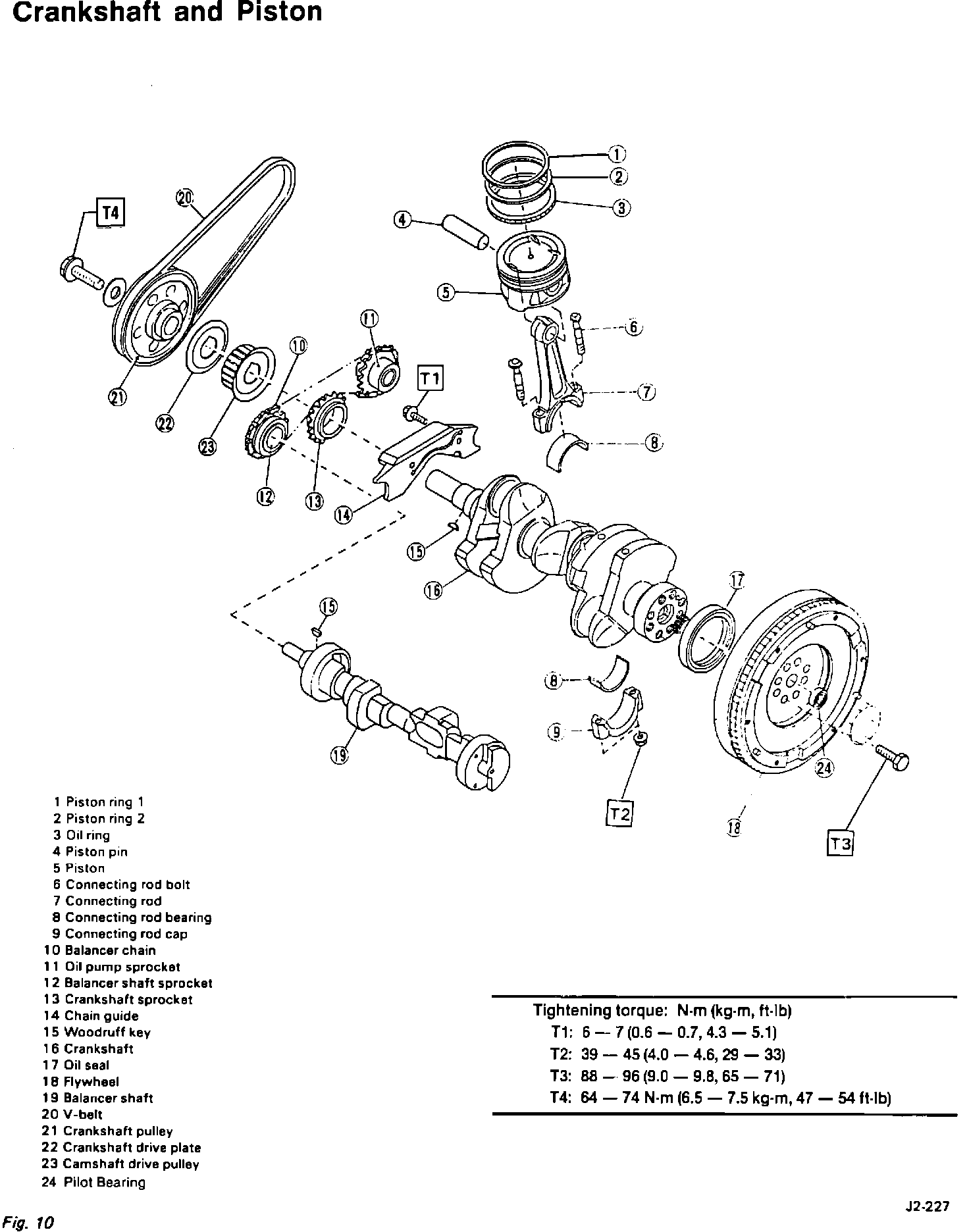

1.) Section 2-3, page 13, the tightening torque for the crankshaft bolt and the location of the pilot bearing are missing. See corrected Figure 1.

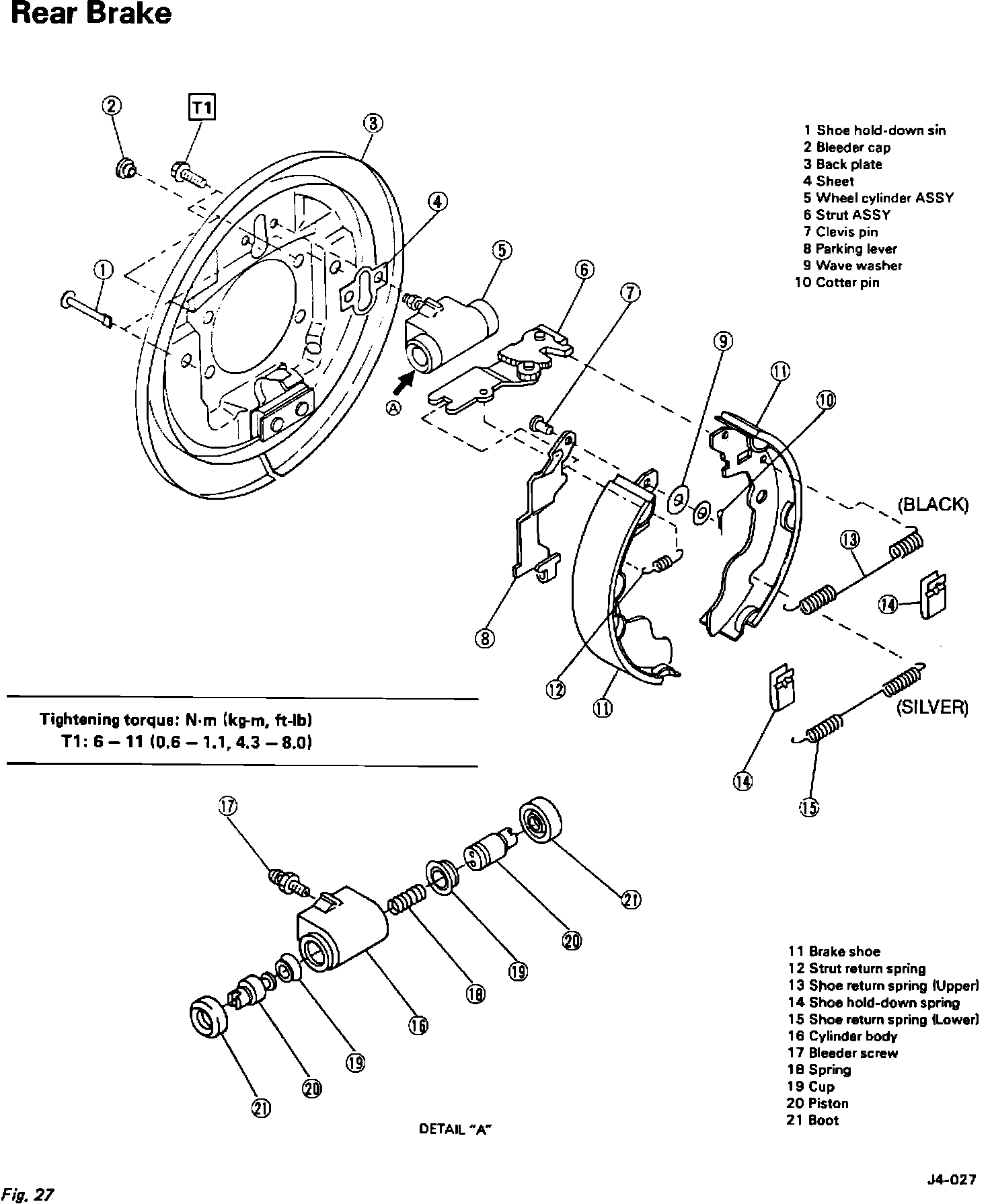

2.) Section 4-4, page 13, items # 13 and # 15 brake shoe return spring upper and lower are different in size and color. See corrected Figure 2.
