Undercoating - Procedures/Precautions

87subaru1

NUMBER 12-37-87


DATE 3-20-87
APPLICABILITY ALL JUSTY MODELS

SUBJECT: UNDERCOATING PROCEDURES

THIS SERVICE BULLETIN IS FOR INFORMATION ONLY

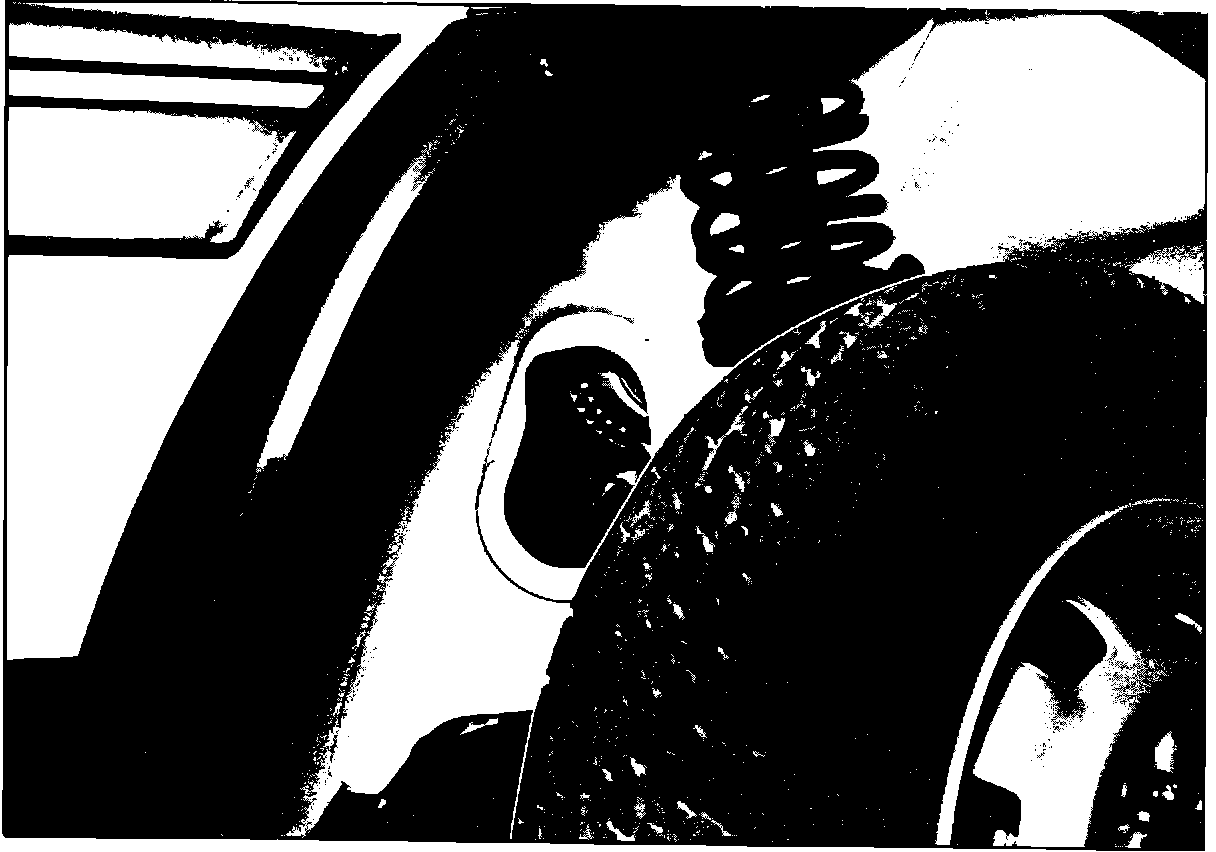

FIGURE 1:

When undercoating any Justy Vehicle, extra care must be taken not to spray undercoating through the steering rack frame holes into the engine compartment onto engine components such as the alternator, etc. (See Figure 1).
NOTE: Port service companies and anyone involved in the undercoating of Justy vehicles should be made aware of this information.
