EGR Control Solenoid: Testing and Inspection

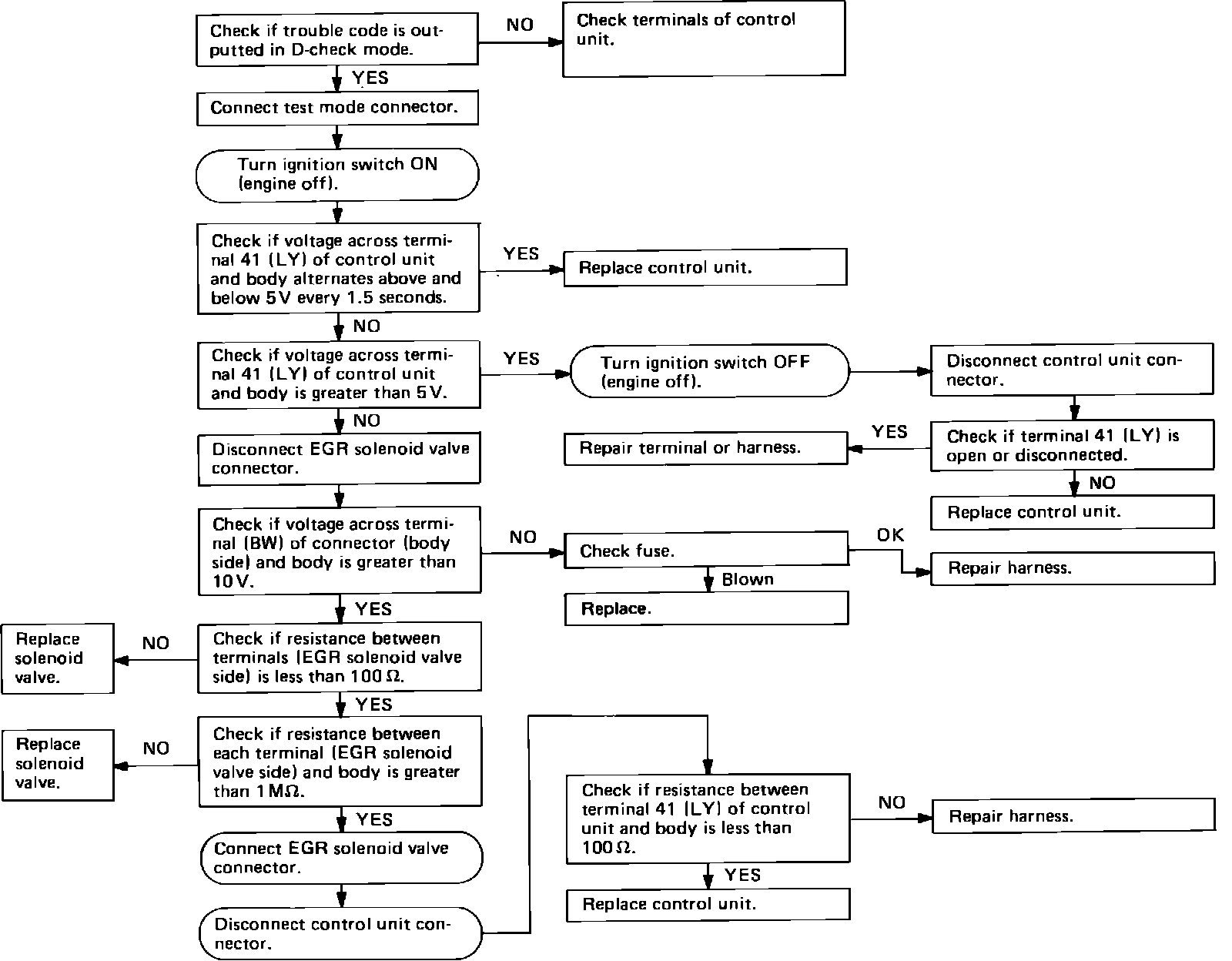

Fig. 46 EGI system troubleshooting chart. EGR solenoid valve (trouble code 34).:
