Subaru
>>
1988
>>
Justy Hatchback 4WD L3-1189cc 1.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Accessory Signal
>>
Testing and Inspection
>>
Blower and Engine Cooling Fan
Blower and Engine Cooling Fan

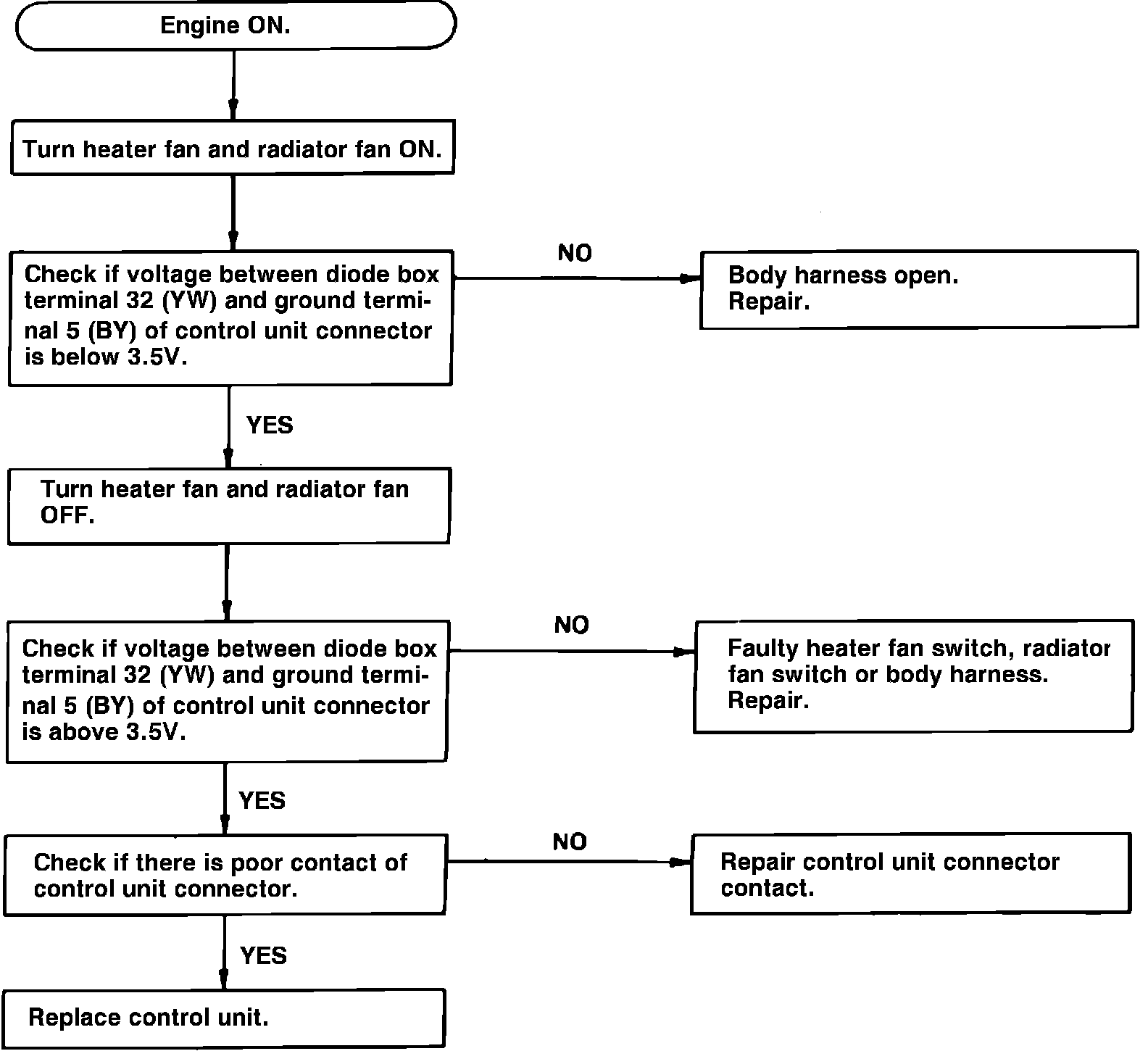

Fig. 54b Electronically controlled carburetor diagnostic chart. Idle-up system (trouble code 62).:
