A/C Climate Control - Diagnostic Update
90subaru03NUMBER 10-60-90
DATE 08/14/90
APPLICABILITY LS LEGACY MODELS EQUIPPED WITH AUTOMATIC
CLIMATE CONTROL AIR CONDITIONING SYSTEMS
SUBJECT: ACC DIAGNOSITC INFORMATION
Insert the following pages to the Subaru Legacy Service Manual Publication Number G201BE issued March, 1989, Section 4-7, titled "Air Conditioning System".

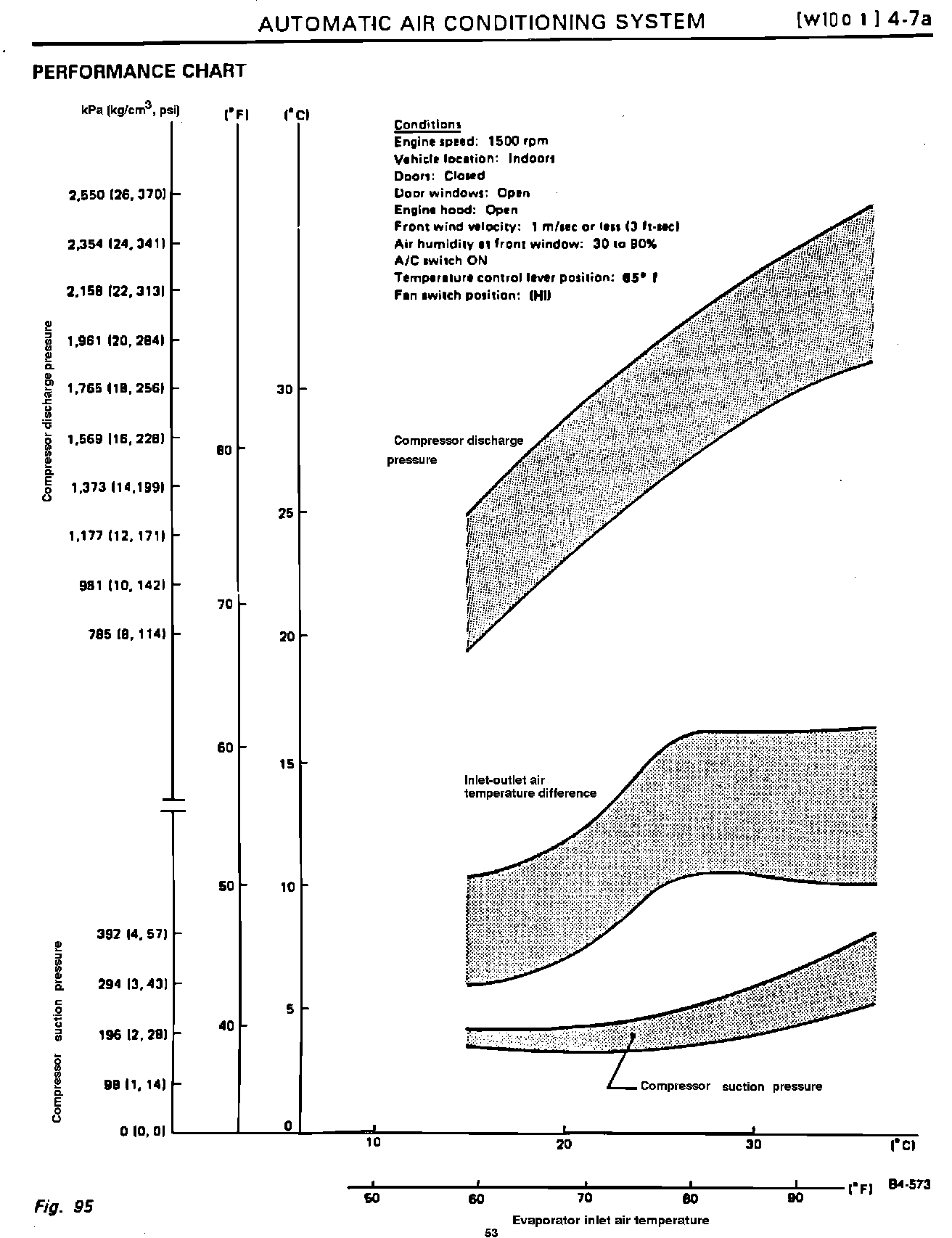

^ PERFORMANCE CHART for Automatic Air Conditioning System [W1001] 4- 7a insert after Calsonic Performance Chart, page 24 [W1019].

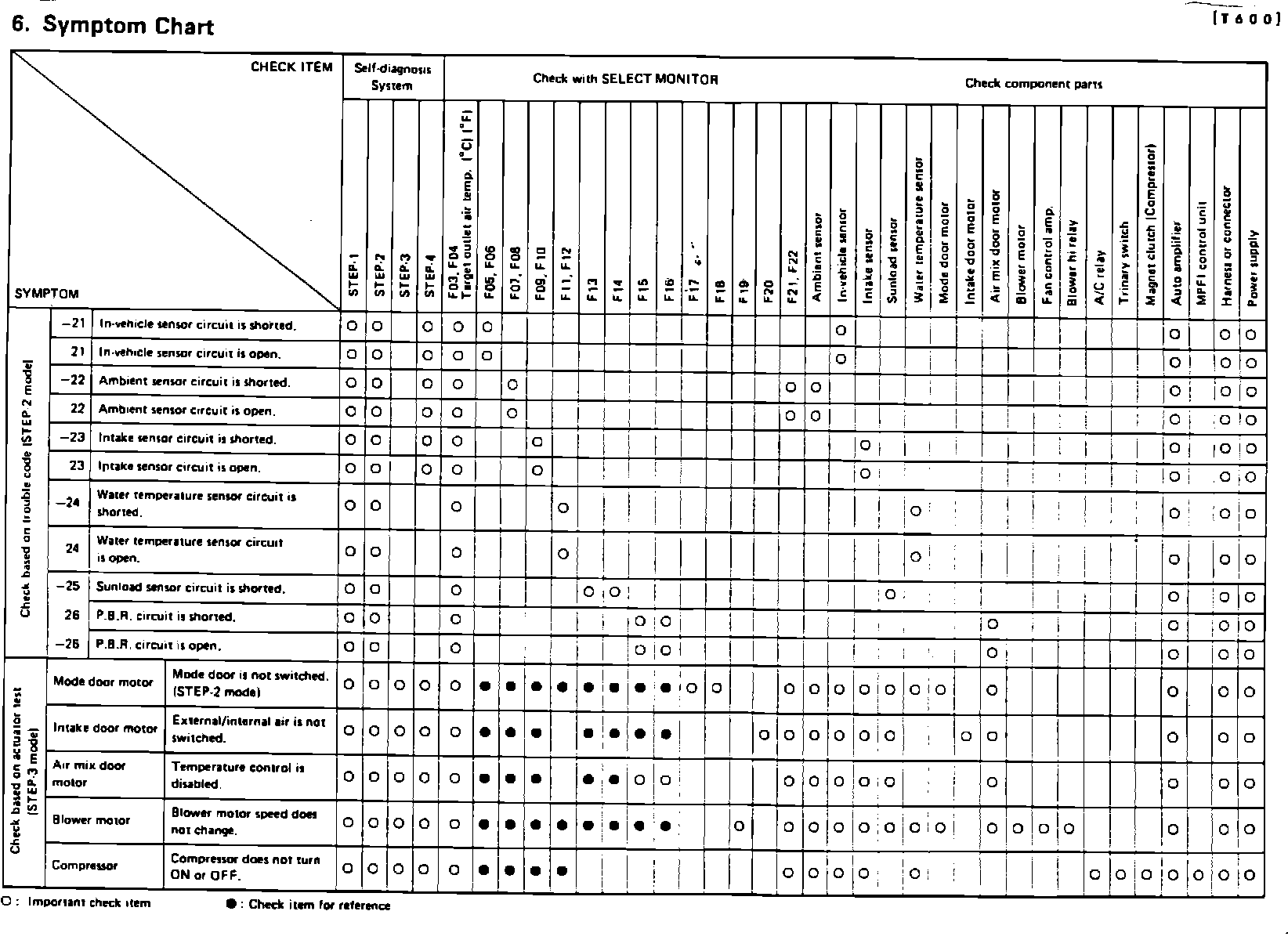

^ SYMPTOM CHART for Automatic Air Conditioning System [T600] 4-7a insert after condenser fan (subfan) diagnosis (11) page 48 [T800].
