Symptom Related Diagnostic Procedures

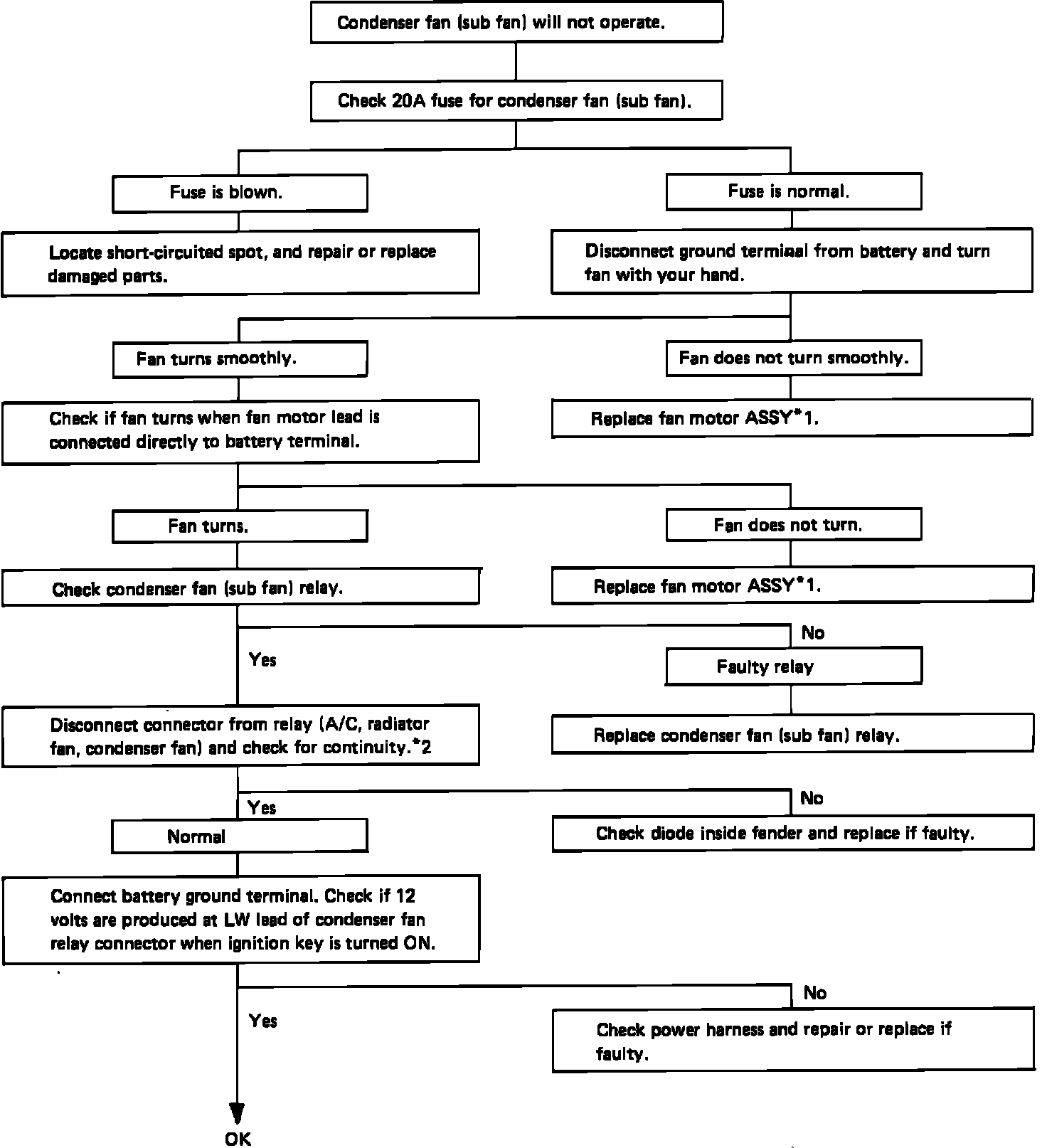

Condenser Fan (Sub-Fan, Part 1):



Condenser Fan (Sub-Fan, Part 2):
