Evaporative Check Valve: Service and Repair

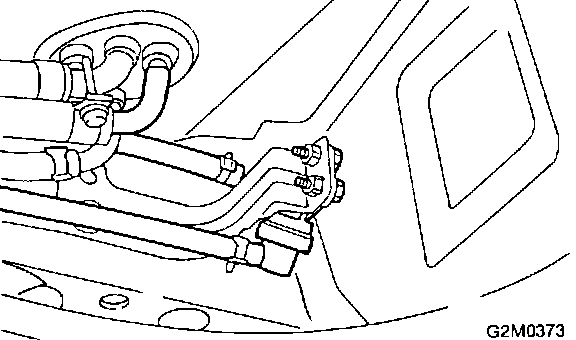

Roll-Over Valve:

1. Raise vehicle to access under carriage.
2. Disconnect fuel lines from valve.
3. Remove bracket fasteners and valve.
4. Install in reverse order.
NOTE: Do not install valve upside down.
