Service Manual - ABS Supplement Update
NUMBER: 18-13-93DATE: 02-24-93
APPLICABILITY
1992 & 1993 LEGACY
SUBJECT:
SUBARU LEGACY 1992 SERVICE ABS-2E
The page number(s) listed each of the illustrations or text indicate their location in the above noted service manual supplement, publication No. G20BBE. Please note that each correction or corrected illustration can apply to several different locations; therefore, it will be necessary to make several photocopies of those illustrations.
Cut out each of the illustration(s) and/or text and tape or paste them over the incorrect illustration(s) and/or text in the service manual.
Adding the correction immediately to this service manual supplement will ensure the proper information is conveyed each time the manual is used.

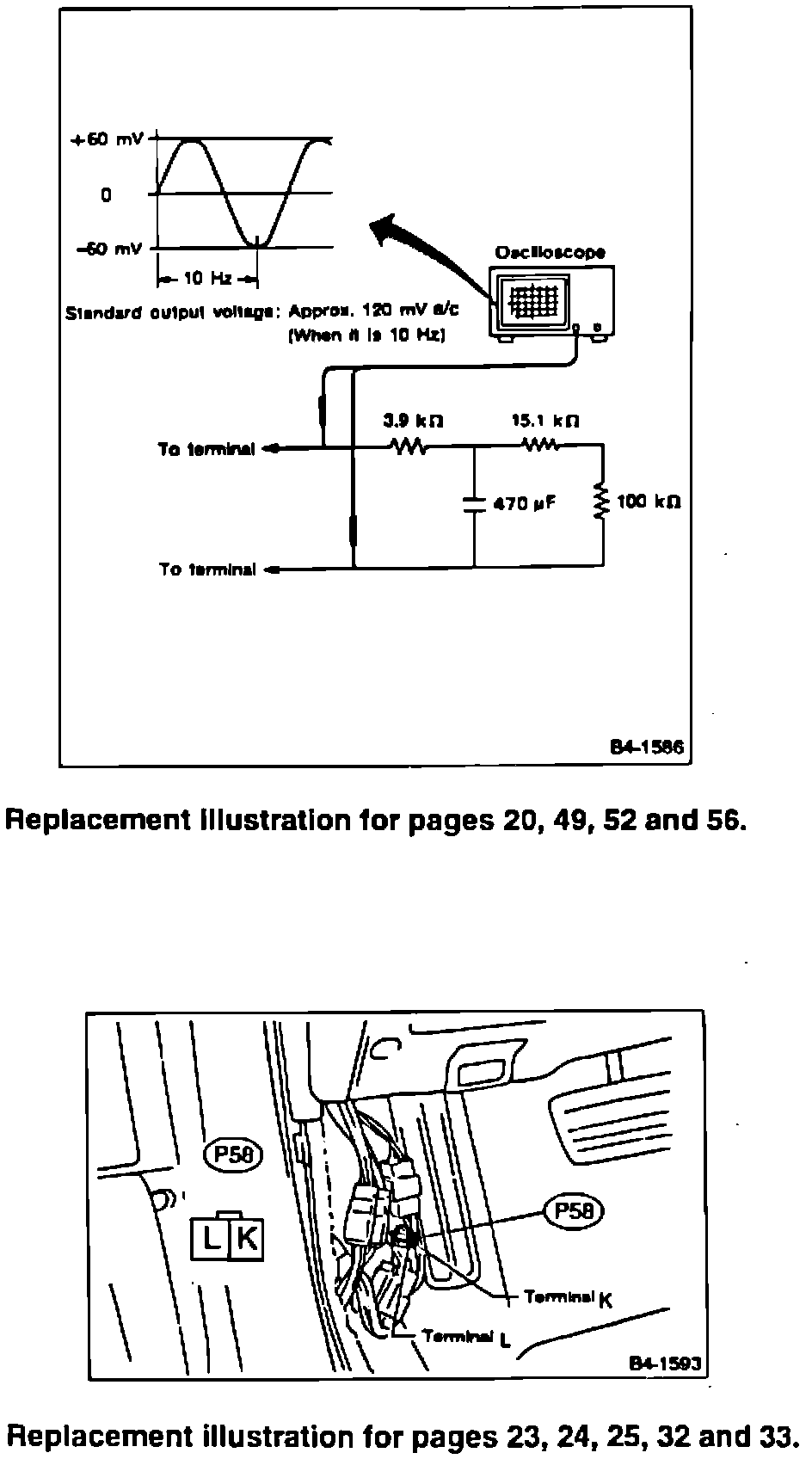

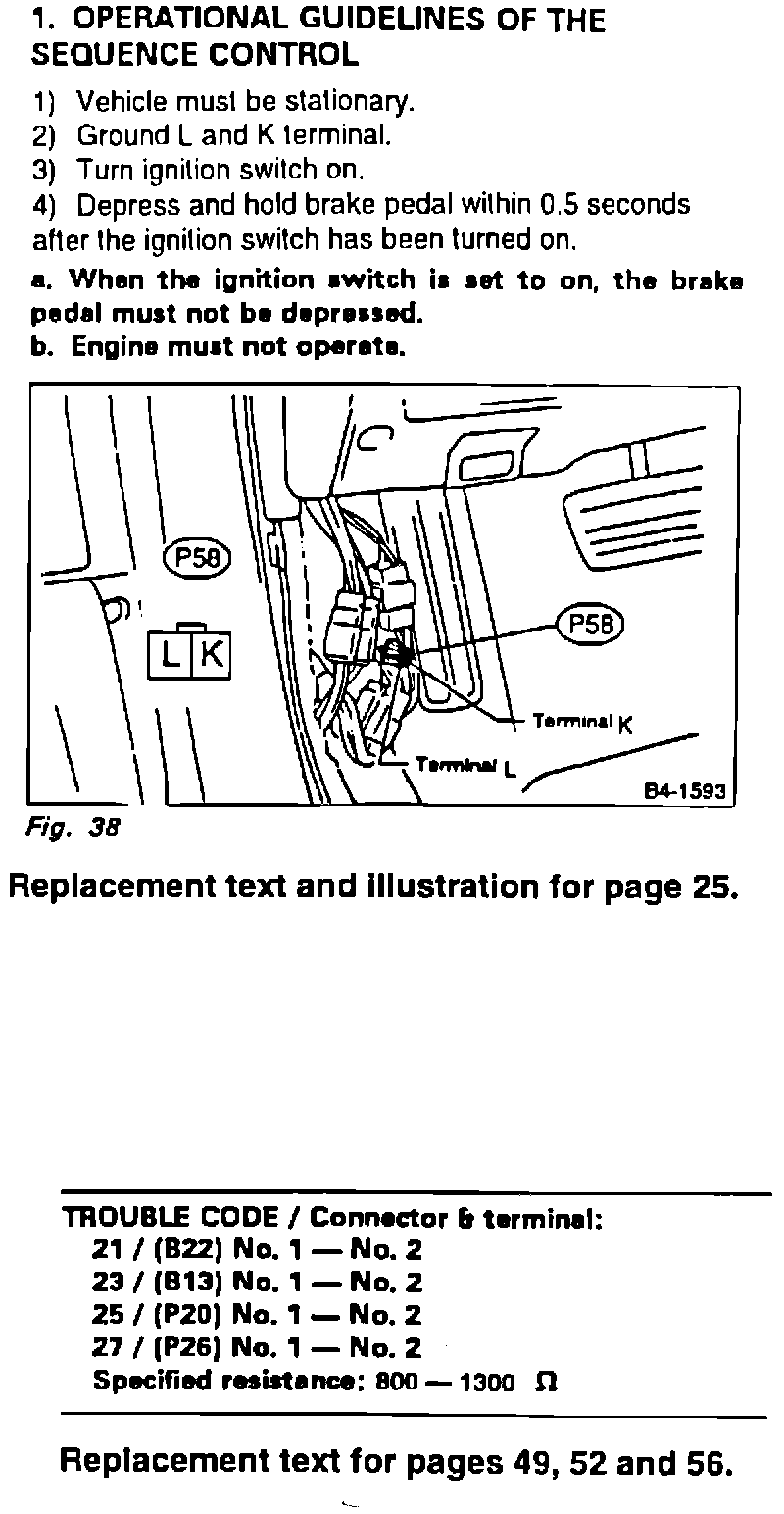

Pages 49, 52 and 56

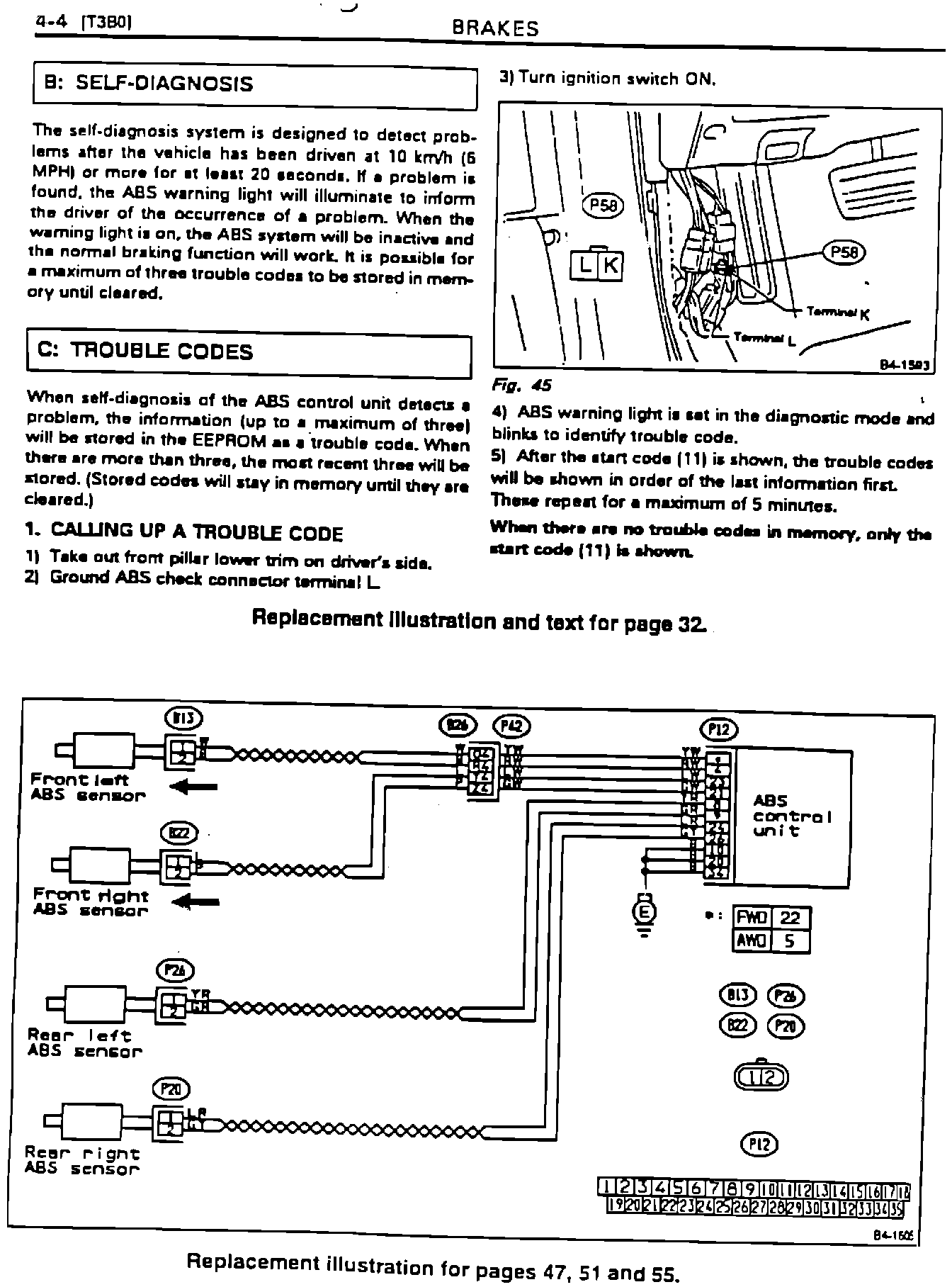

Pages 47, 51 and 55
Pages 23, 24, 25, 32 and 33
