Combination Meter Wiring
NUMBER: 07-48-93DATE: 02-05-9
APPLICABILITY
92MY SIA BUILT LEGACY STATION WAGON WITH MANUAL TRANSMISSION
SUBJECT:
COMBINATION METER WIRING
If you receive a manual transmission Legacy station wagon with the following condition:
^ Rear gate telltale light "on" all the time and will not turn-off with gate latch adjustments and no wiring problems are found at the rear gate harness.
^ Side door telltale lights are inoperative.
Examine the combination meter main harness connectors I-14 and I-15 using the 92MY Legacy Service Manual, Section 6-3 (0507], Pages 32, 33, 34 and 35.

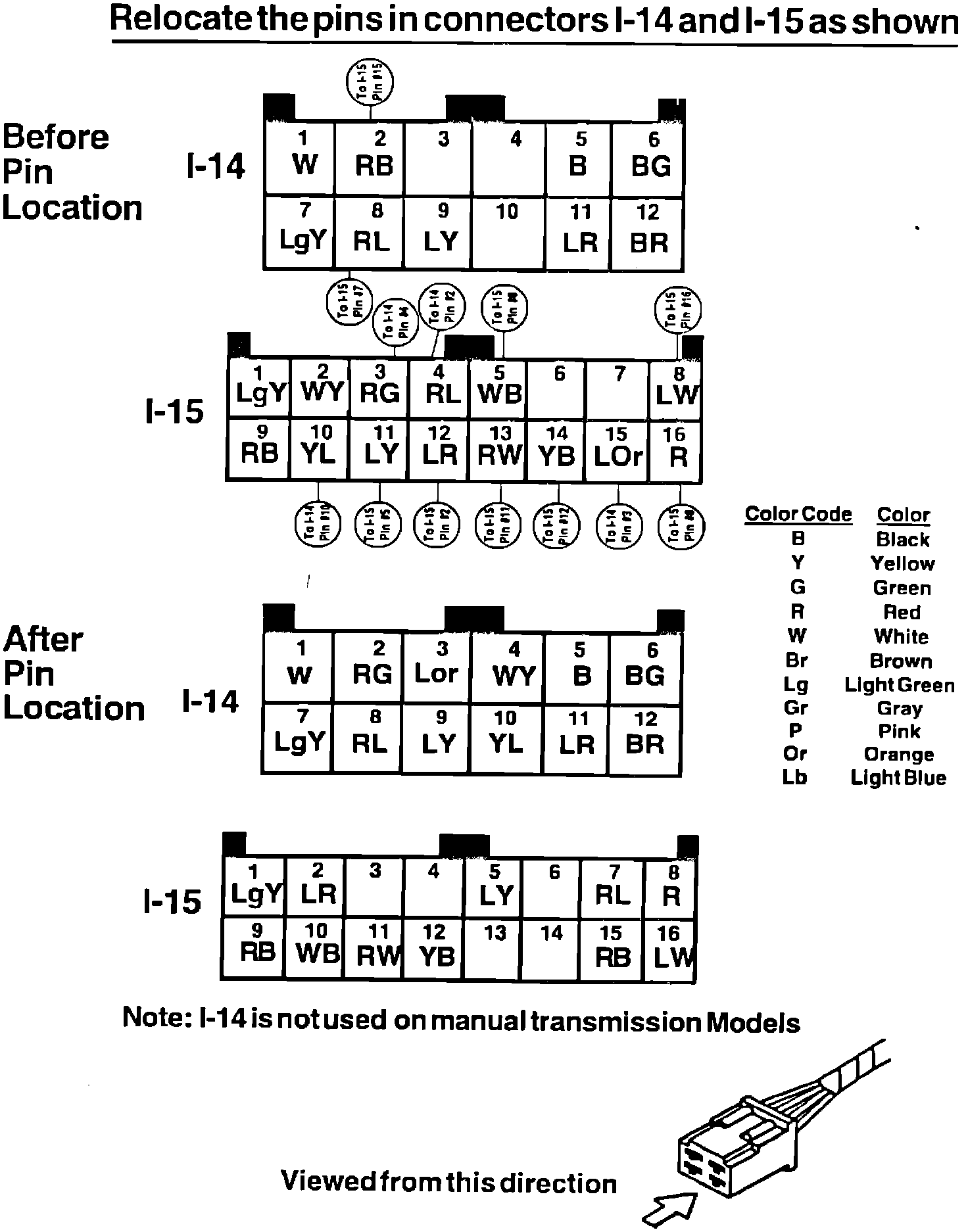

The connectors may be incorrectly wired for an automatic transmission. Use the schematic in Figure 1 to relocate the pins in connectors I-14 and I-15 to convert the harness to a manual transmission configuration.
