EGR Control Solenoid: Service and Repair

EGR Solenoid Valve

REMOVAL AND INSTALLATION

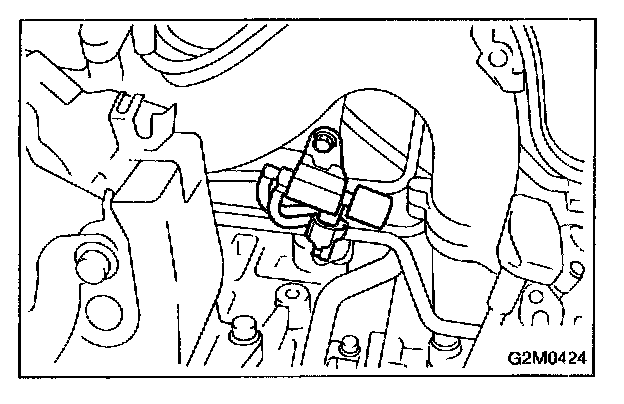

1. Remove bolt which installs EGR solenoid valve onto collector chamber.
2. Disconnect hoses and connector from EGR solenoid valve.
3. Installation is in the reverse order of removal.

Tightening torque:
14 - 24 N.m (1.4 - 2.4 kg.m, 10 - 18 ft.lb)
