Home
>>
Subaru
>>
2000
>>
Forester L F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trailer Connector
Trailer Connector

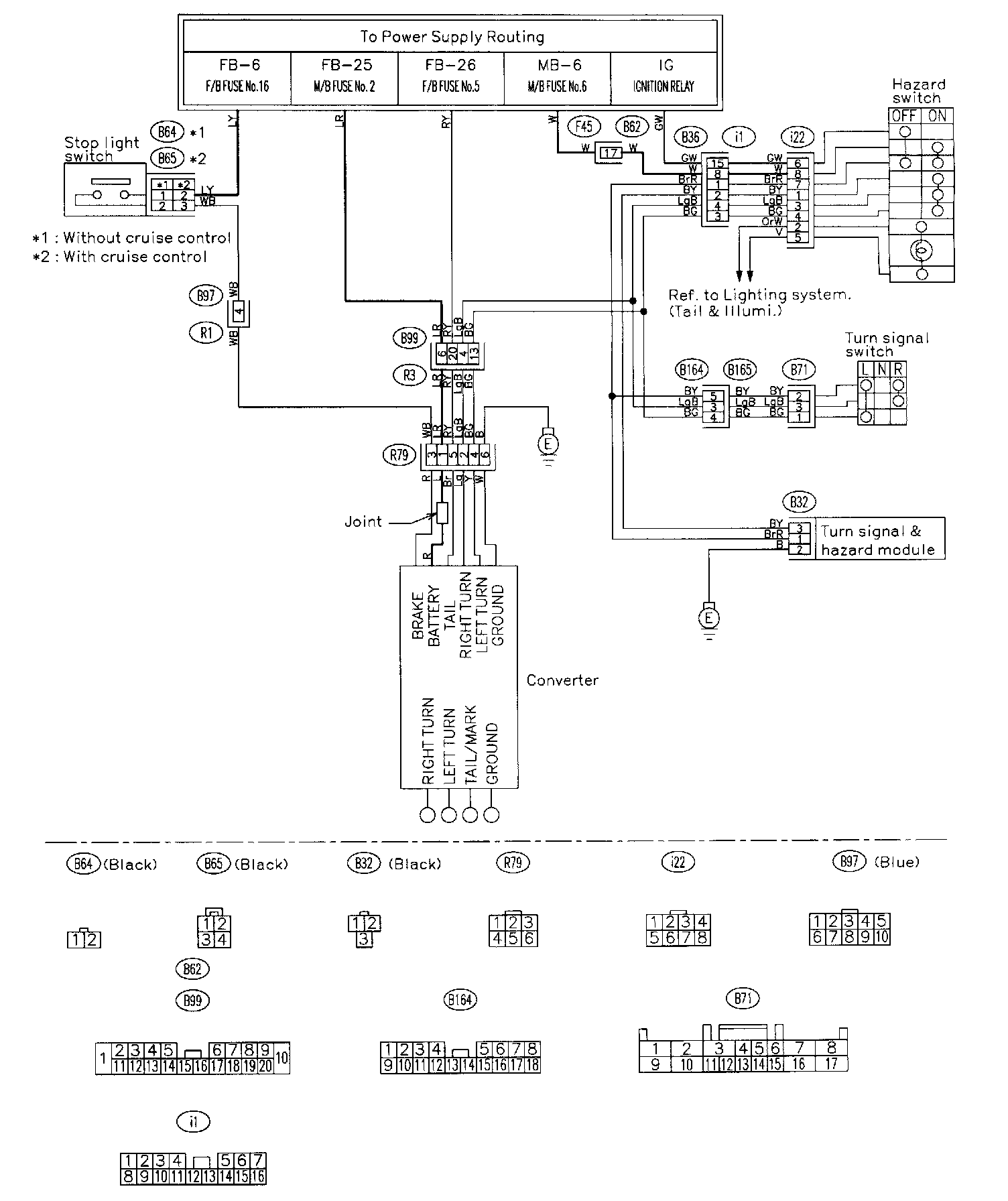

Circuit Diagram:
