Tires: Testing and Inspection

TIRE ROTATION




INSPECTION

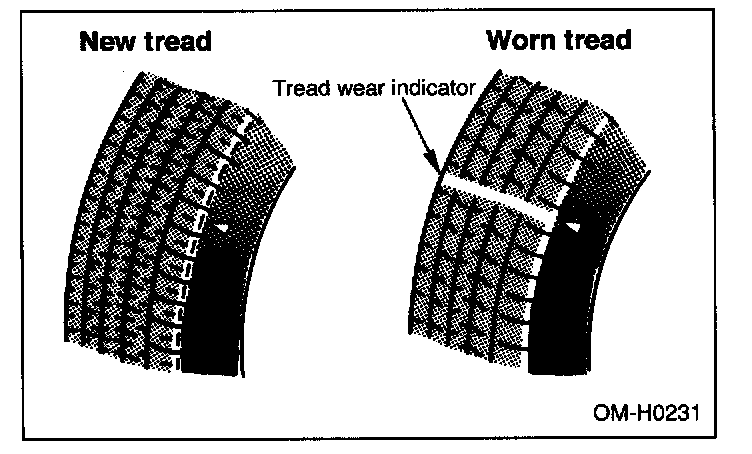

1. Replace the tire if the tread depth is less than 0.063 in (1.6 mm) or if wear indicators appear across the tire tread. (It is recommended that both right and left tires are replaced as a set.)
2. Adjust the wheel alignment if abnormally uneven tire wear is found.

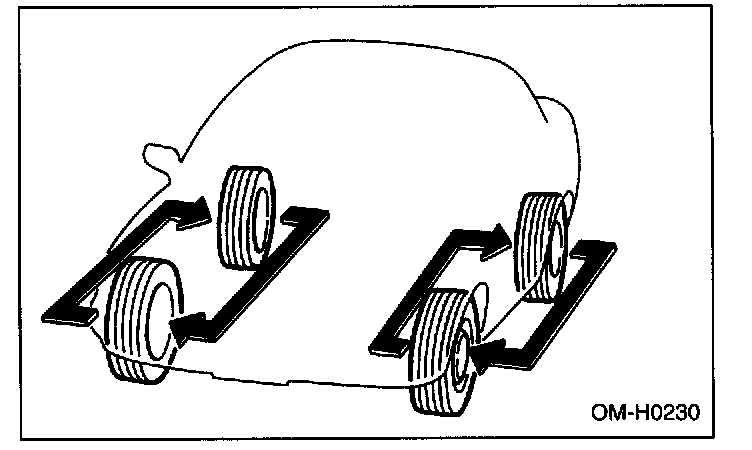

3. Also, rotate the tires between the front and rear tires as illustrated, in order to ensure uniform tire wear.
