Sensor (In Transmission)

A: INSPECTION

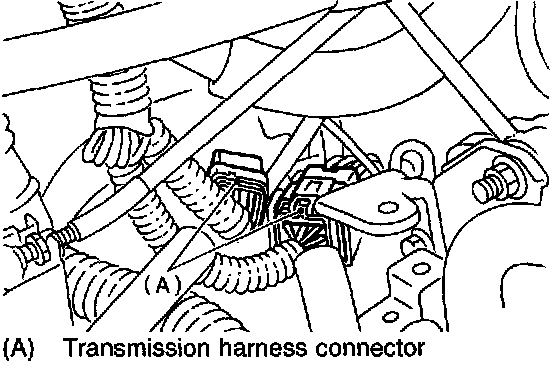

1. Remove air cleaner case and duct.

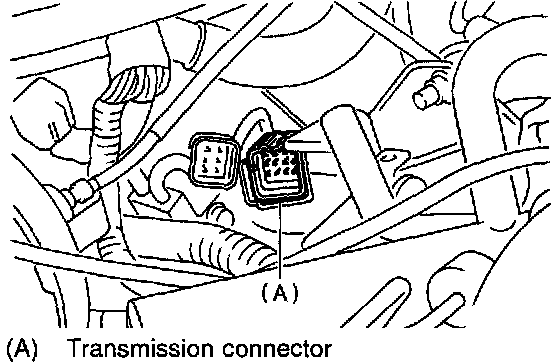

2. Disconnect transmission connector.





3. Check each sensor, solenoid and ground system for short circuits.

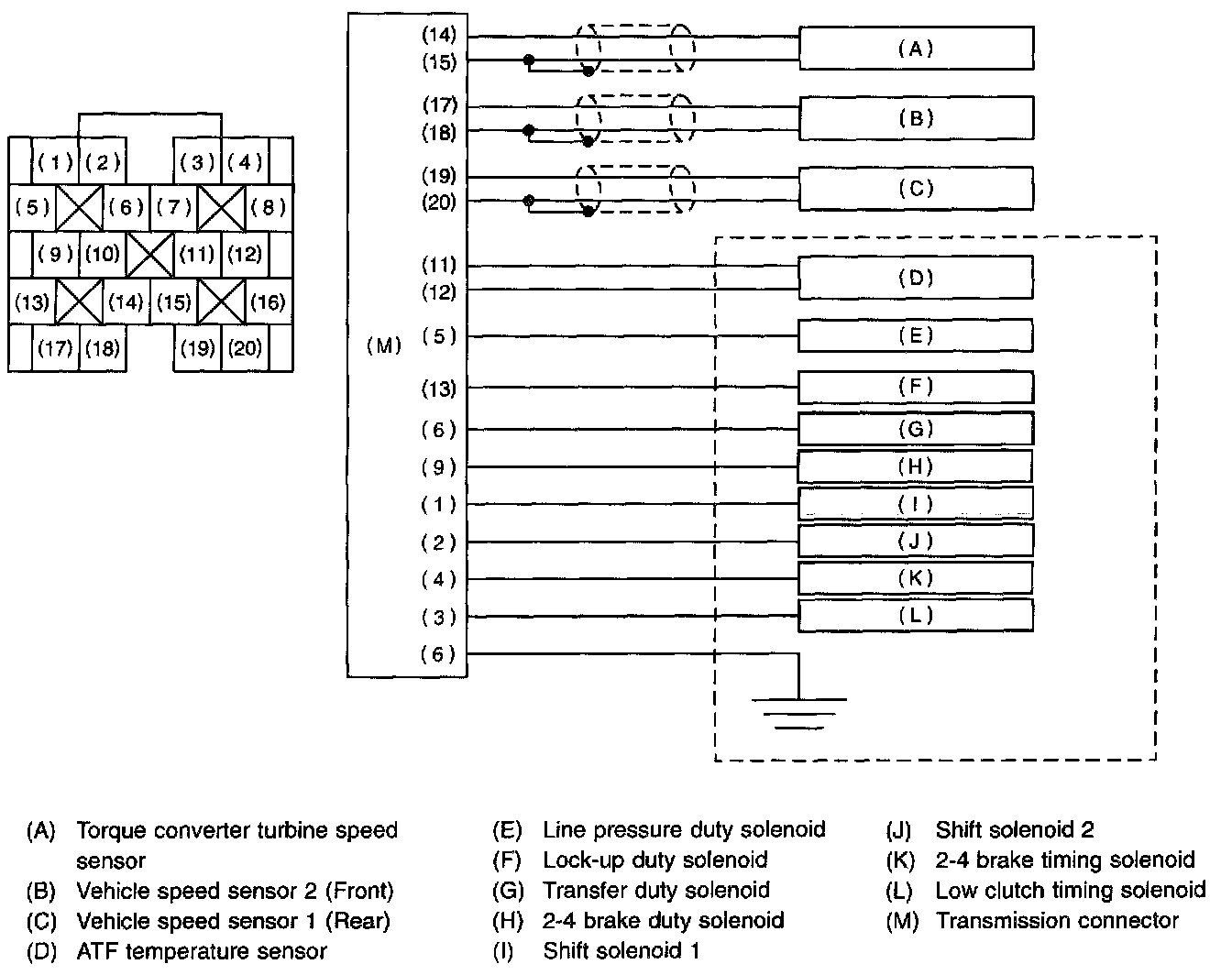

Schematic

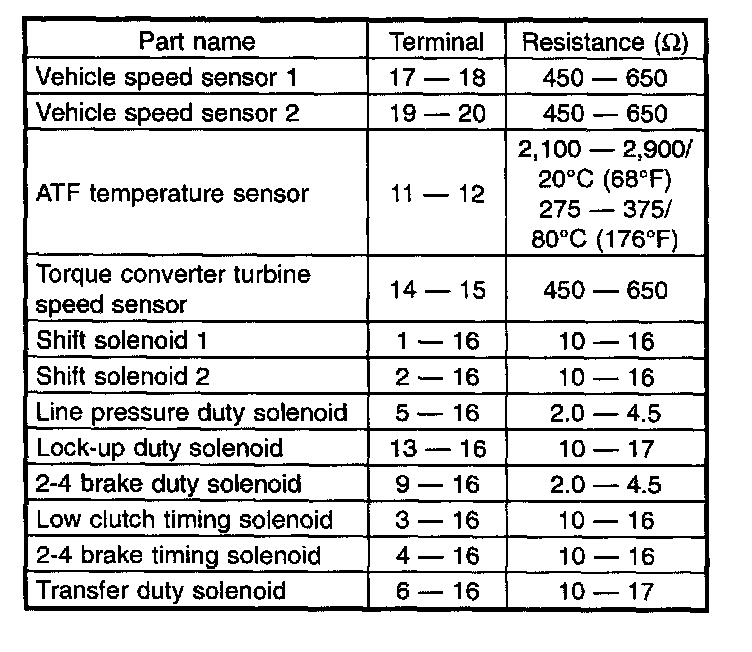

1. EVALUATION





NOTE: If part is faulty, its resistance value will be different from the standard value indicated.
