Shift Cable: Adjustments
ADJUSTMENT1. Prior to removal, set lever to "N" position.
2. Lift-up the vehicle.

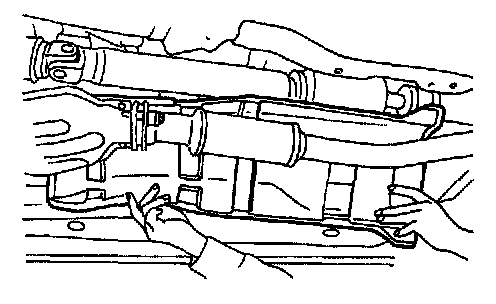

3. Remove heat shield cover.

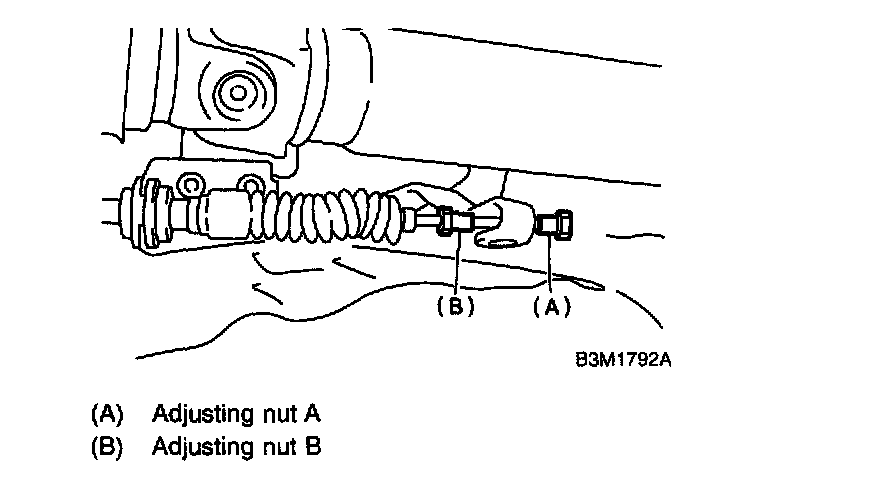

4. Loosen the adjusting nut on each side.

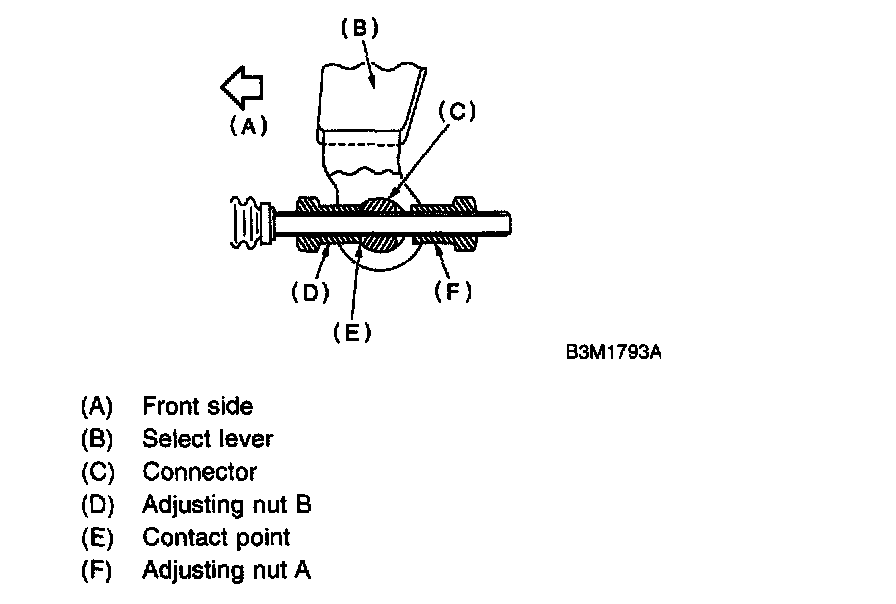

5. Turn adjusting nut B until it lightly touches the connector.

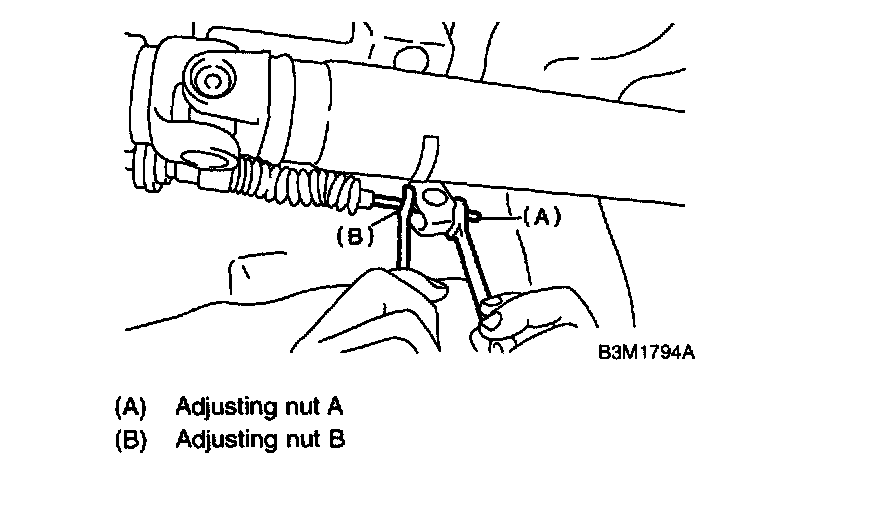

6. While preventing adjusting nut B from moving with a wrench, tighten adjusting nut A.
Tightening torque: 7.5 Nm (0.76 kgf-m, 5.5 ft. lbs.)
7. After completion of fitting, make sure that the select lever operates smoothly all across the operating range.
