Removal and Installation

Intake Unit

REMOVAL
1. Using refrigerant recovery system, discharge refrigerant.
2. Disconnect ground cable from battery.

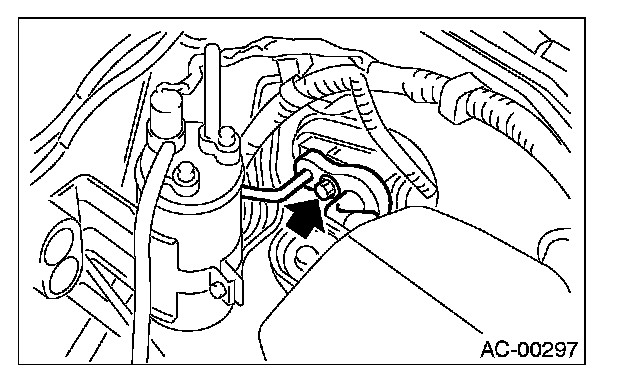

3. Remove bolts securing expansion valve and pipe in engine compartment.
4. Remove instrument panel.




5. Remove keyless unit and cruise unit.
6. Disconnect sunroof connector.




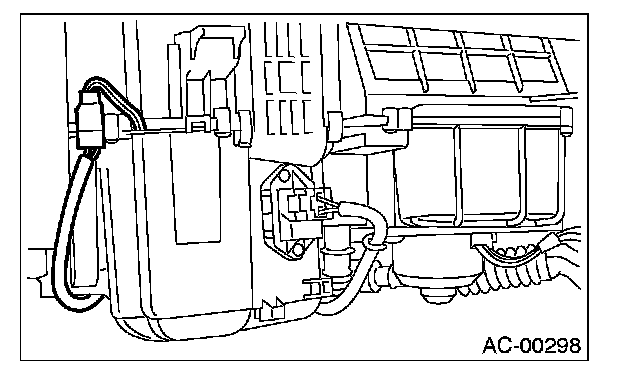

7. Disconnect servo motor connector.
8. Disconnect blower power transistor connector.
9. Disconnect blower motor connector.




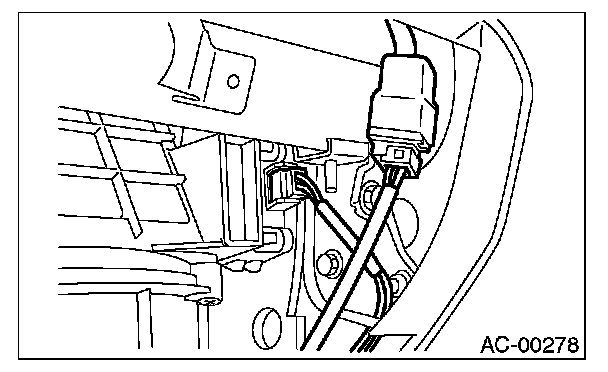

10. Disconnect evaporator sensor connector.

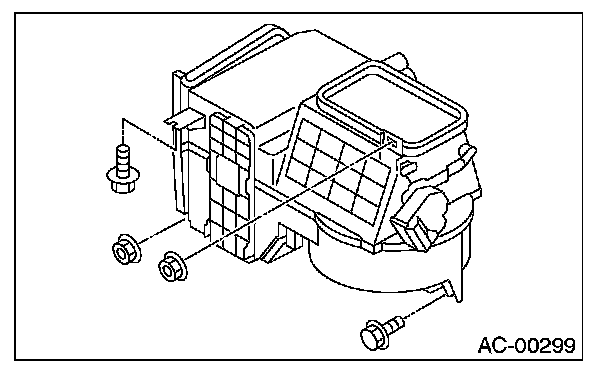

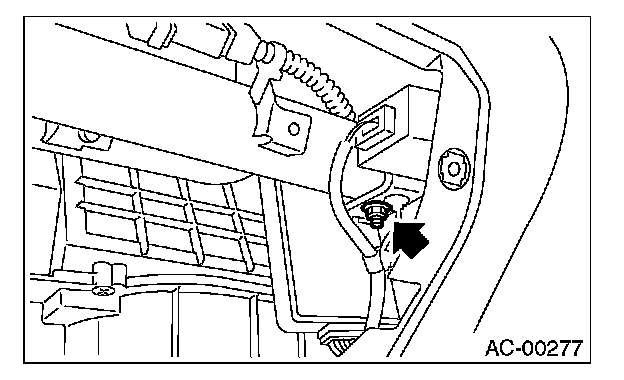

11. Remove bolts and nuts on the intake unit.
12. Disconnect drain hose.
13. Remove the intake unit.

INSTALLATION
1. Install in the reverse order of removal.

CAUTION: Replace O-rings with new ones, and apply compressor oil.

Tightening torque: Refer to COMPONENT of General Description

2. Charge refrigerant.
