Center Mounted Brake Lamp: Service and Repair

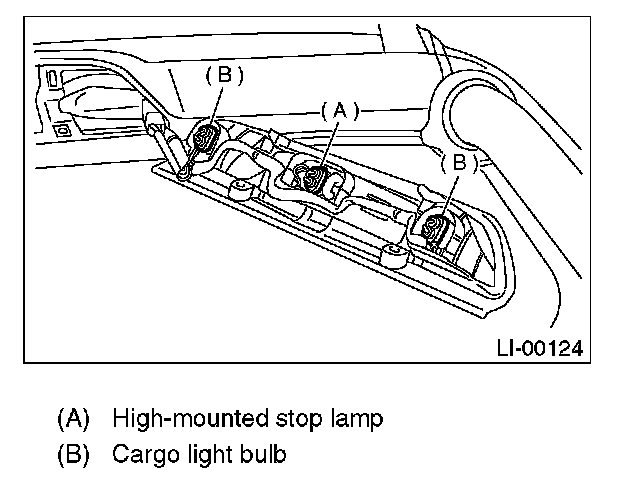

High-mounted Stop Light

REMOVAL
1. Disconnect ground cable from battery.

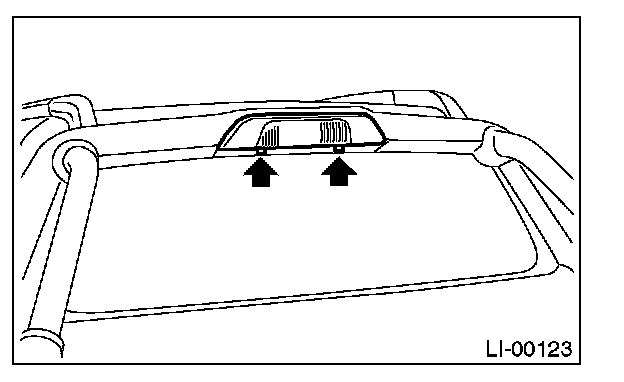

2. Remove bolts, then detach high-mounted stop light assembly.




3. Turn the socket and remove the bulb.

INSTALLATION
Install in the reverse order of removal.
