Front

Front Seat Belt

REMOVAL

1. FRONT OUTER BELT
1. Turn the ignition switch to OFF, disconnect the ground cable from battery, and wait for more than 20 seconds before starting work.
2. Fold backrest all the way forward, and then move front seat all the way forward.
3. Remove the center pillar lower trim.

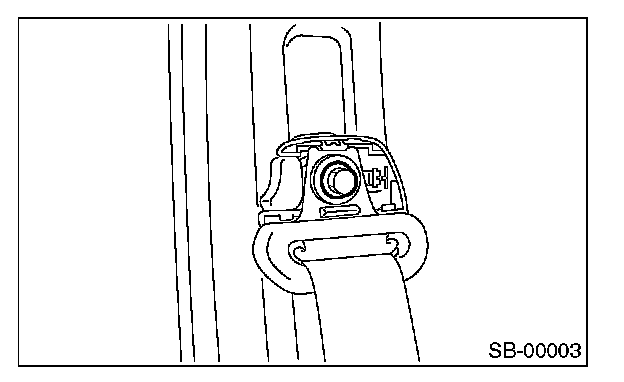

4. Remove the anchor cover. Loosen the shoulder anchor bolt, and then detach the shoulder anchor from center pillar.

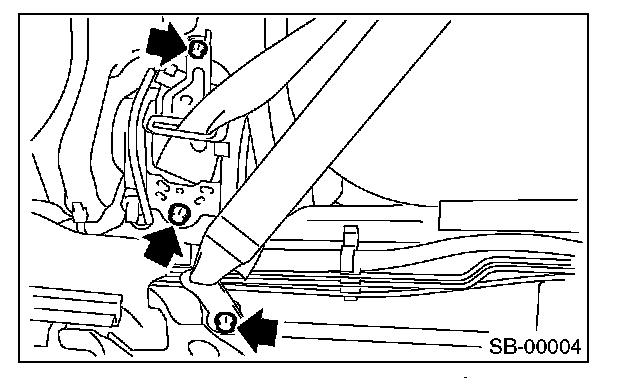

5. Turn over the floor mat to remove the bolts.
6. Disconnect the yellow connector of pretensioner harness, and remove the front outer belt.
7. Remove the center pillar upper trim.

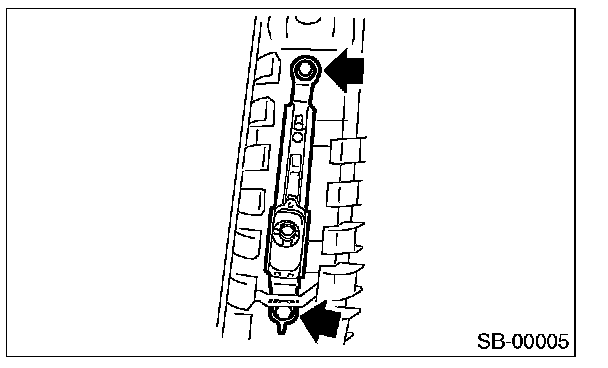

8. Remove the two bolts and adjustable anchor assembly.

CAUTION:
- Do not drop or apply any impact to the pretensioner.
- Pretensioner and bracket should be treated as an assembly. Do not attempt to disassemble it.

2. FRONT INNER BELT
1. Turn the ignition switch to OFF, disconnect the ground cable from battery, and wait for more than 20 seconds before starting work.
2. Remove the console box.
3. Disconnect the seat belt warning light connector under the seat.
4. Remove the clip of harness from seat rail.

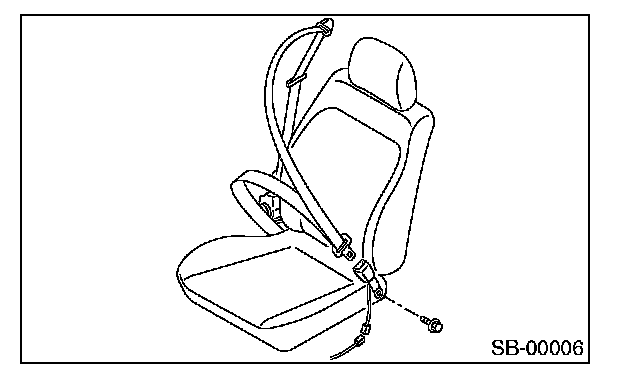

5. Remove the anchor bolt, and then remove the inner belt.

INSTALLATION

1. FRONT OUTER BELT
Install in the reverse order of removal.

CAUTION:
- The parts on right and left are not identical. Before installation, make sure that the correct part is used.
- Be careful not to twist the belts during installation.

Tightening torque:N.m (kgf-m, ft-lb)
T1: 7.5 (0.76, 5.5)
T2: 30 (3.1, 22)
T3: 53 (5.4, 39)

2. FRONT INNER BELT
Install in the reverse order of removal.

Tightening torque:N.m (kgf-m, ft-lb)
T1: 7.5 (0.76, 5.5)
T2: 30 (3.1, 22)
T3: 53 (5.4, 39)
