Oil Charger Pipe
Oil Charger PipeREMOVAL
1. Remove the air intake chamber. (Non-turbo model)
2. Remove the intercooler. (Turbo model)

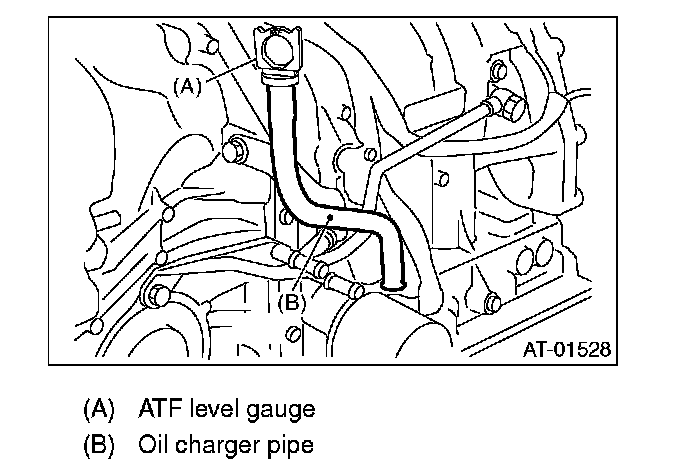

3. Remove the oil charger pipe, and then remove the O-ring from the flange side.
INSTALLATION

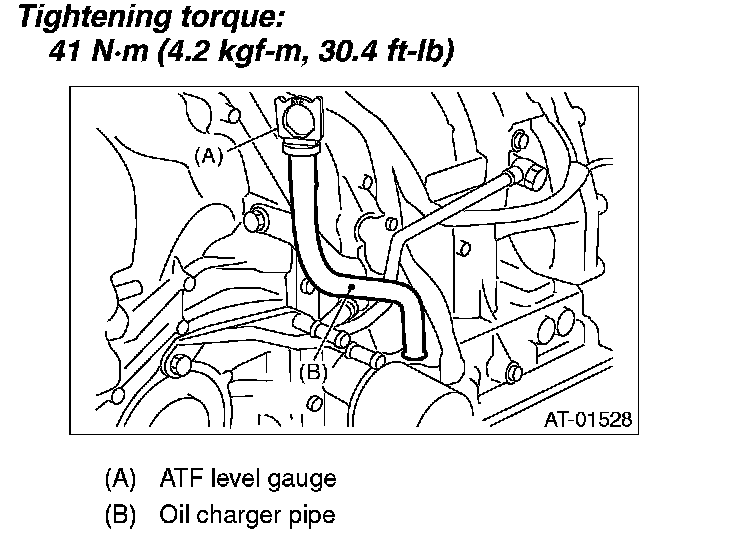

1. Install the oil charger pipe with a new O-ring.
Tightening torque: 41 Nm (4.2 kgf-m, 30.4 ft. lbs.)
2. Install the air intake chamber. (Non-turbo model)
3. Install the intercooler. (Turbo model)
INSPECTION
Make sure the oil charger pipe is not deformed or damaged.
