Engine Mount: Service and Repair

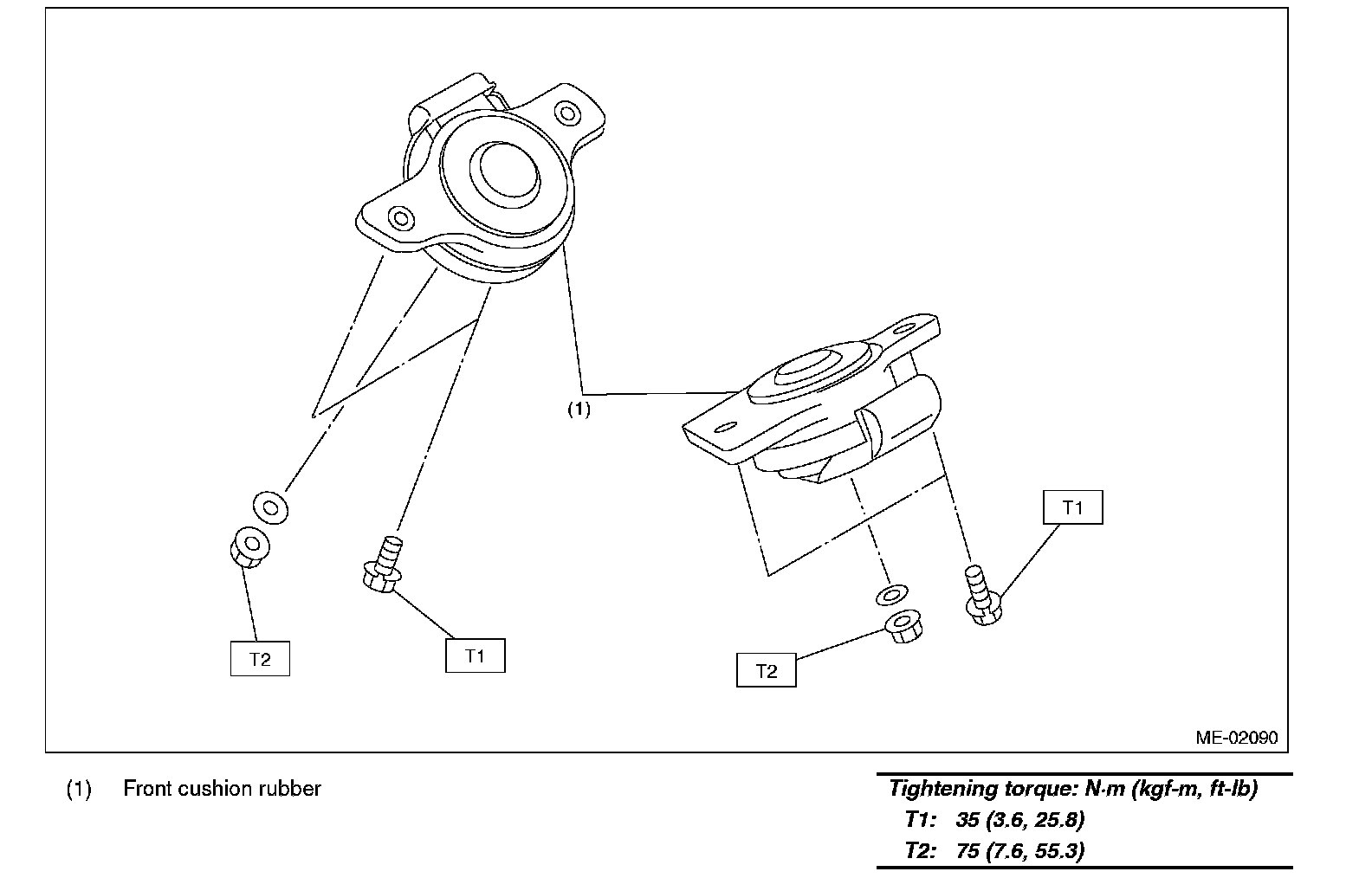

Engine Mounting

Engine Mounting:

REMOVAL
1. Remove the engine unit.
2. Remove the engine mounting from engine assembly.

INSTALLATION
Install in the reverse order of removal.

Tightening torque:
Engine mounting 35 Nm (3.6 kgf-m, 25.8 ft. lbs.)

INSPECTION
Make sure that no crack or other damages do not exist.
