Starter Motor Circuit
STARTER MOTOR CIRCUITCAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode. Reading and Clearing Diagnostic Trouble Codes

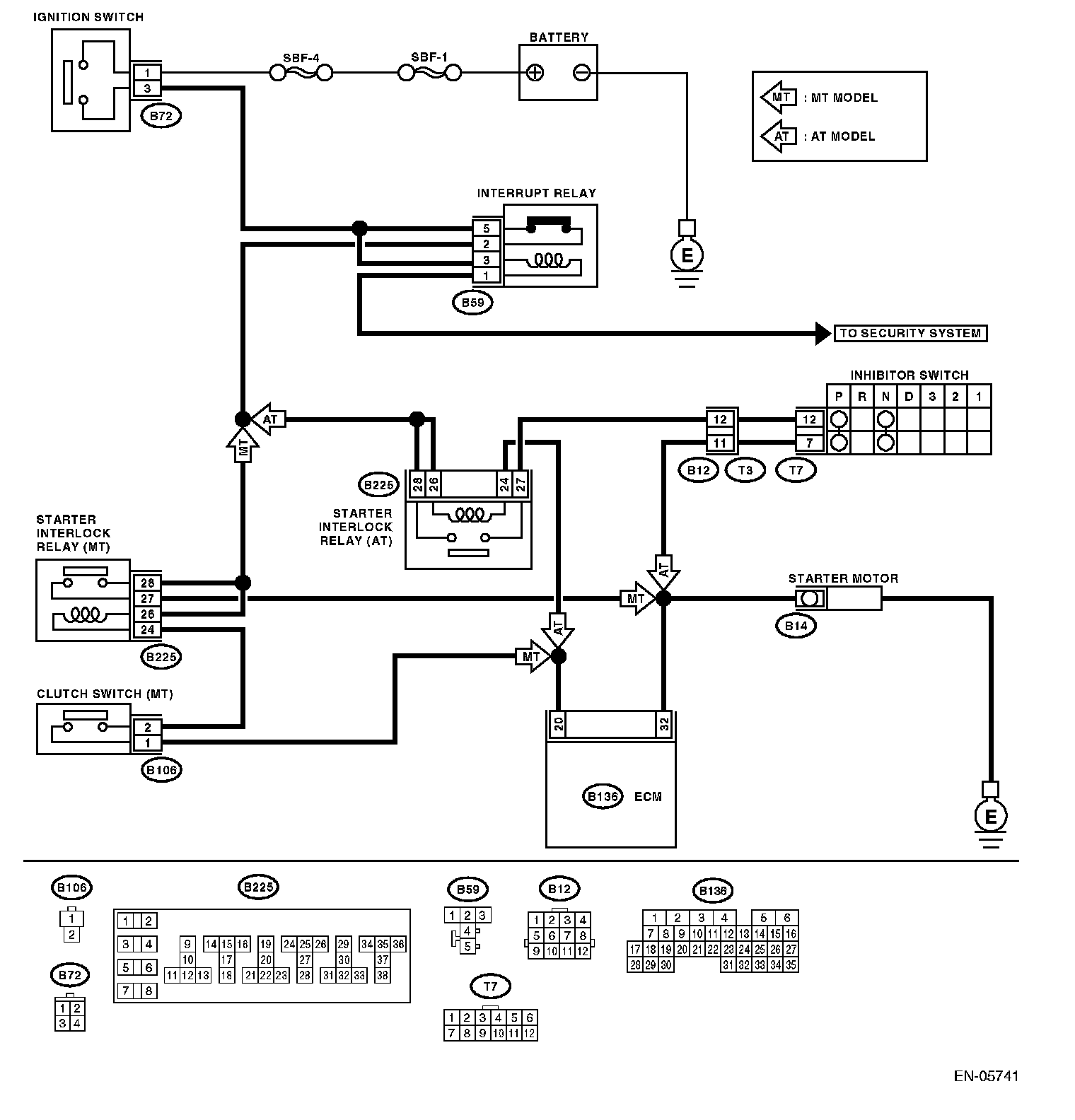

Wiring Diagram:

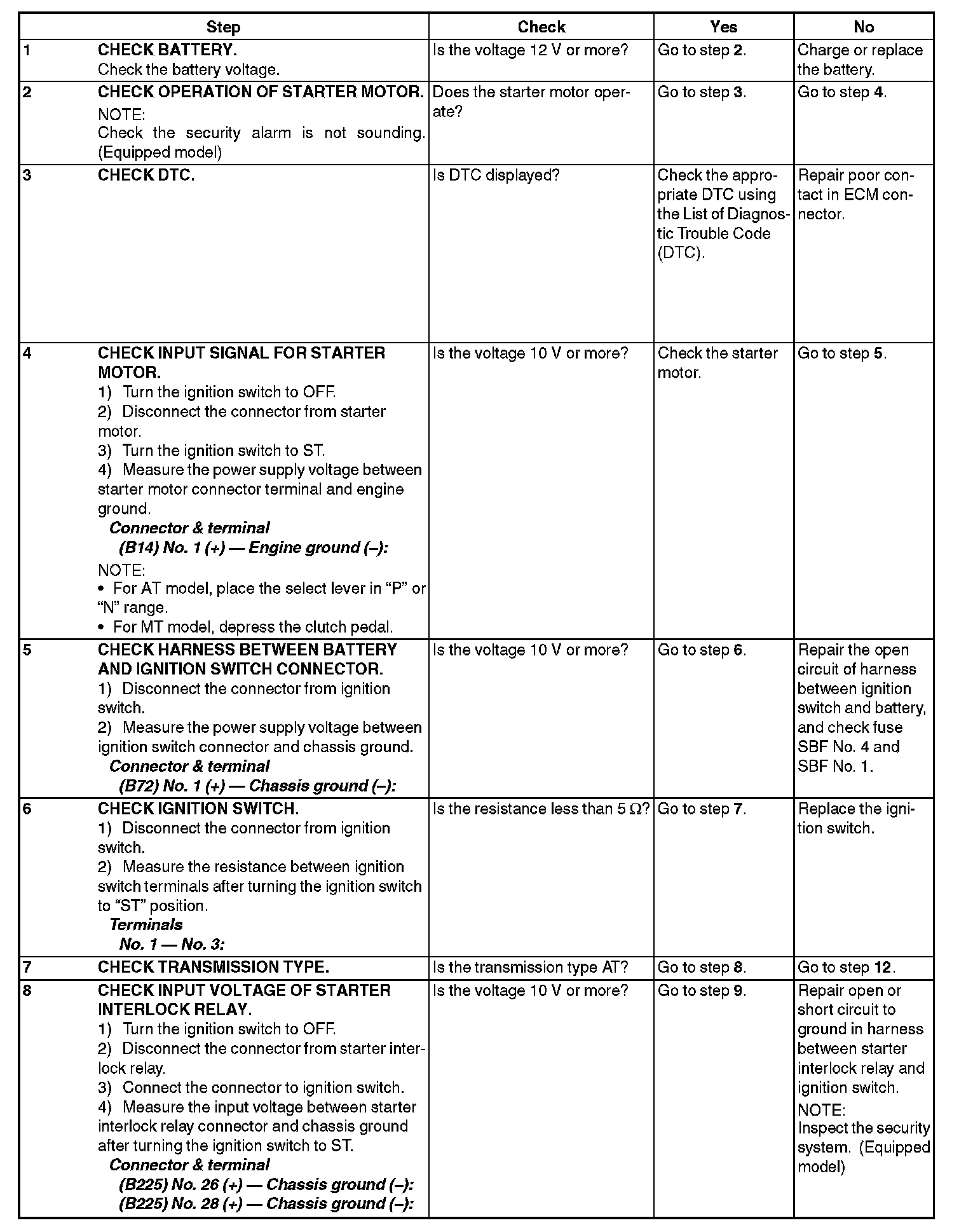

Step 1-8:

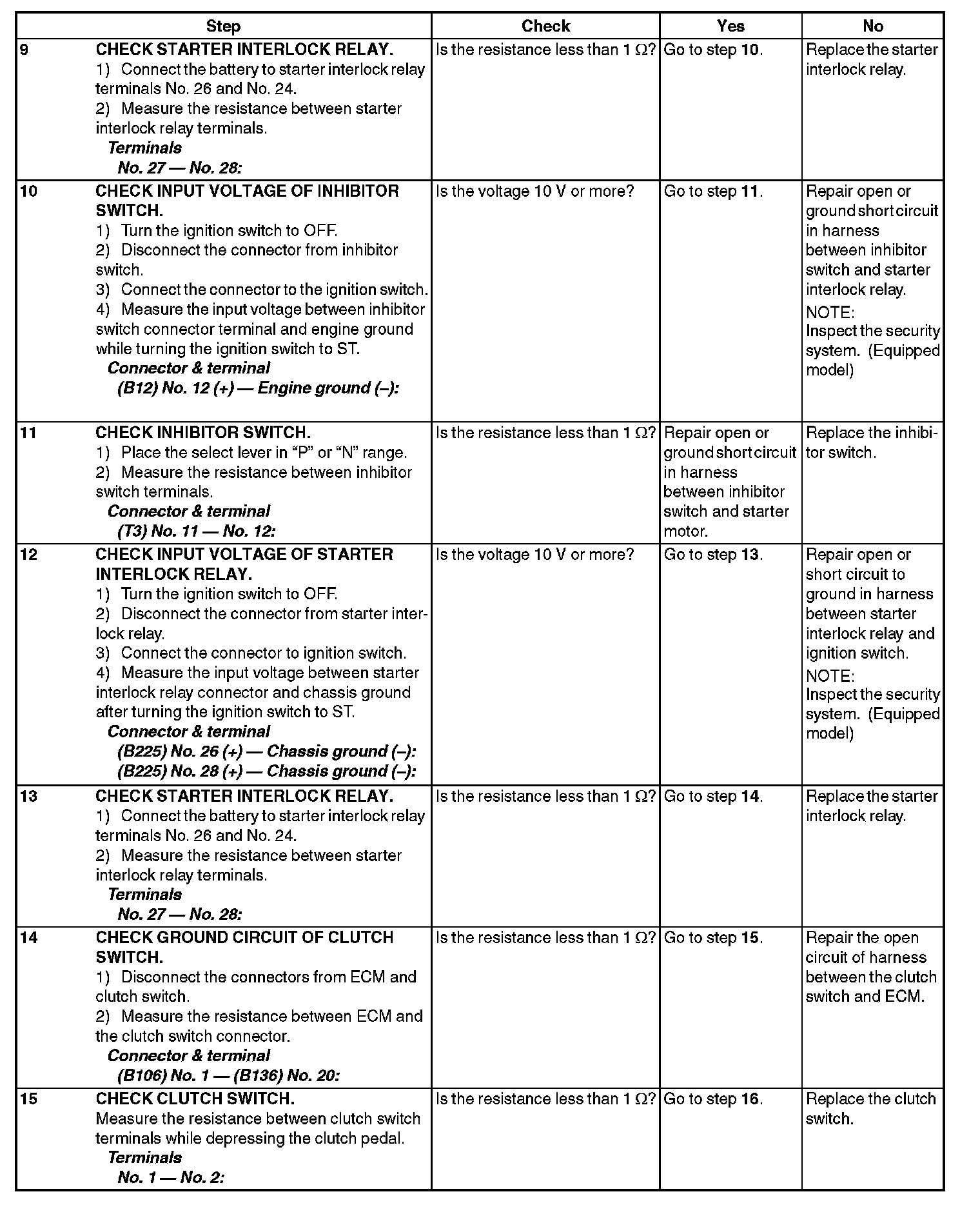

Step 9-15:
Step 15:
CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode. Reading and Clearing Diagnostic Trouble Codes
