Removal and Replacement

Washer Tank and Motor

REMOVAL
1. Open the front hood.
2. Disconnect the ground cable from the battery.
3. Remove the front bumper.

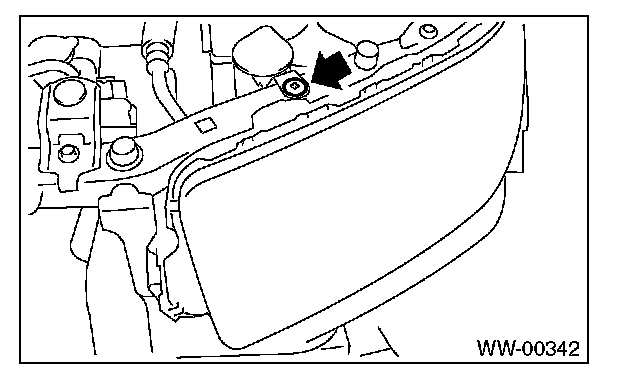

4. Remove the clip holding washer water supply tap.

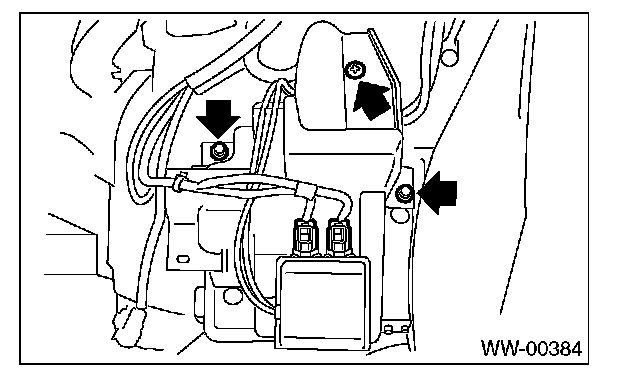

5. Remove three bolts, hose and connector, and then remove the washer tank.






INSTALLATION
Install in the reverse order of removal.

Tightening torque: 6.0 N.m (0.61 kgf.m, 4.4 ft.lb)
