Oil Charge Pipe

Oil Charge Pipe

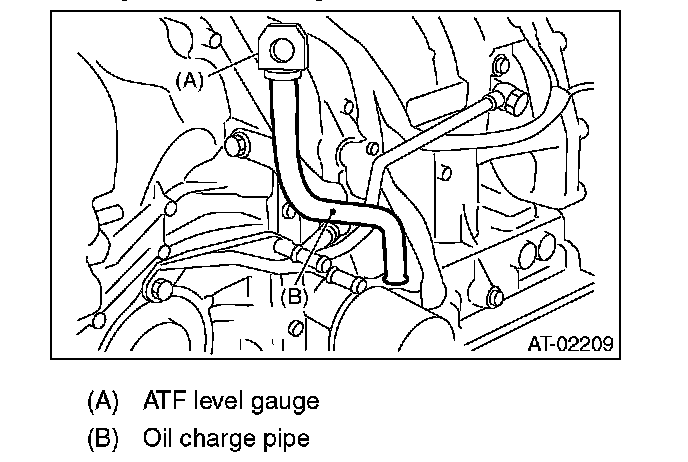

REMOVAL
1) Remove the air intake chamber.

2) Remove the oil charge pipe, and then remove the O-ring from the flange side.

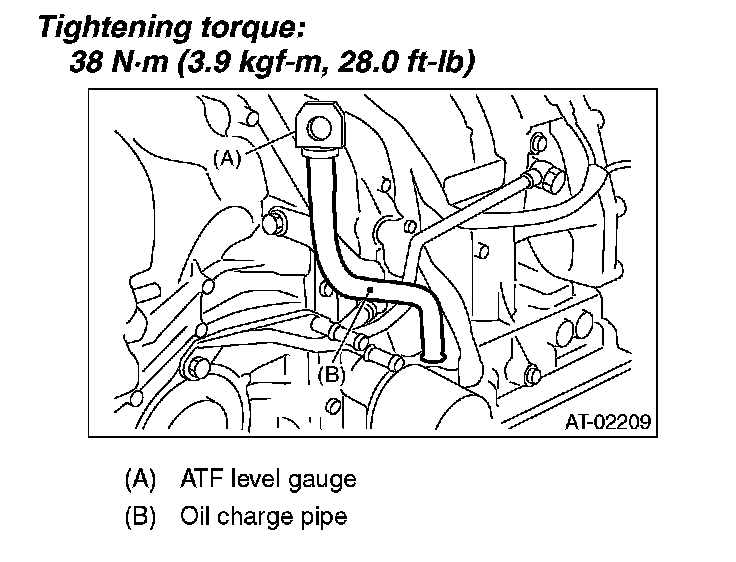

INSTALLATION
1) Apply ATF on a new O-ring and install together with the oil charge pipe.

NOTE: Use a new bolt.





2) Install the air intake chamber.

INSPECTION
Make sure the oil charge pipe is not deformed or damaged.
