Diagnostic Connector - ABS: Testing and Inspection

Control Module I/O Signal

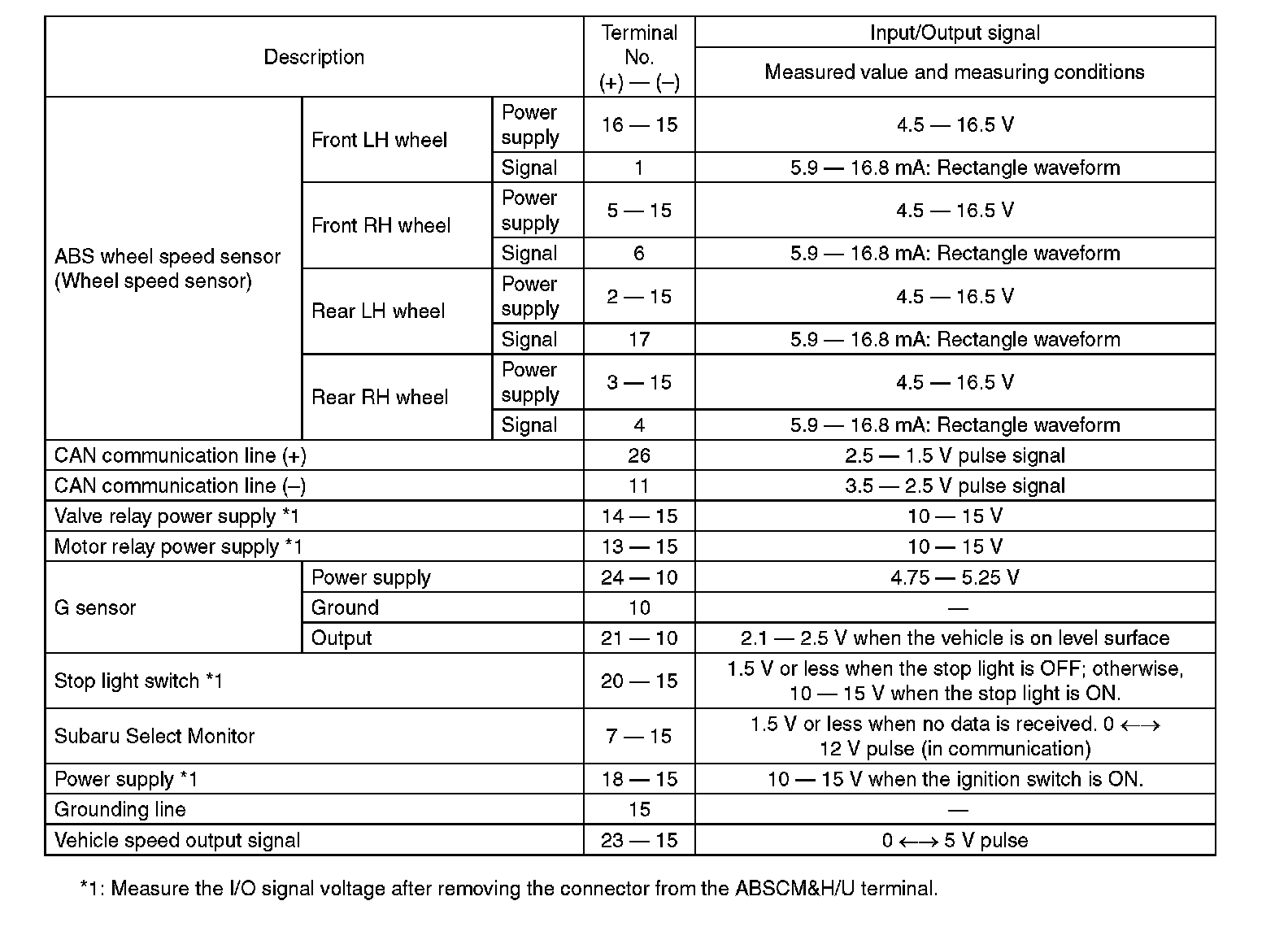

ELECTRICAL SPECIFICATION





NOTE:

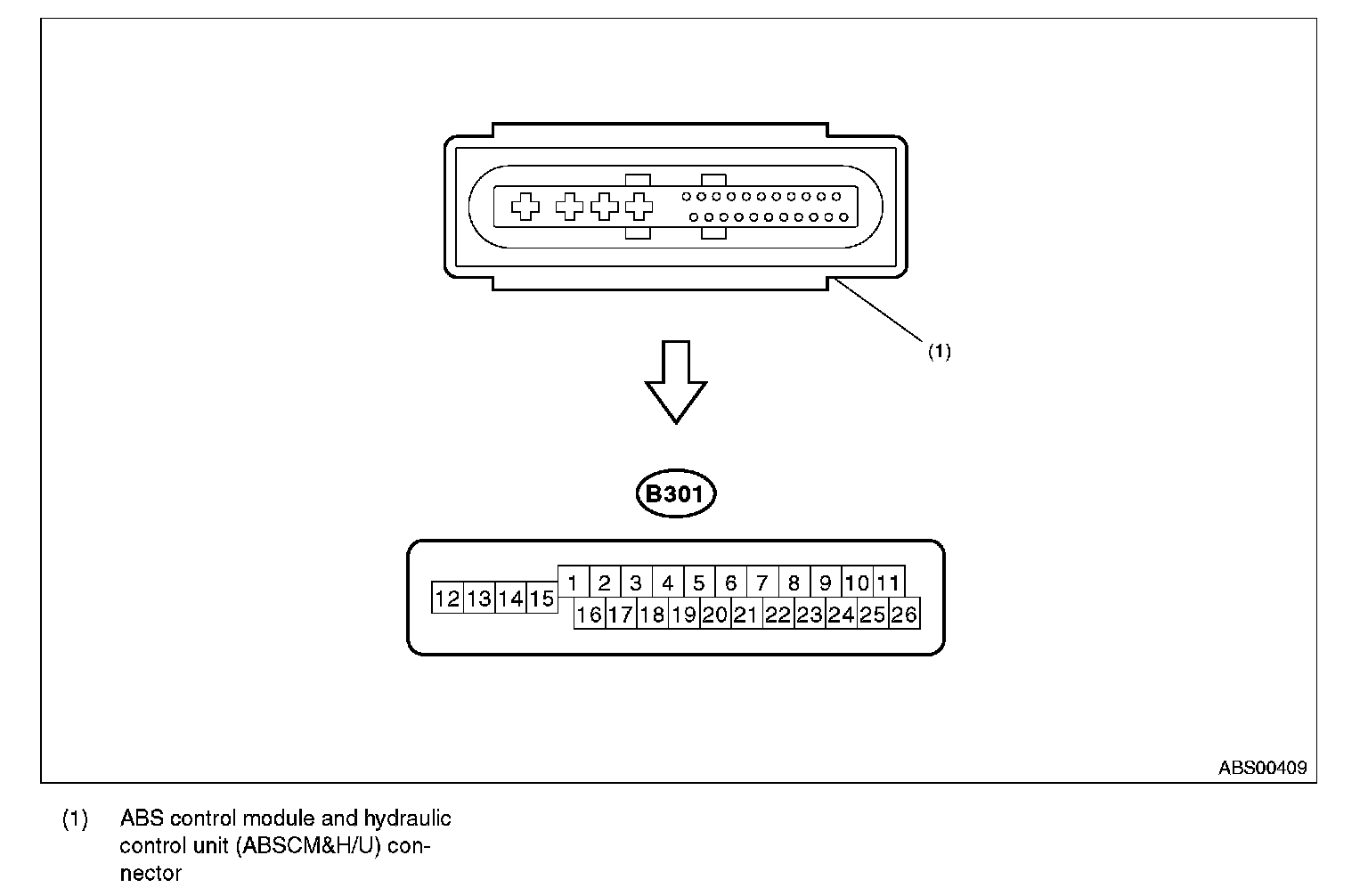

- Terminal numbers in ABSCM&H/U connector are shown in the figure.
- ABS warning light illuminates when the connector is removed from ABSCM&H/U.

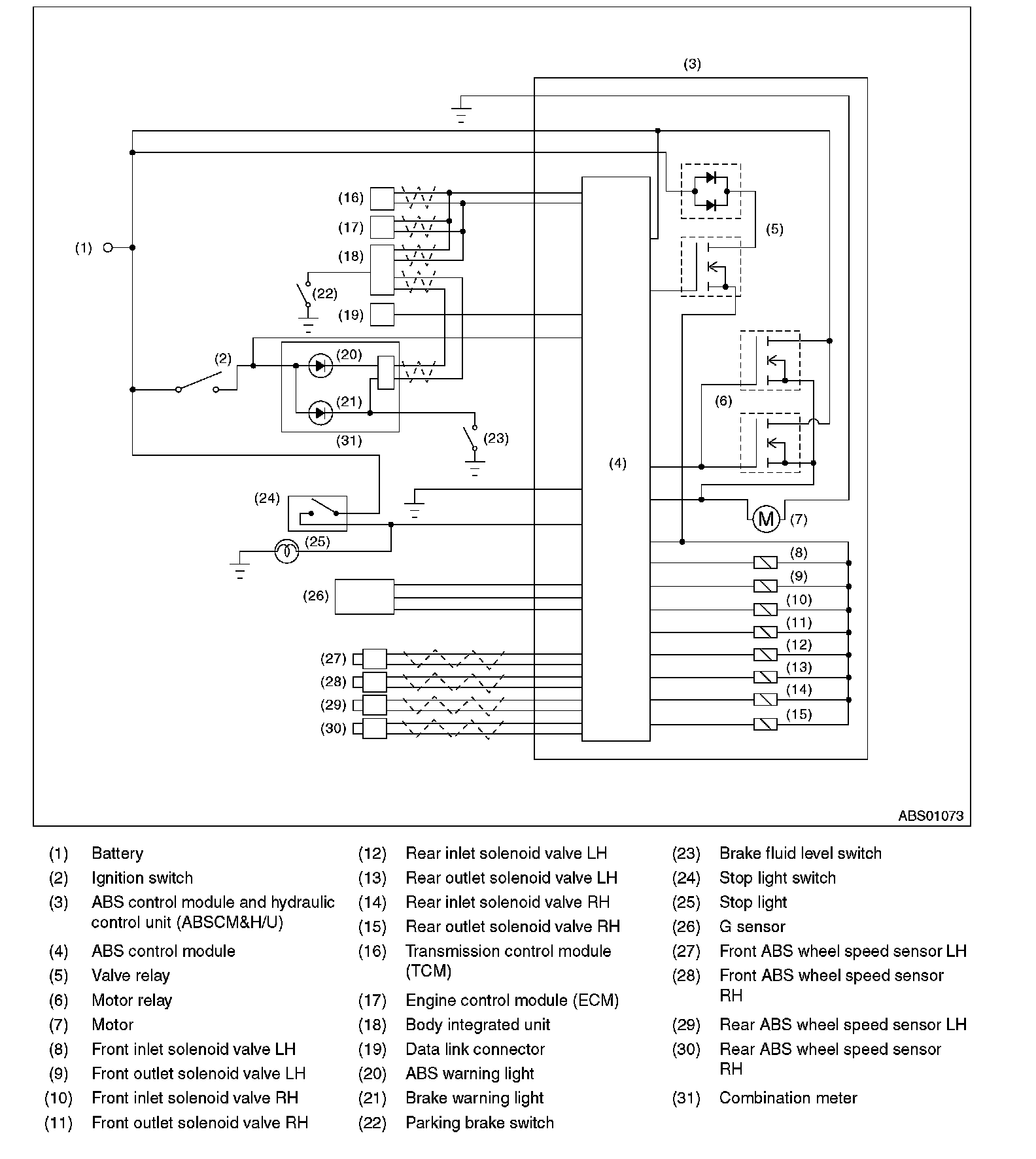

WIRING DIAGRAM
