Inspection

Clock System

INSPECTION

1. SYMPTOM CHART

Symptom Chart:

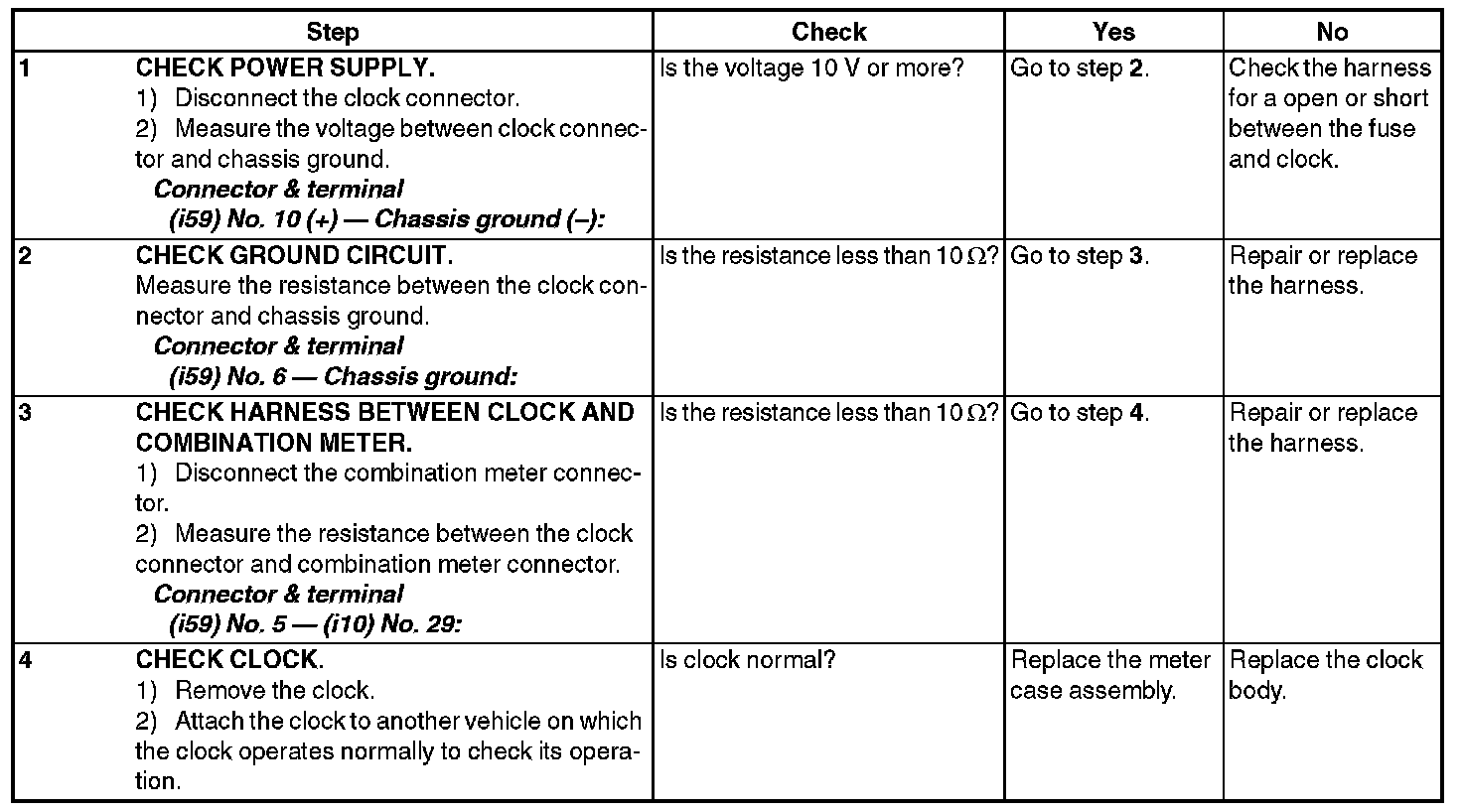

2. CHECK POWER SUPPLY AND GROUND CIRCUIT AND COMMUNICATION CIRCUIT

Step 1-2:

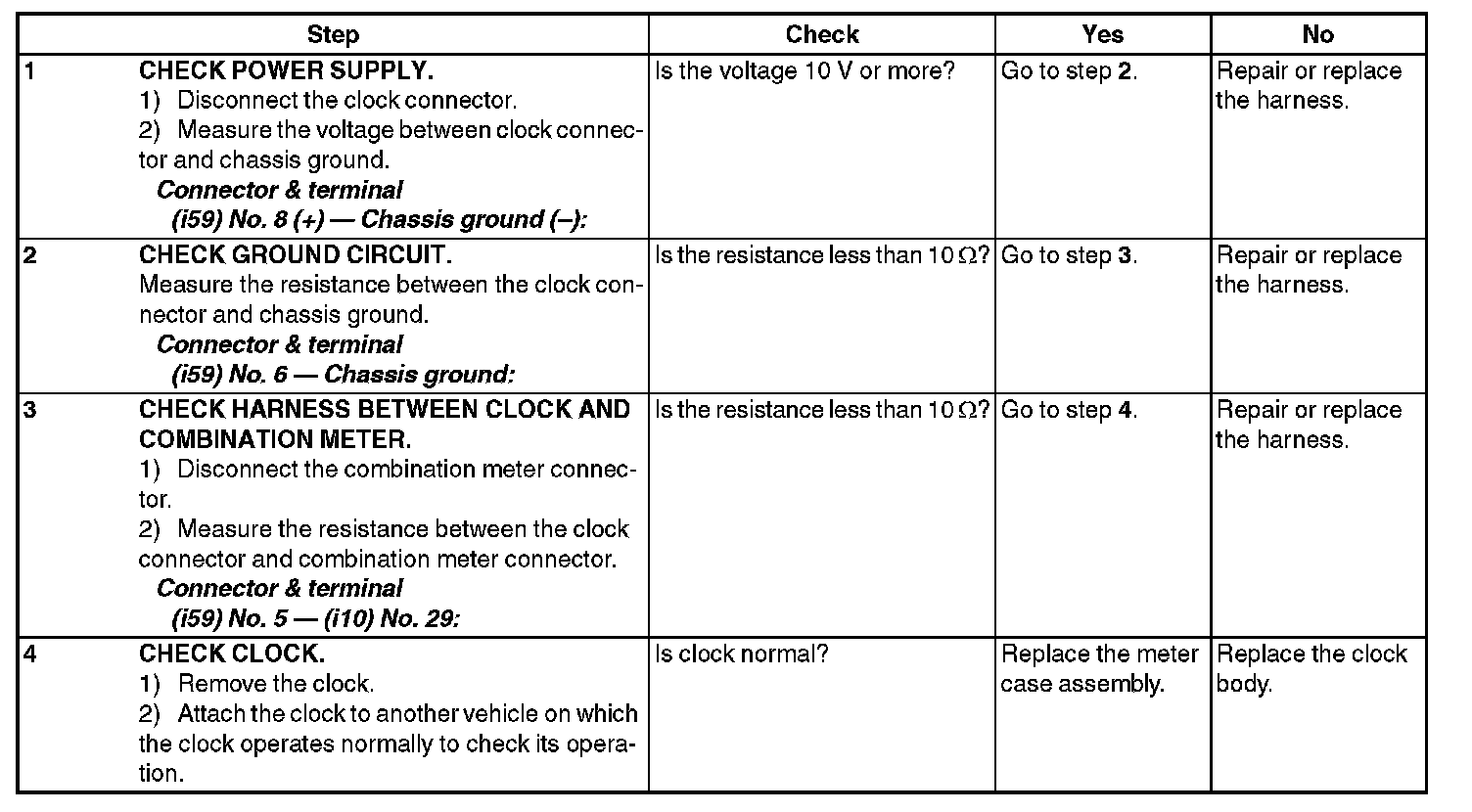

3. CHECK CLOCK SYSTEM COMMUNICATION CIRCUIT

Step 1-4:

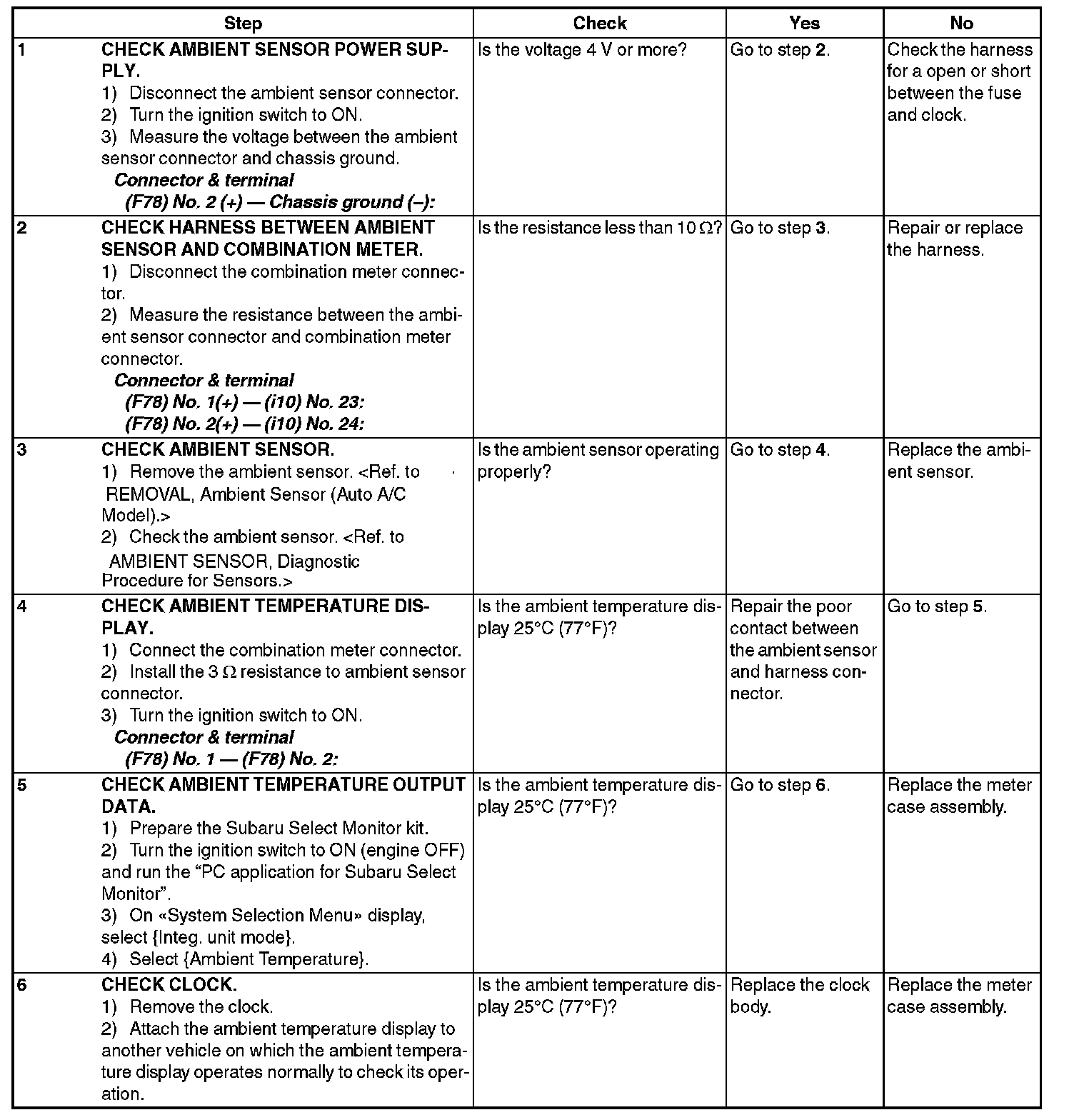

4. CHECK AMBIENT TEMPERATURE METER SYSTEM COMMUNICATION CIRCUIT

Step 1-6:

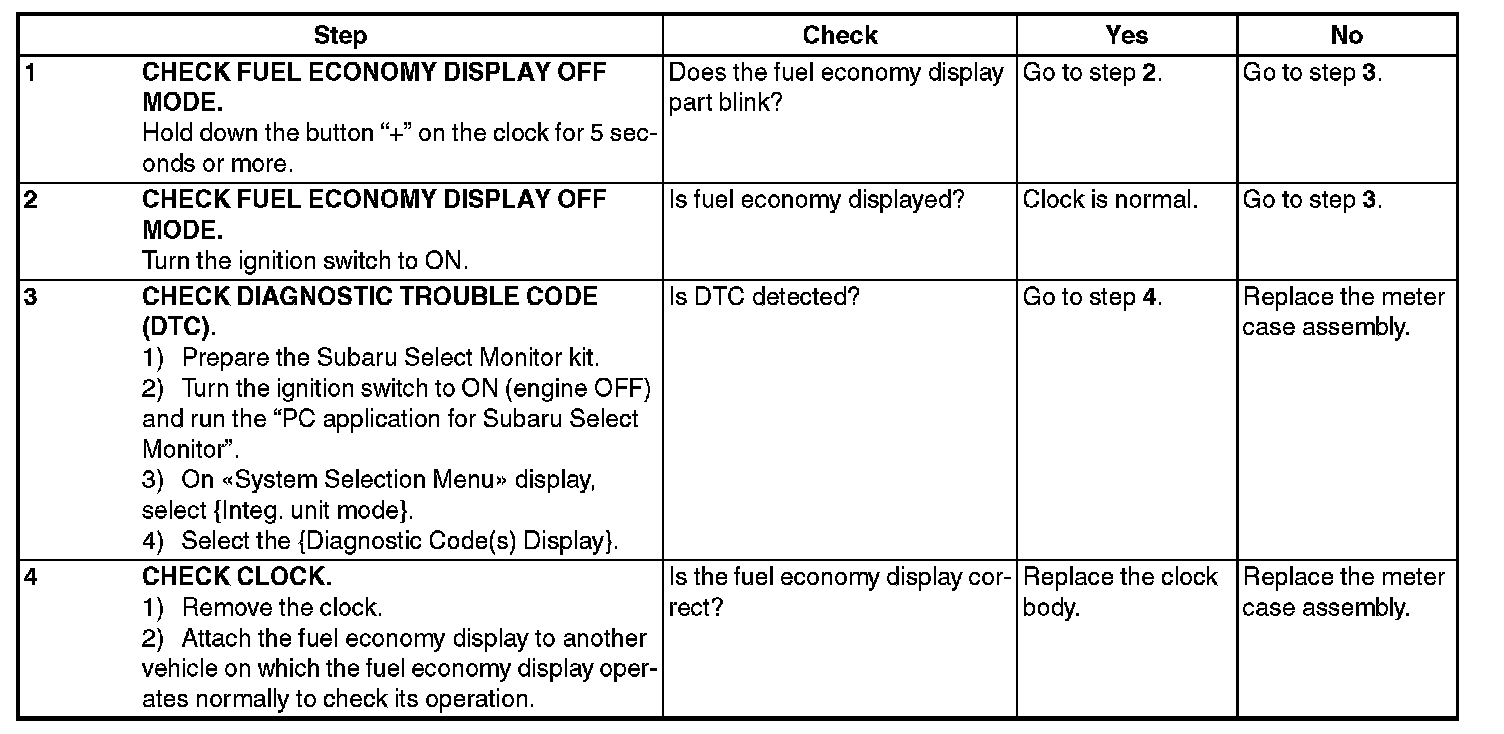

5. CHECK COMMUNICATION CIRCUIT OF FUEL ECONOMY SYSTEM

Step 1-4:
