Front Washer Nozzle

The Content of This Article / Image Reflects Manual Update # 18-36-09 Dated 01/11/09


Front Washer Nozzle

INSPECTION

1. VISUAL CHECK
Check the following items, if a failure is found replace the parts.
- Make sure the nozzle and hose are not clogged.
- Make sure the hose is not bent.

2. SPRAY POSITION CHECK
1. Turn the wiper switch to OFF position.

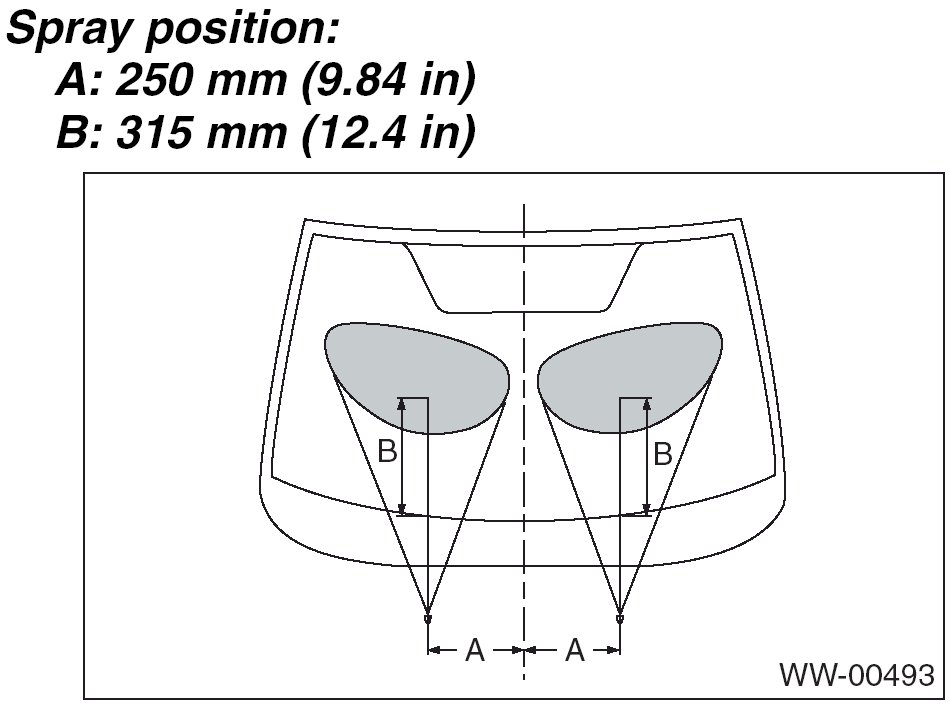

2. While the vehicle is at a standstill, make sure that the washer injection position is as shown in the figure.
3. After check, if the spray position is largely different from the position, replace with a new washer nozzle.
