Clutch Fluid Air Bleeding

Clutch Fluid Air Bleeding

PROCEDURE

NOTE:
Bleed air from the oil line with help of a co-worker.

1) Remove the air intake chamber.

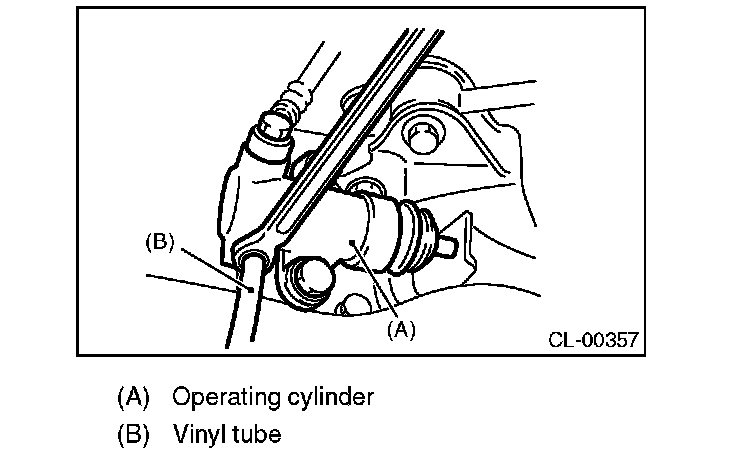

2) Fit one end of a vinyl tube into the air bleeder of the operating cylinder, and put the other end into a clutch fluid container.

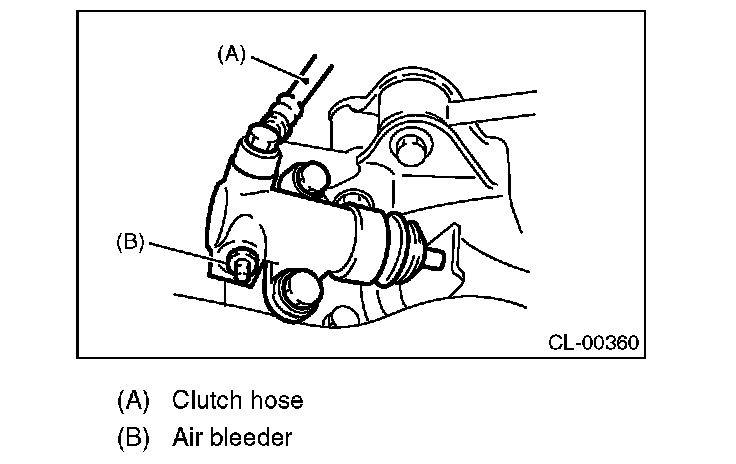

3) Slowly depress the clutch pedal several times and keep it depressed. Then open the air bleeder to discharge air together with the clutch fluid.
Release the air bleeder for 1 or 2 seconds. Next, close the air bleeder, and slowly release the clutch pedal.

CAUTION:
Cover the air bleeder with cloth to prevent clutch fluid from being splashed on surrounding parts when loosening the bleeder.





4) Repeat procedure 3), until there are no more air bubbles appearing from the air bleeder.

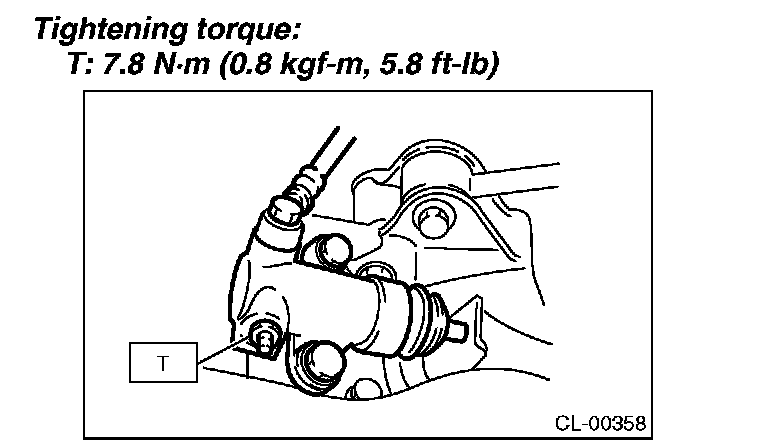

5) Tighten the air bleeder.





6) After stepping on the clutch pedal, make sure that there are no leaks evident in the entire clutch system.
7) After bleeding the air from clutch system, ensure that the clutch operates properly.
8) Install the air intake chamber.
