Thermostat, Engine Cooling
>>
Thermostat (FA20/Transmission A/T)
Thermostat (FA20/Transmission A/T)
Thermostat (FA20/transmission AT)

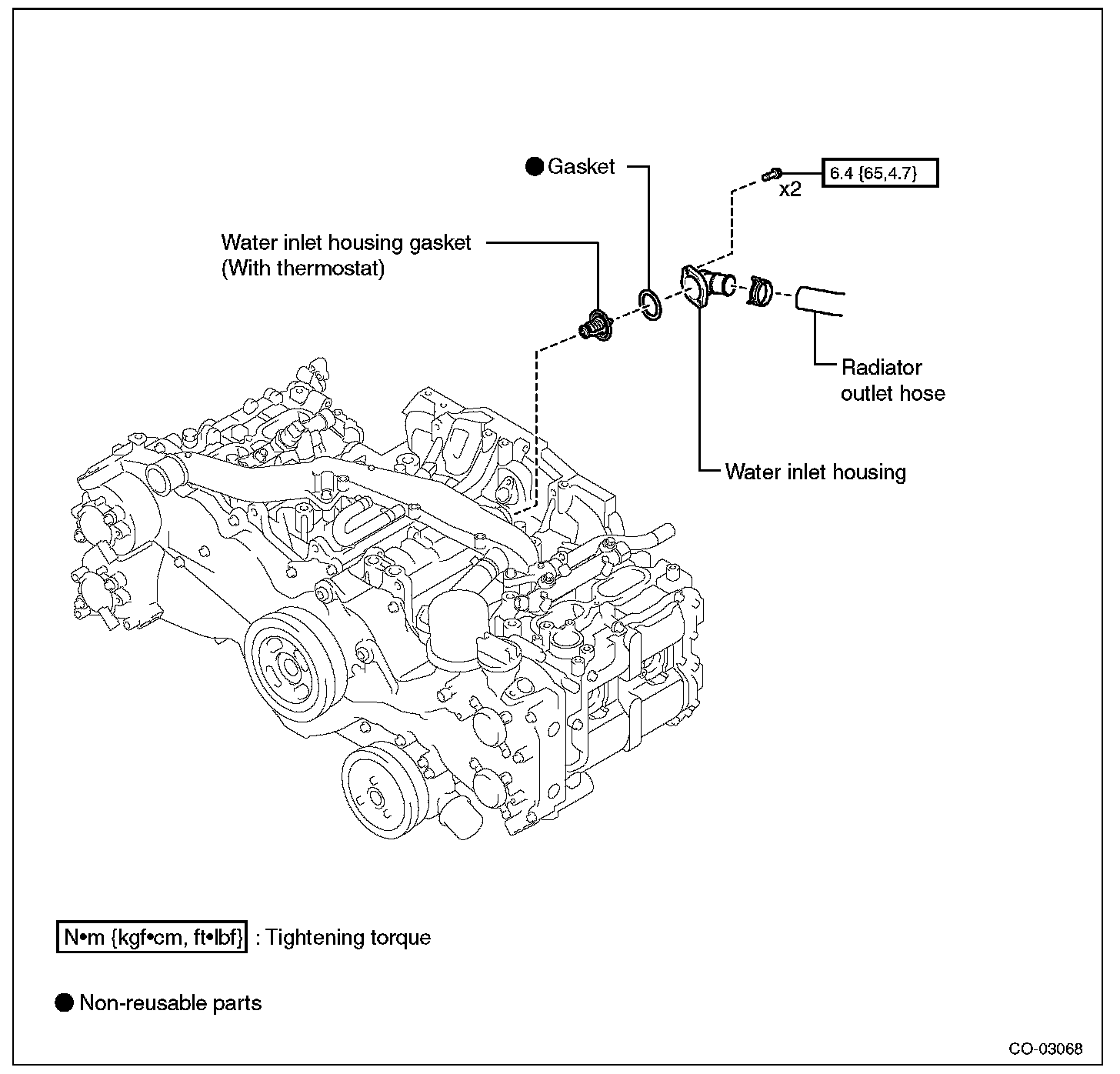

Exploded view
