Disassembly

Disassembly





1. Removal of guide plate

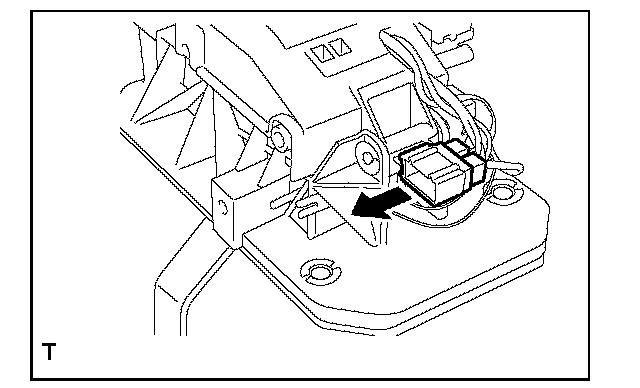

(1) Use a flat tip screwdriver to release the claws, and disconnect the connector.

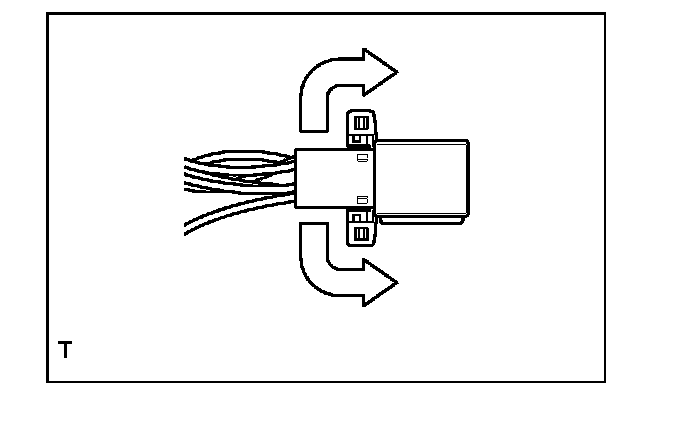

(2) Use a precision screwdriver (flat tip) to release the connector lock.

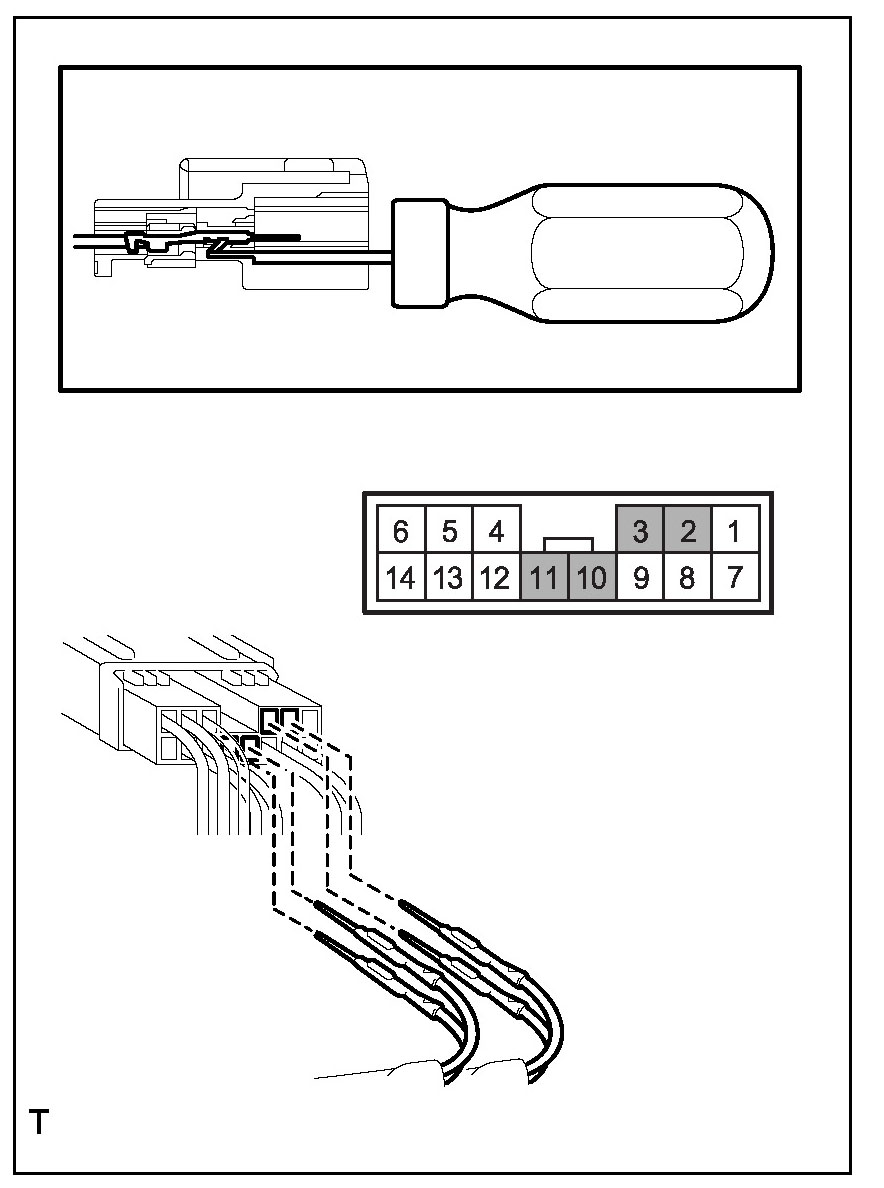

(3) Use a precision screwdriver (flat tip) to pull out the connectors No.2 and No.3 of the shift lock solenoid connector and the connectors No.10 and No.11 of the manual mode switch connector.

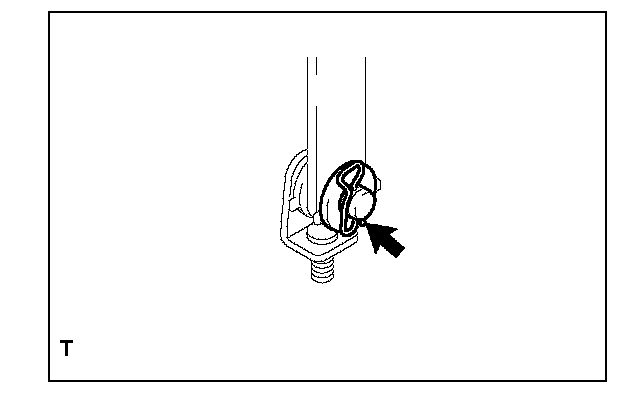

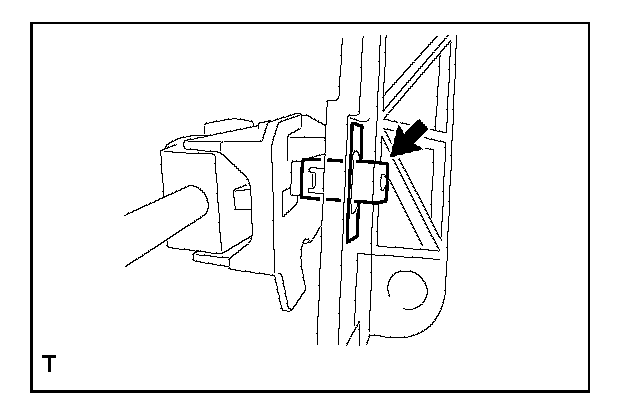

(4) Remove the clamp push nut and the shaft guide pin.

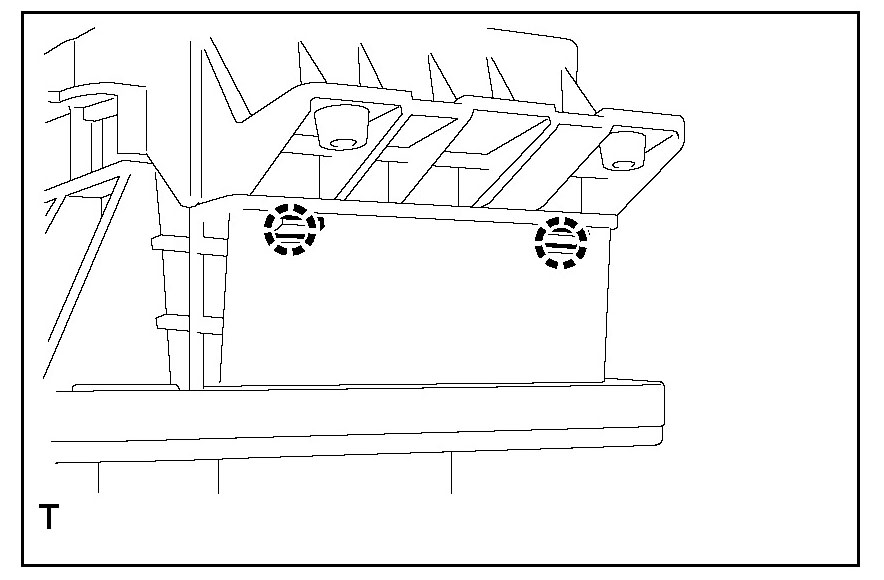

(5) Release the 2 claws to remove the guide plate from the base plate.





2. Removal of solenoid unit

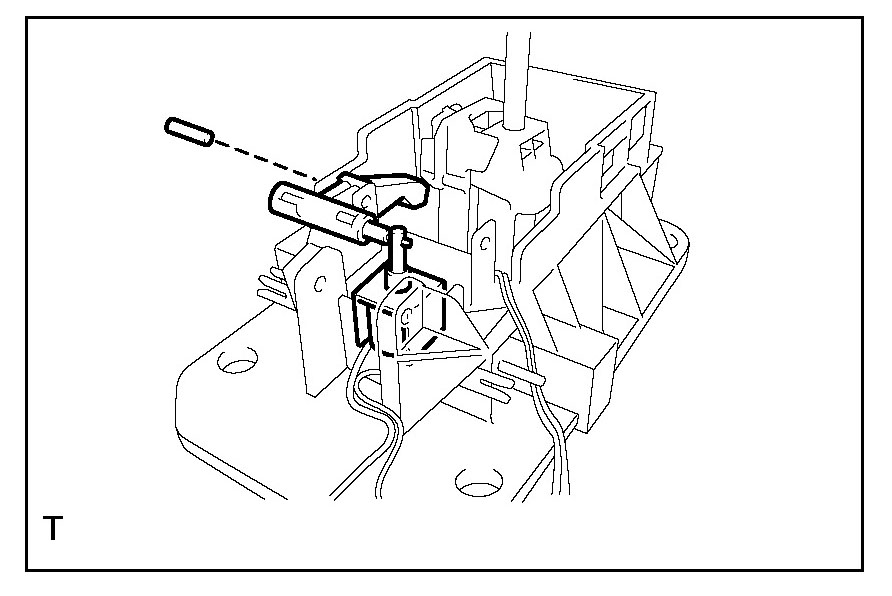

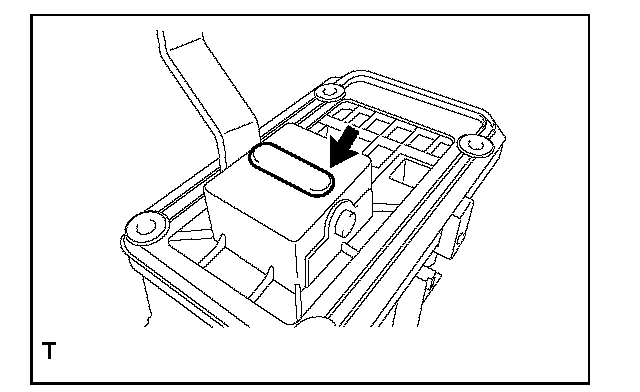

(1) Pull out the pin and remove the solenoid unit together with the shift lock release arm as a unit.
(2) Remove the shift lock release arm from the solenoid unit.





3. Removal of D rod

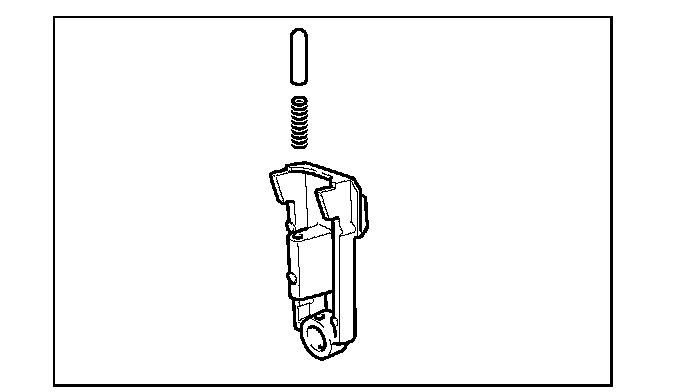

(1) Remove the D lock clamp.
(2) Remove the D lock spring and the D rod.
(3) Remove the cushion D lock from the D rod.
(4) Remove the bushing D lock.





4. Removal of grommet
(1) Remove the grommet from the base plate.





5. Removal of arm COMPL

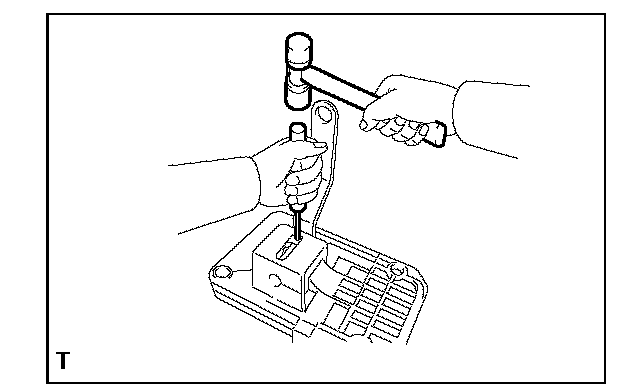

(1) Use a pin punch 3 and hammer to drive out a pin.

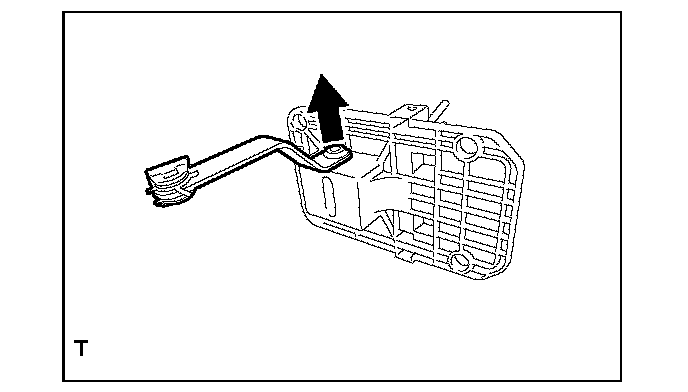

(2) Pull out the arm COMPL from the base plate.





6. Removal of select lever COMPL

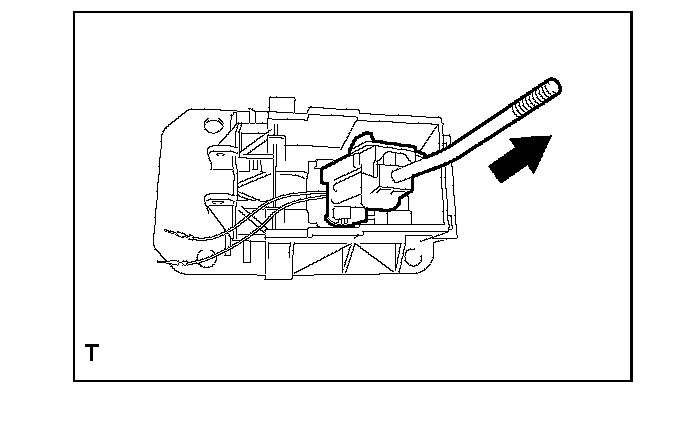

(1) Remove the select lever COMPL together with the select arm bracket as a single unit.





7. Removal of select lever arm bracket

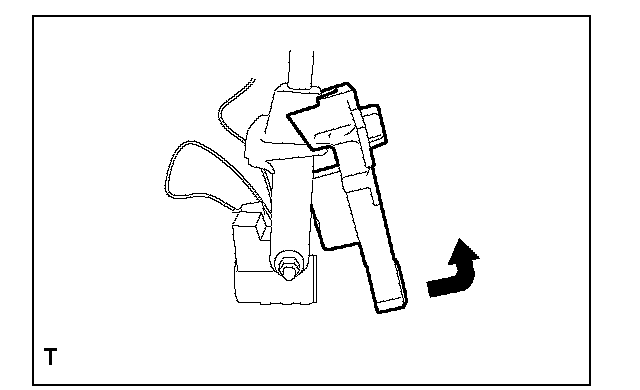

(1) Remove the select lever COMPL from the select arm bracket.





(2) Remove the rod and the spring from the select arm bracket.





8. Removal of gasket

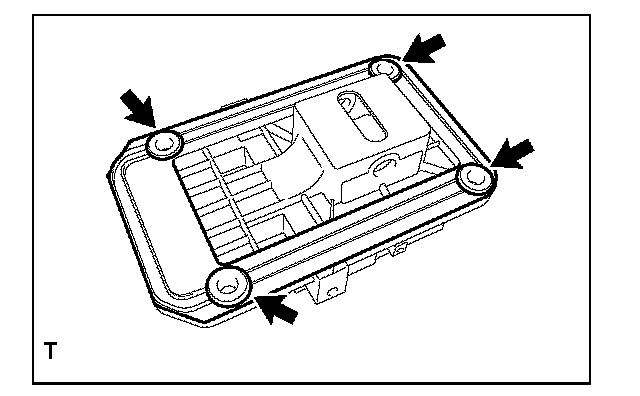

(1) Remove 4 spacer plates to remove the gasket.





9. Removal of swivel

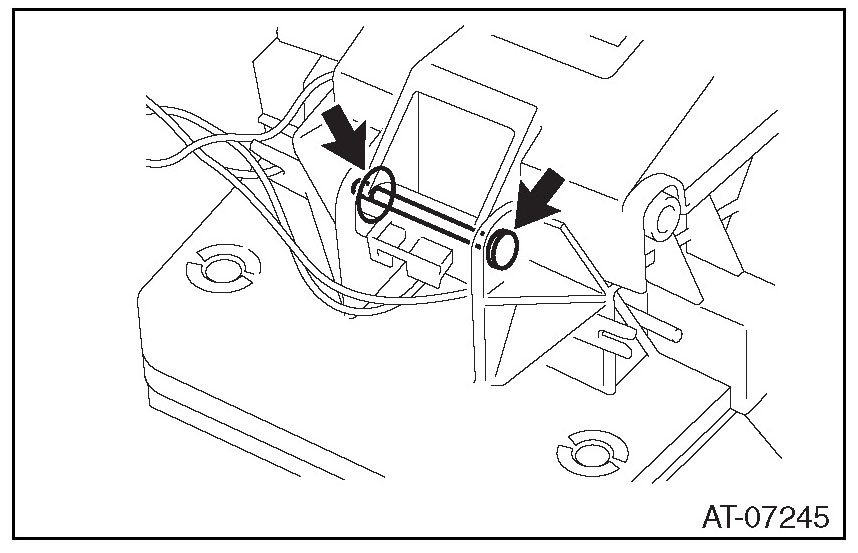

(1) Remove the snap pin, then remove the 2 washers, bushing, spacer, and swivel.
