Disassembly

Disassembly

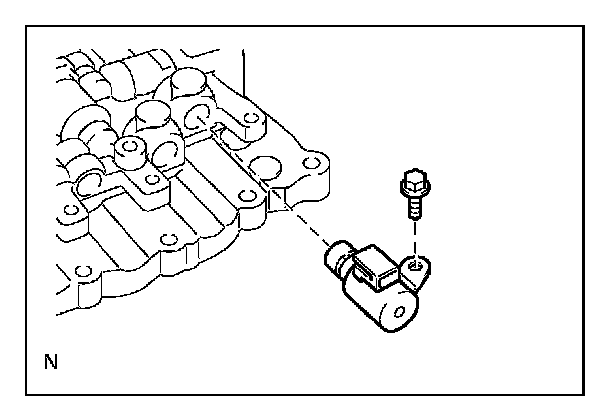

1. Removal of transmission 3 way solenoid ASSY (SR)
(1) Remove the bolt to remove the transmission 3 way solenoid ASSY (SR).

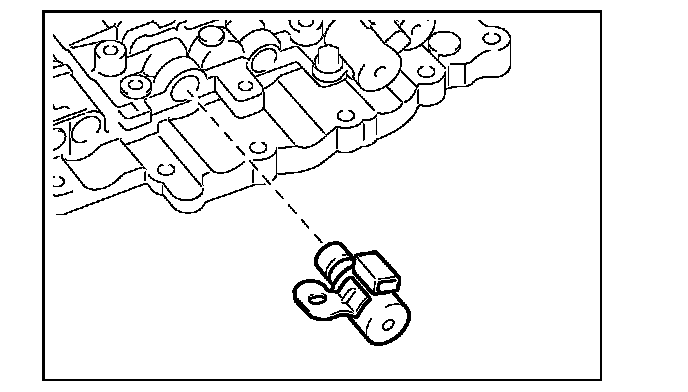

2. Removal of transmission 3 way solenoid ASSY (S4)
(1) Remove the bolt to remove the transmission 3 way solenoid ASSY (S4).

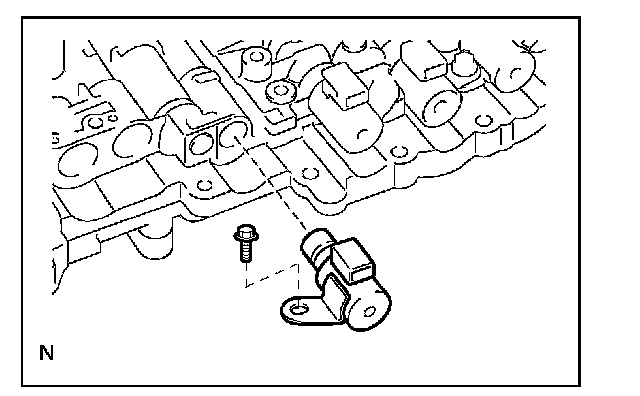

3. Removal of transmission 3 way solenoid ASSY (S1)
(1) Remove the transmission 3 way solenoid ASSY (S1).

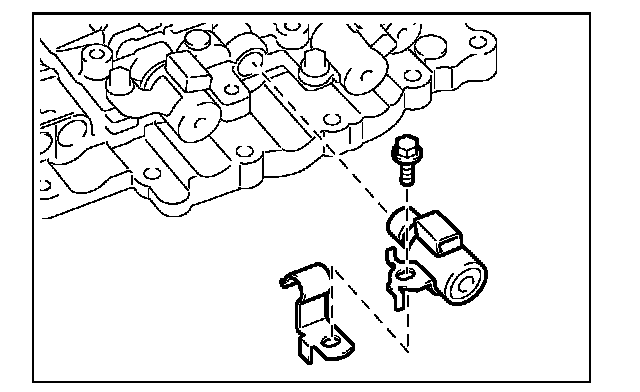

4. Removal of transmission 3 way solenoid ASSY (S2)
(1) Remove the transmission 3 way solenoid ASSY (S2).

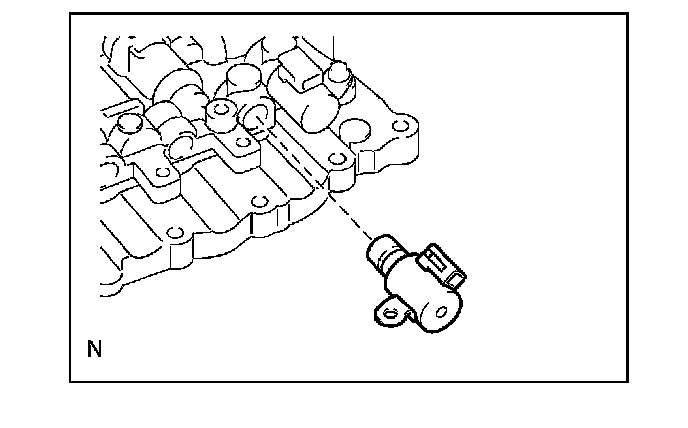

5. Removal of transmission 3 way solenoid ASSY (S3)
(1) Remove the bolt to remove the transmission 3 way solenoid ASSY (S3).
