Removal

Removal

1. Disconnection of battery ground terminal
2. Removal of exhaust pipe SUB-ASSY FR
3. Draining of automatic transmission fluid
(1) Remove the drain plug and gasket to drain automatic transmission fluid.
(2) Install the drain plug via a new gasket.
Standard value:T=20Nm {204kgf-cm} {14.8ft-lbf}
4. Removal of transmission oil pan SUB-ASSY (ATM)
5. Removal of valve body oil strainer ASSY
6. Disconnection of transmission wire





7. Removal of transmission valve body ASSY

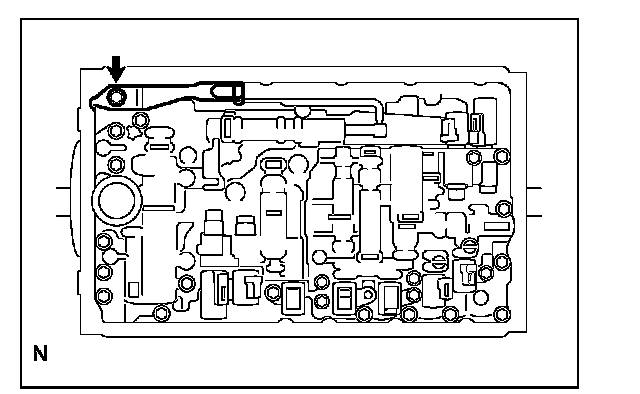

(1) Remove the bolt and then remove the detent spring cover and detent spring.

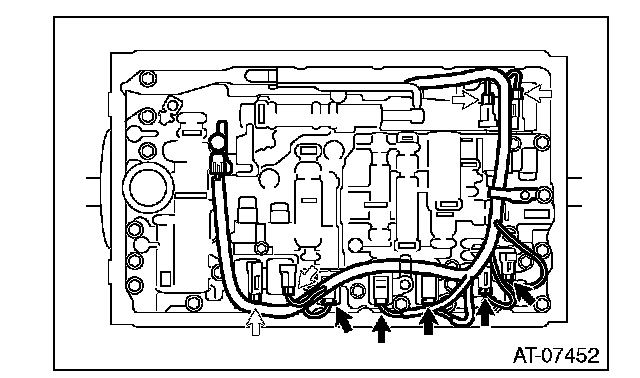

(2) Remove 19 bolts from the transmission valve body ASSY.

NOTE:
Use a thin-tipped flat tip screwdriver for the connector indicated by the white arrow to disconnect the control solenoid connector.

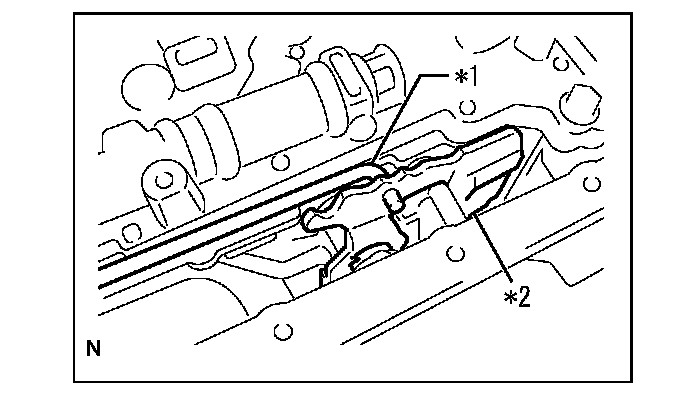

(3) Remove the lever pin from the manual valve to remove the transmission valve body ASSY.

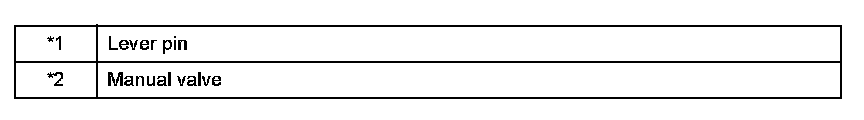

Captions in illustration

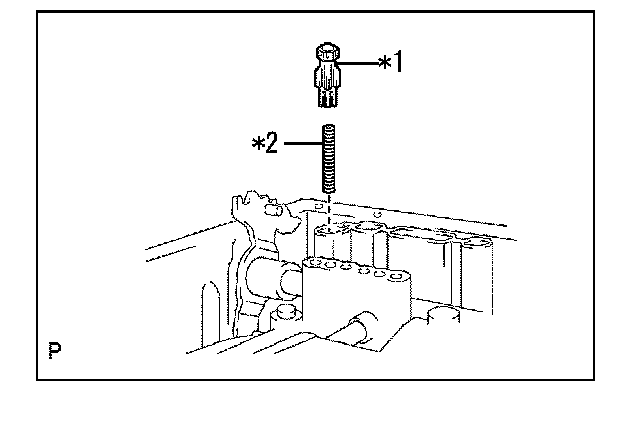

(4) Remove the check ball body and spring.

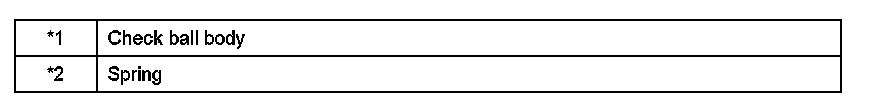

Captions in illustration





CAUTION:
Be careful not to drop and lose the check ball body.
