Removal

Removal

1. Removal of automatic transmission ASSY

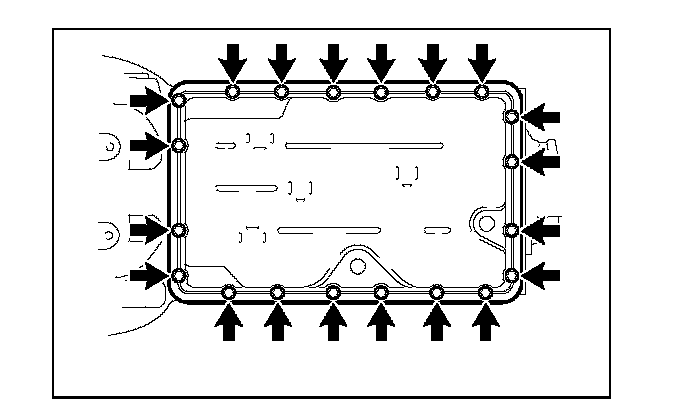

2. Removal of transmission oil pan SUB-ASSY (ATM)
(1) Remove 20 bolts to remove the transmission oil pan SUB-ASSY (ATM).
(2) Remove the gasket.

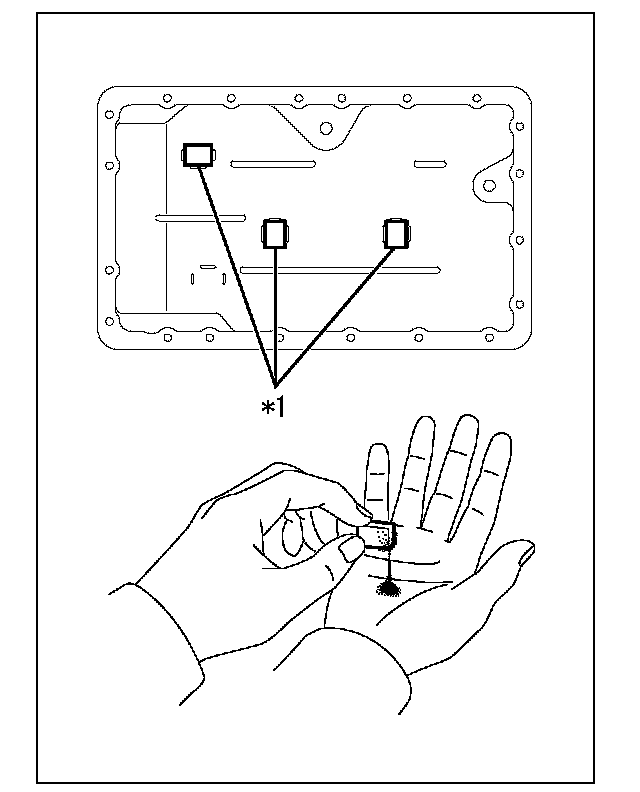

(3) Remove 3 magnets from the transmission oil pan SUB-ASSY (ATM).

Captions in illustration





CAUTION:
^ Wash metal particles, sludge, etc. off the inner surface of the transmission oil pan SUB-ASSY (ATM).
^ Clean metal particles off the magnets.





3. Removal of valve body oil strainer ASSY

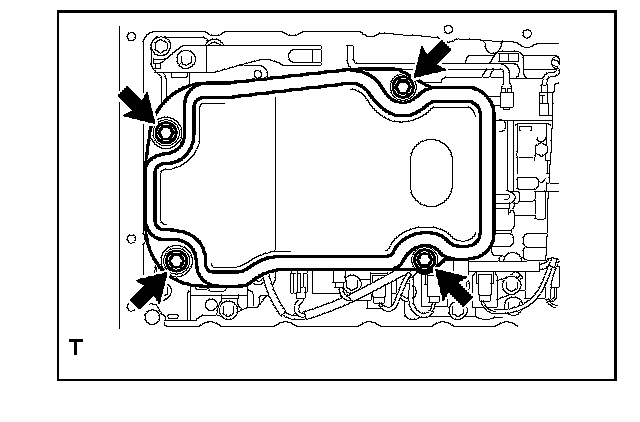

(1) Remove 4 bolts to remove the valve body oil strainer ASSY.

CAUTION:
Set a tray under it to receive discharged transmission fluid.

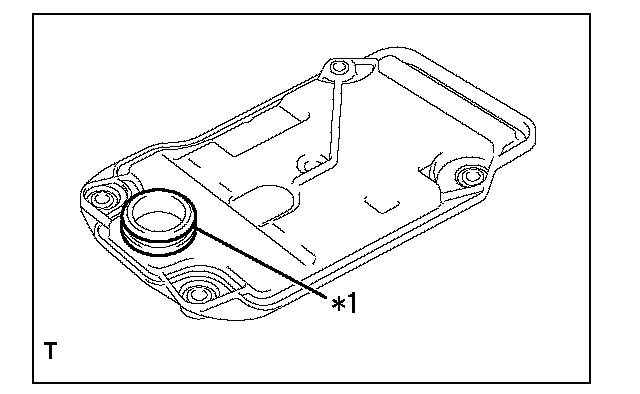

(2) Remove the O-ring from the valve body oil strainer ASSY.

Captions in illustration








4. Disconnection of transmission wire

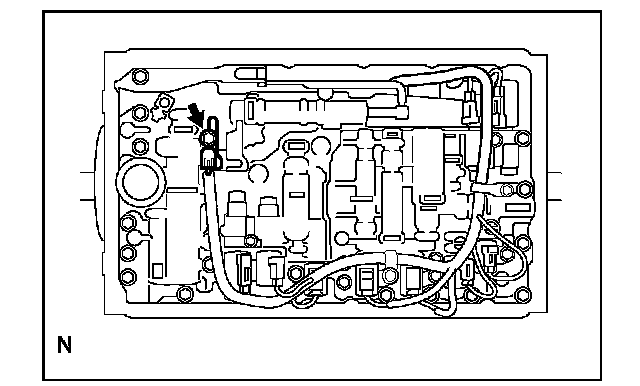

(1) Remove the bolt and lock plate, and then disconnect the oil temperature sensor from the transmission valve body ASSY.

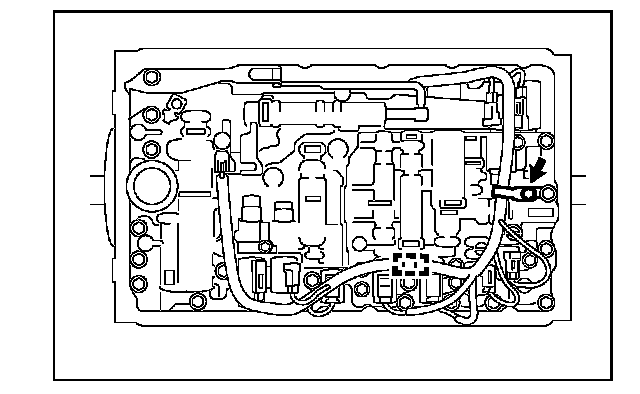

(2) Remove the bolt to remove the clamp from the valve body ASSY.
(3) Disconnect the wiring harness from the clamp.

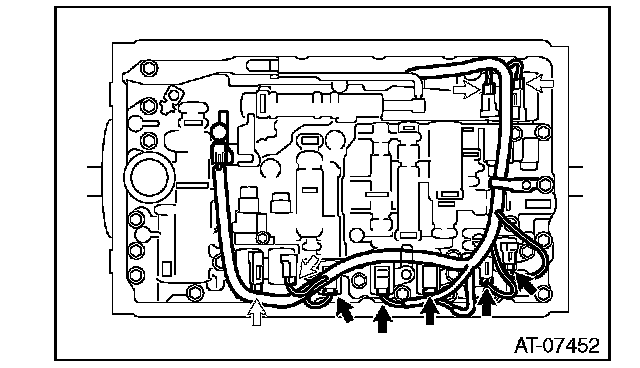

(4) Disconnect 9 connectors from each solenoid valve and disconnect the transmission wire from the transmission valve body ASSY.

NOTE:
Use a thin-tipped flat tip screwdriver for the connector indicated by the white arrow to disconnect the control solenoid connector.





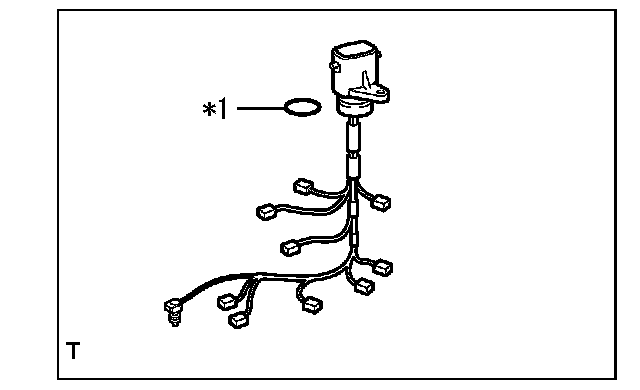

5. Removal of transmission wire
(1) Disconnect the transmission wire connector.

NOTE:

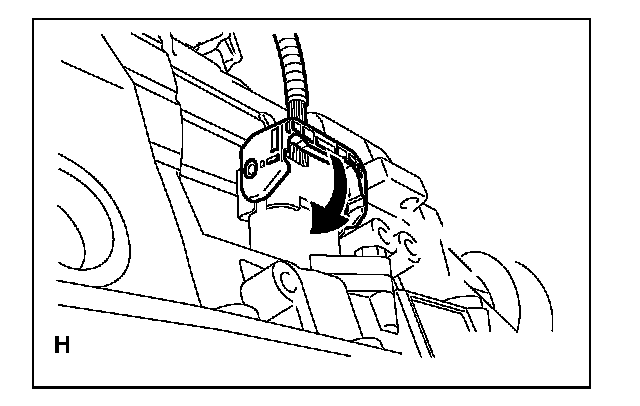

Release the claw and tilt the lever downward to disconnect the connector of the transmission wire.

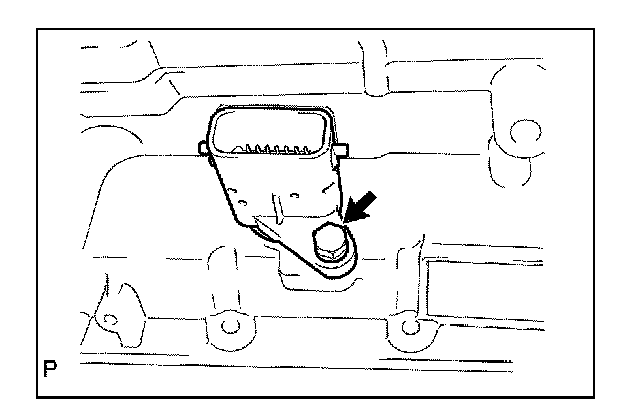

(2) Remove the bolt and pull out the transmission wire from the transmission valve body ASSY.





(3) Remove the O-ring from the transmission wire connector.

Captions in illustration
