Wiring Harness: Testing and Inspection

Unit inspection





1. Transmission wire (oil temperature sensor) check

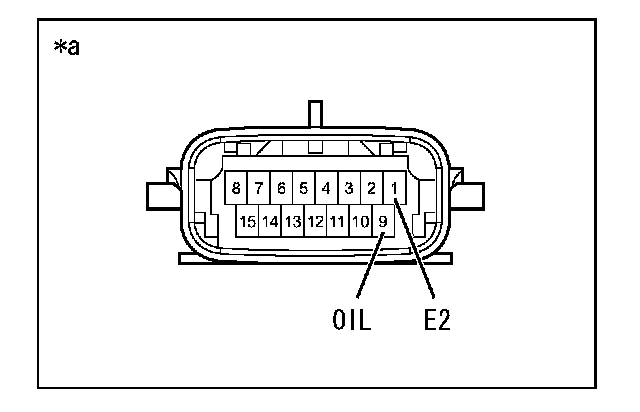

(1) Measure the resistance between terminals.

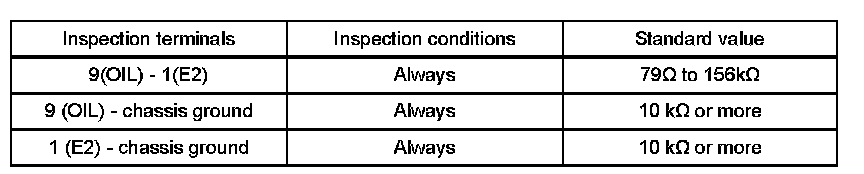

Resistance

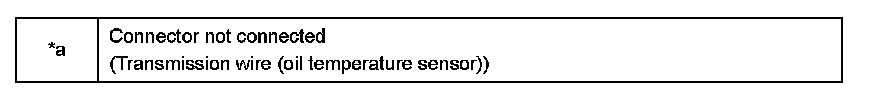

Captions in illustration





NOTE:

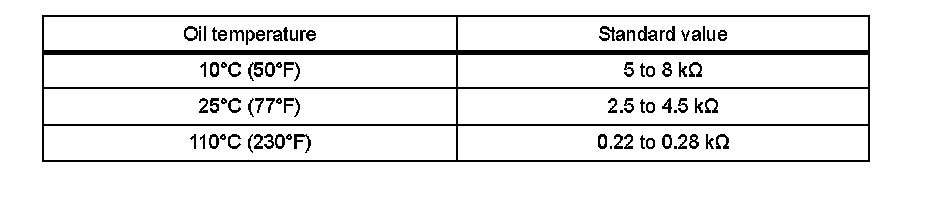

If the resistance is out of the oil temperature range in the table below, the handling performance of the vehicle may be degraded.

Resistance
