Removal
Removal1. Removal of rear differential carrier ASSY
2. Removal of exhaust tail pipe ASSY

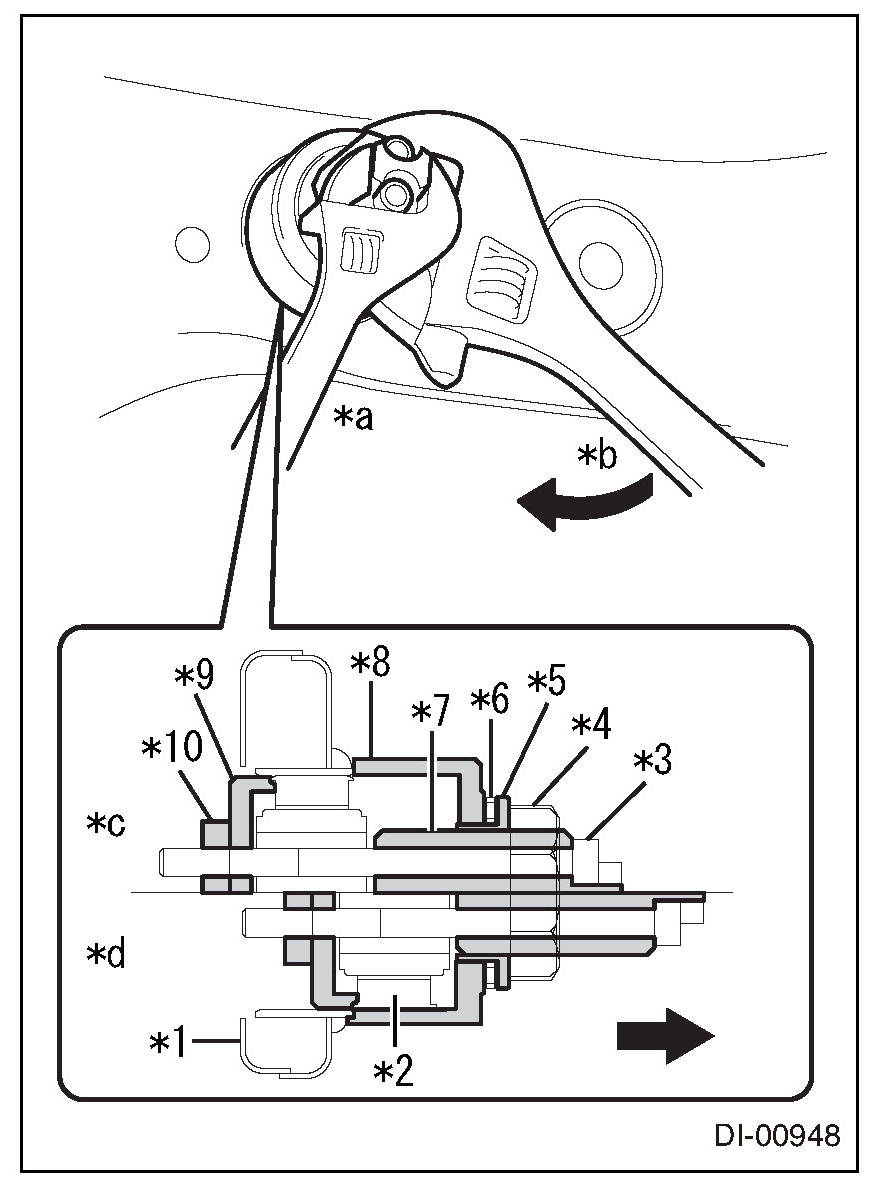

3. Removal of stabilizer bar RR
4. Removal of rear differential mount cushion NO. 1
(1) Using the SST, remove the rear differential mount cushion NO. 1.
SST 41399CA050 (41399CA060, 41399CA070, 41399CA100, 41399CA110, 41399CA120, 41399CA130, 41399CA140, 41399CA150)
CAUTION:
^ Always make sure that the SST fits the periphery of the rear suspension member cylinder and is not tilted.
^ Do not allow the SST to ride on the weld beads on the cylinder's outer periphery.

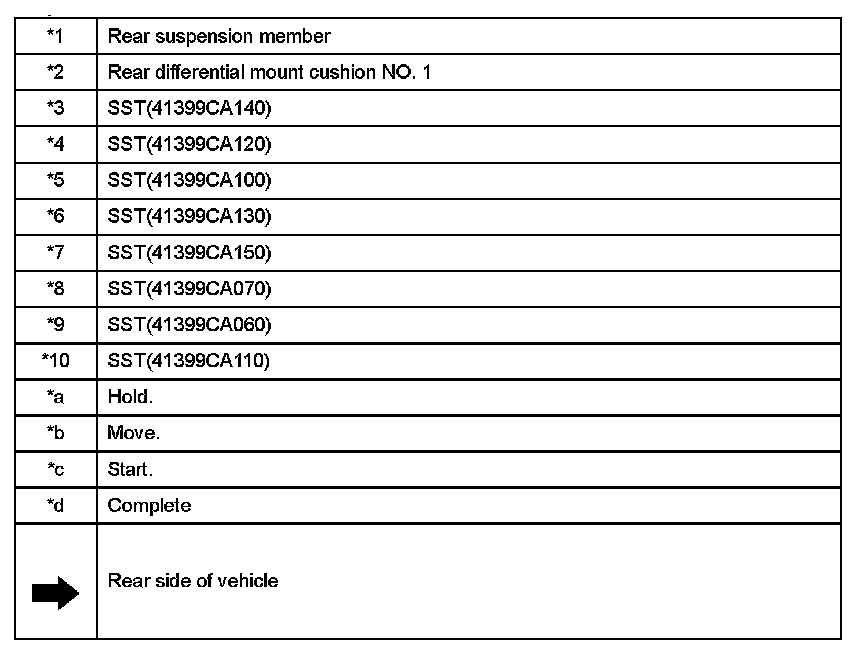

Captions in illustration

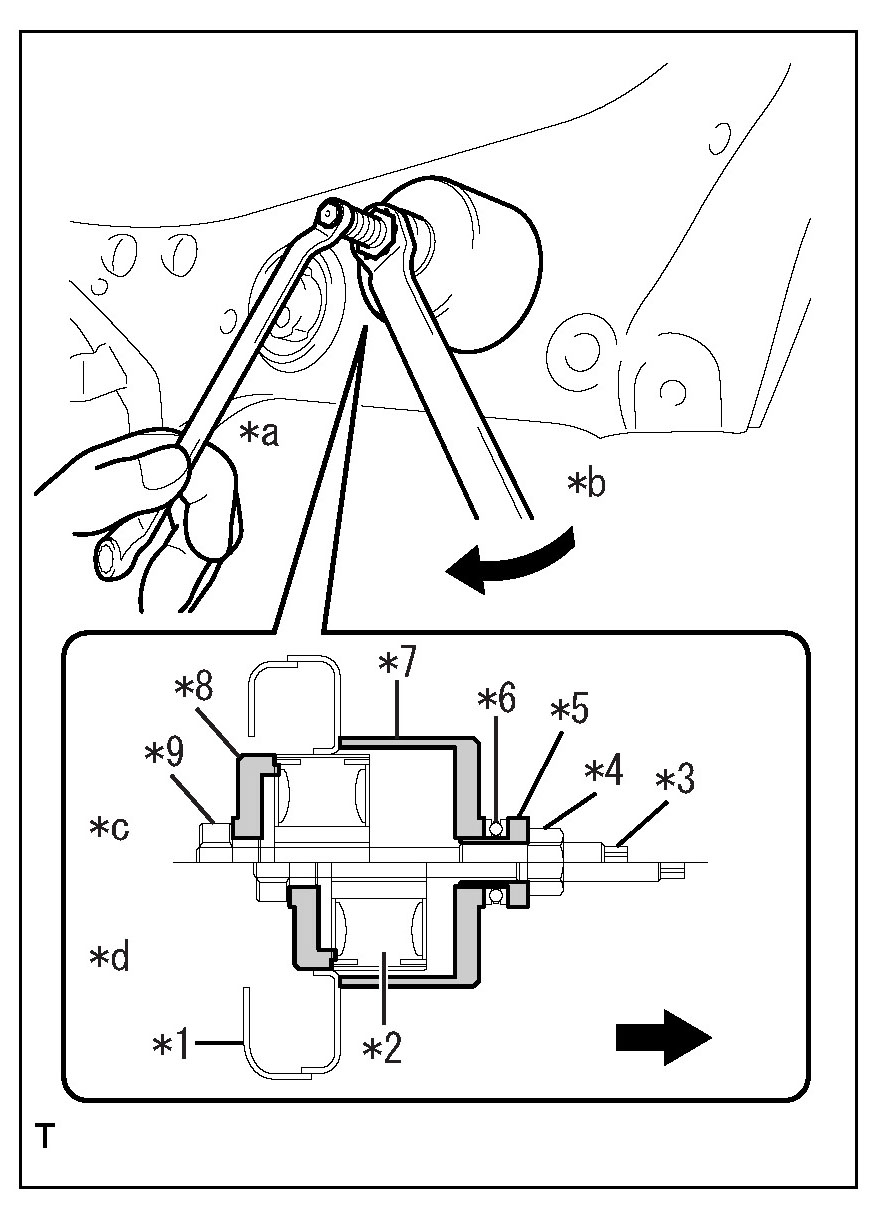

5. Removal of rear differential mount cushion NO. 2
(1) Using the SST, remove the rear differential mount cushion NO. 2.
SST 41399CA000 (41399CA010, 41399CA020, 41399FG050, 41399FG061, 41399FG070, 41399FG080, 41399FG091)

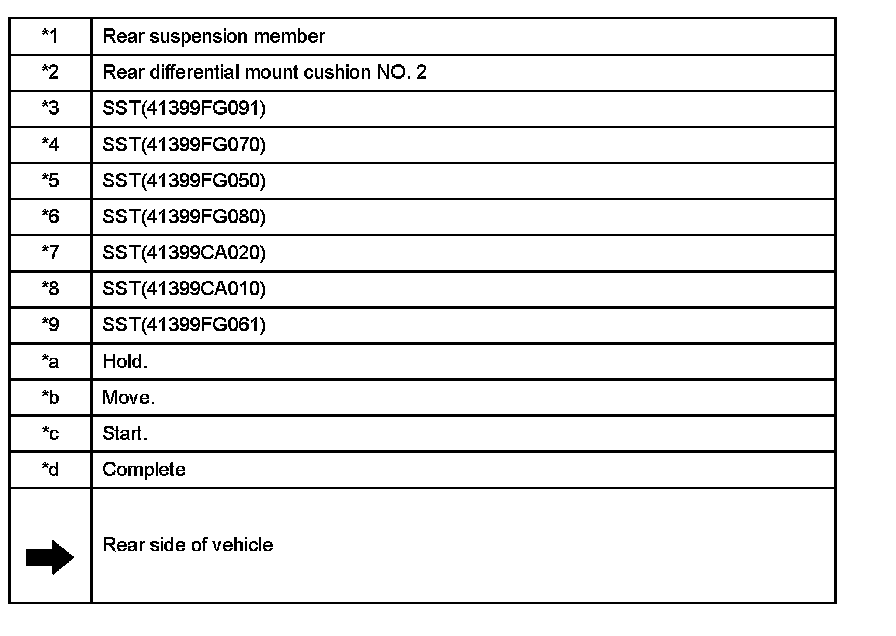

Captions in illustration
