Keyfob Battery and Function Circuit Check

Keyfob Battery and Function Circuit Check

Description
The following functions are available when having and carrying electronic ID.
- Door lock/unlock
- Panic alarm
Remote control entry function and panic alarm function are available when operating the remote buttons.

Component Function Check

Step 1:

Diagnosis Procedure

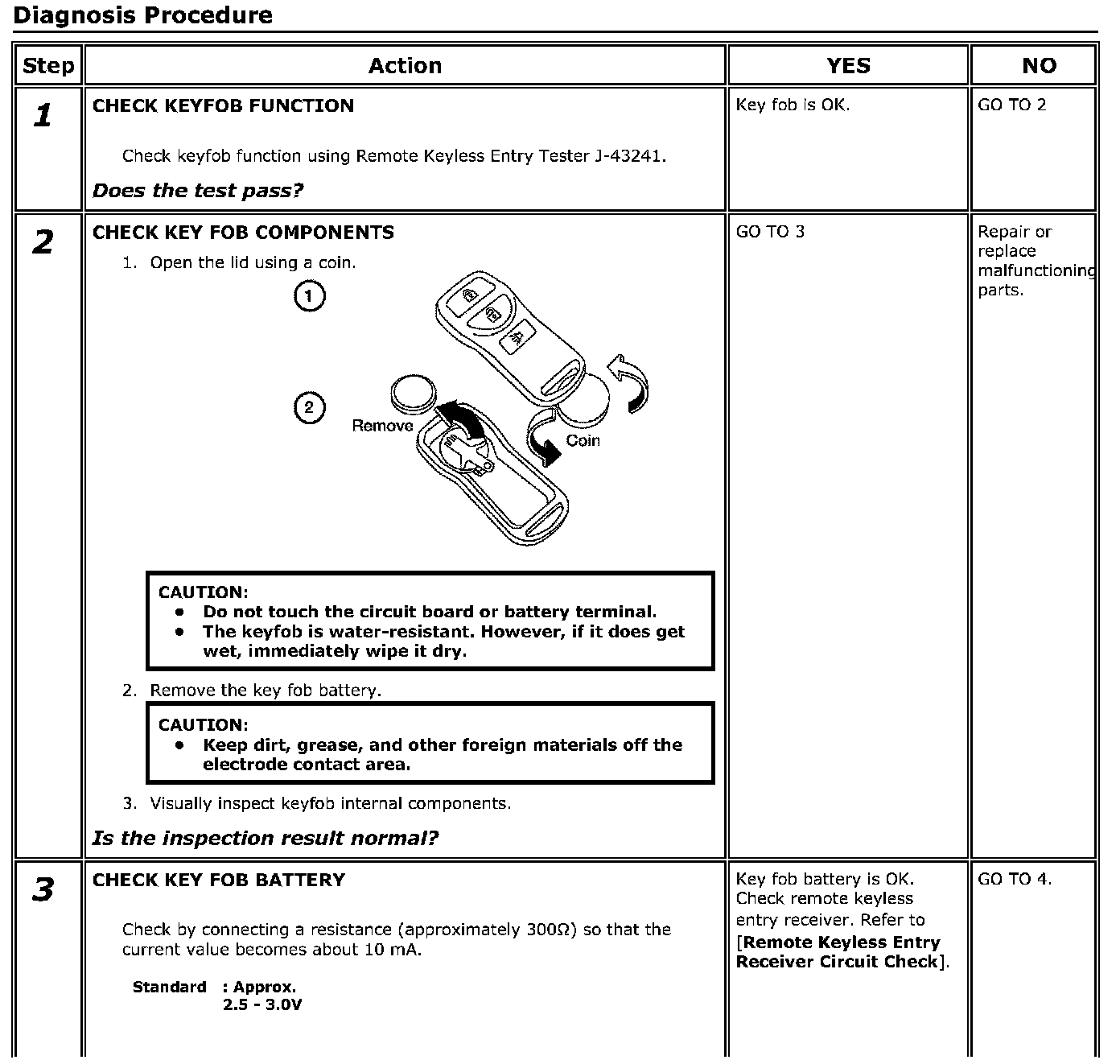

Step 1-3:

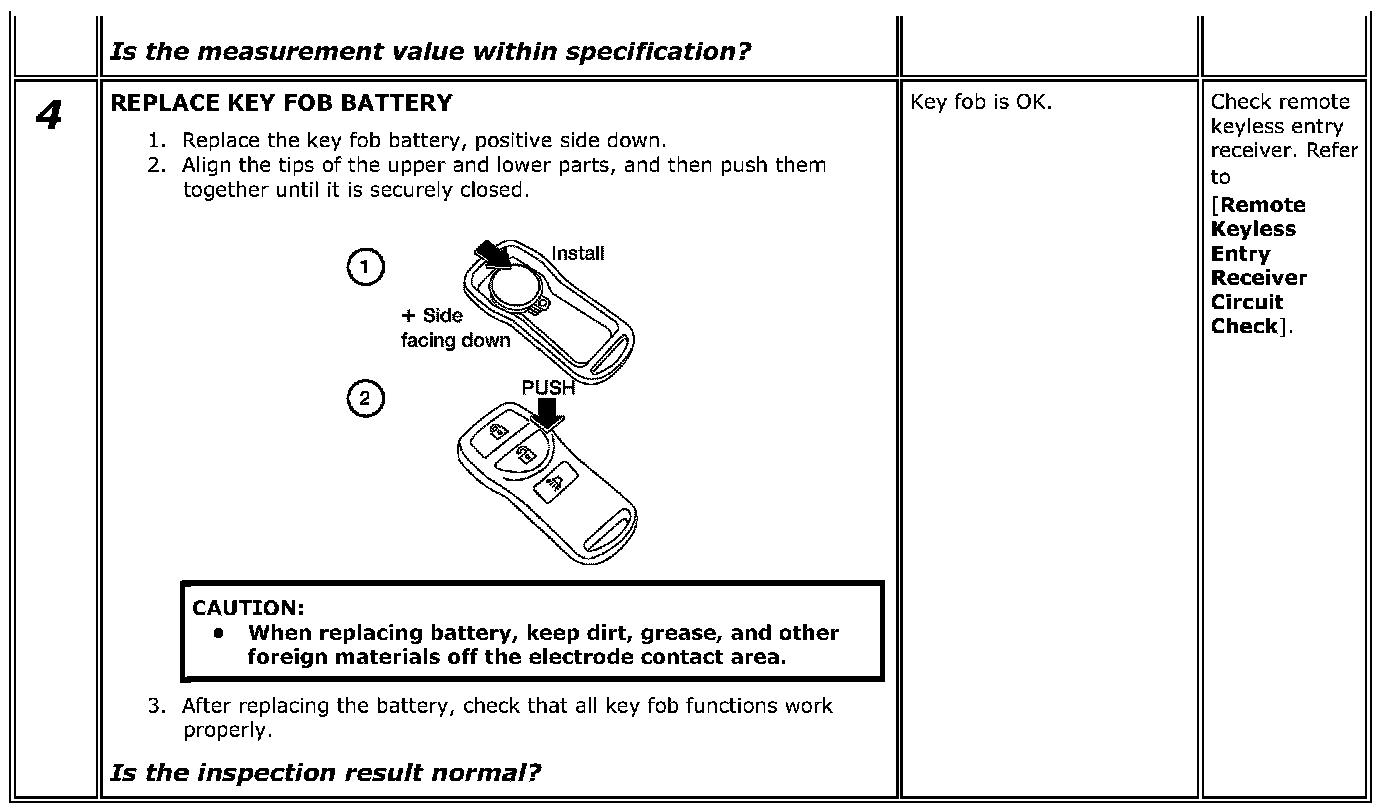

Step 3 (Continued)-4:
